KRJ-SM015NL RJ45 Socket Patch Network Interface Integrated With 100M Network Transformer Communication Interface
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | Negotiable | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 7-14days |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000pcs per day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYDCB421188AB1WDB |
|
Detail Information |
|||
| Product Name: | Low Profile RJ45 | Connector Type: | Jack |
|---|---|---|---|
| Application: | PC,router,usb Hub Network Rj45 Etc. | Gender: | Female |
| Transformer: | RJ45 Without Transformer | Height Profile: | Extra Low Profile |
| High Light: | 8p8c rj45 modular jack,Female rj45 smt connector,Low Profile RJ45 Single Port |
||
Product Description
RJ45 Single port 8p8c With LED Without transformer Socket .
Application
NIC, HUB, SWITCH, ROUTER, BRIDGE,WORK
Paramters
| ATTRIBUTE | ATTRIBUTE VALUE |
| TEMPERATURE | -40 to +85℃ |
| GROUNDING OPTIONS | Panel Ground and PCB Ground |
| SHIELD PLATING MATERIAL | NICKEL |
| SHIELD EMI TABS | YES |
| SHIELD | METAL SHIELD |
| ROHS COMPLIANT | YES |
| PANEL STOP | NONE |
| PCB MOUNT ANGLE | SIDE ENTRY |
| PACKAGE | DIP |
| CONNECTOR & CONTACT TERMINAATES TO | Printed Circuit Board |
| NUMBER OF PORTS | 1X1 |
| NUMBER OF CONTACTS | 8 |
| LED OPTION | L-Yellow / R-Green |
| LATCH ORIENTATION | LATCH DOWN |
| HOUSING MATERIAL | LCP UL94V-0 |
| CONTACT MATING AREA PLATING | GOLD FLASH PLATING |
| CONNECTOR TYPE | RJ45 |
| CONNECTOR MATERIAL COLOR | BLACK |
Drawing

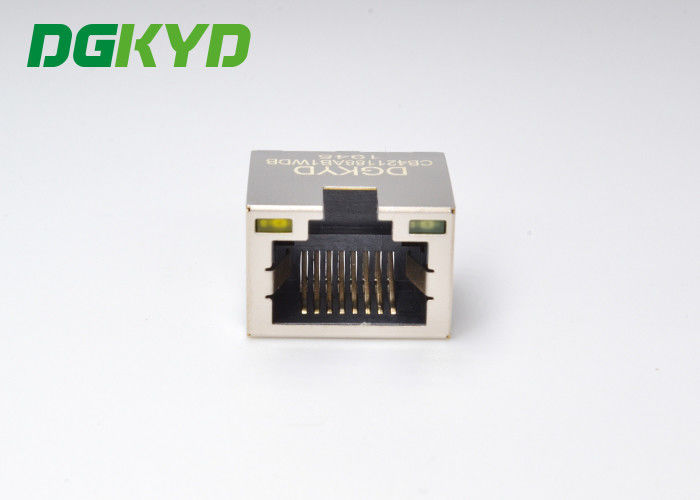

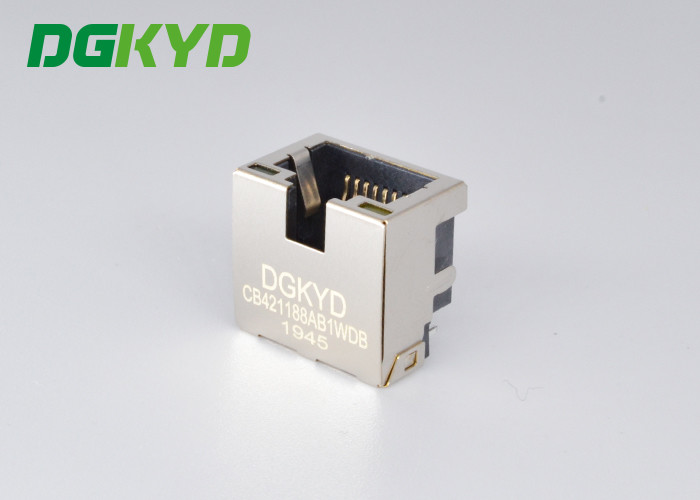

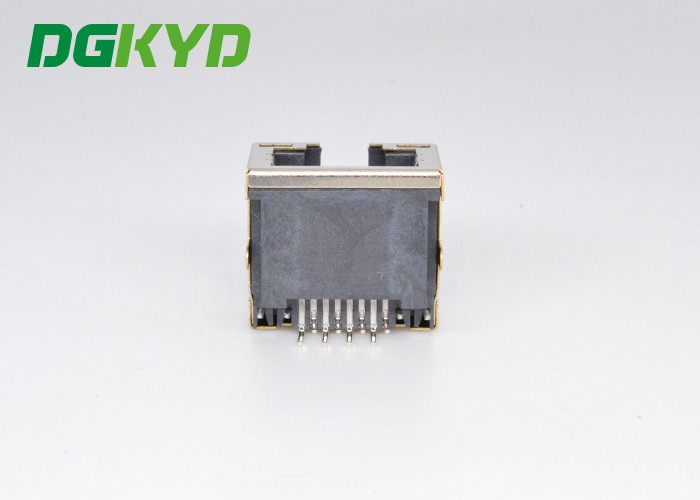

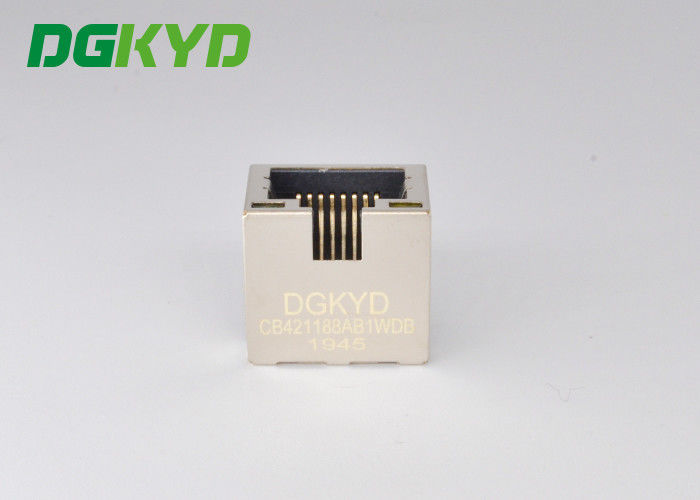

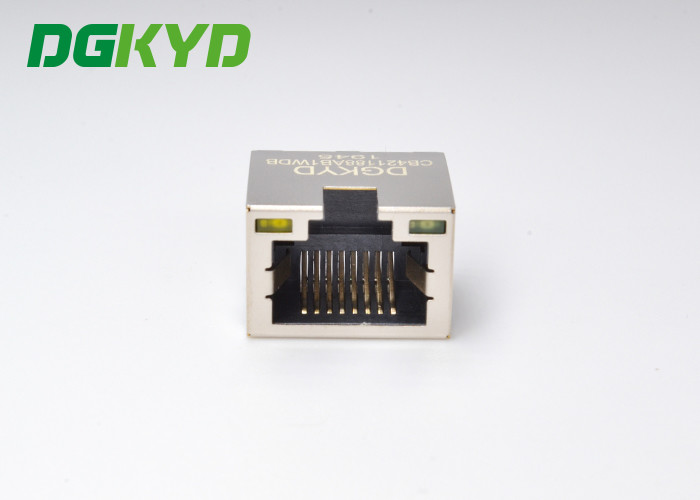

Pictures
Our Service
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
