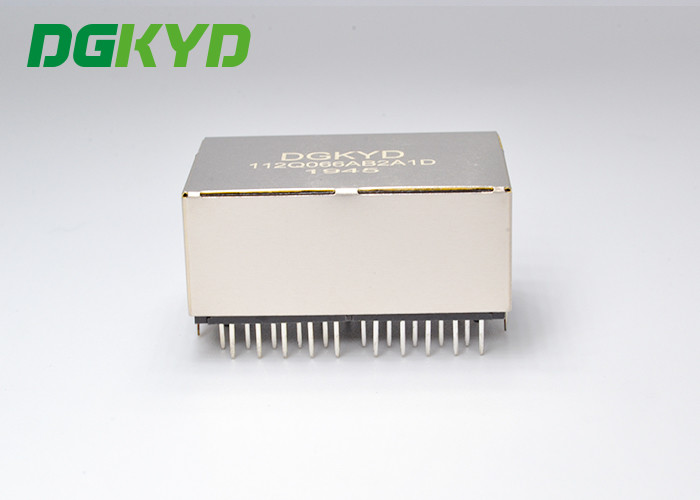

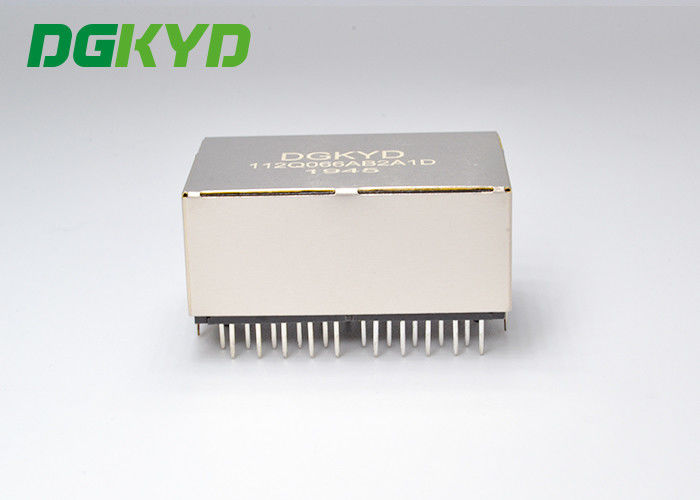

Transformer Connector Modular Black Plastic Housing 1000M 2 Port RJ45

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : 1080pcs/carton Delivery Time : 7-14days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 60000pcs per day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD112Q066AB2A1D

Detail Information

Product Name: 1000M 2 Port RJ45 RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP
Number Of Interfaces: Double Port Housing Material: PBT Black
LED: Green/Yellow PCB Mounting Style : Through Hole
High Light:

dual port rj45

,

dual rj45 connector

,

Plastic Housing 2 Port RJ45

Product Description

1000M 2 Port RJ45 Transformer Connector Modular Black Plastic Housing



Descriptions:

  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression



Paramters



Part Number DGKYD112Q066AB2A1D Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter With internal Filter LED Option With LED
LED Color L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 1000M BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Double port Number of Positions  10
Jack Configuration 1X 2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6/15/30/50 Microinch Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Drawing



Transformer Connector Modular Black Plastic Housing 1000M 2 Port RJ45 0

Transformer Connector Modular Black Plastic Housing 1000M 2 Port RJ45 1

Transformer Connector Modular Black Plastic Housing 1000M 2 Port RJ45 2





Pictures



Transformer Connector Modular Black Plastic Housing 1000M 2 Port RJ45 3



Our Service



World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
