Gigabit Ethernet Modular Jack 2 Port RJ45 Connector 2x1 Offset St / Jk With Leds
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
Minimum Order Quantity : | Negotiable | Price : | Negotiable |
---|---|---|---|
Packaging Details : | 1080pcs/carton | Delivery Time : | 7-14days |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Supply Ability : | 60000pcs per day |
Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
---|---|---|---|
Certification: | RoHS/CE/FCC/CE/ISO9001/ISO14001 | Model Number: | DGKYD112B002AB2A1D3DJ |
Detail Information |
|||
Product Name: | 2 Port RJ45 | Turn Ratio: | 1CT : 1 |
---|---|---|---|
Mount Orientation: | Right Angle | Housing Material: | PBT Black |
LED: | L-Green/R-Yellow | Shield Material: | Copper Alloy Preplated With Nickel |
Highlight: | dual port rj45 connector,dual rj45 connector,Modular Jack 2 Port RJ45 |
Product Description
100M BASE-T 1x2 RJ45 Network connectors Jack DGKYD112B002AB2A1D3DJ
Introduction
Options: 1x2,for 10/100/1000 Base-TX
Available with and without LEDs
Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP
Paramters
Part Number | DGKYD112B002AB2A1D3DJ | Brand | DGKYD/OEM/ODM |
Product Type | Connector-Modular | Connector Style | Jack |
Jack Type | RJ45 | Connector Type | Modular Jack |
Latch Style | Standard | Latch | TAB-DOWN |
Filter | With internal Filter | LED Option | With LED |
LED Color | L-Green/R-Yellow | Panel Stops | Without Panel Stops |
Shielded | Yes | Applies To | Printed Circuit Board |
Performance Speed | 100M BASE-T | Grounding Options | Panel Ground and PCB Ground |
Port Configuration | Double port | Number of Positions | 8 |
Jack Configuration | 1X 2 | Terminals per Port | 8 |
Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
Contact Mating Area Plating Material | Gold 6/15/30/50 Microinch | Contact Base Material | Phosphor Bronze |
Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
Housing Material | PBT Polyester | Housing Color | Black |
Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Drawing

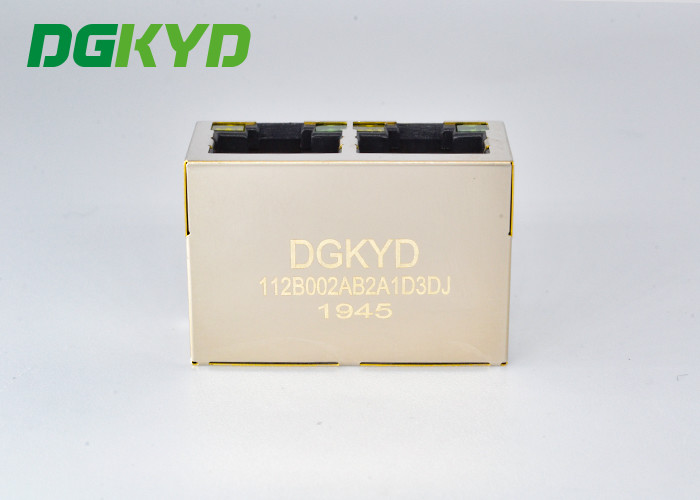

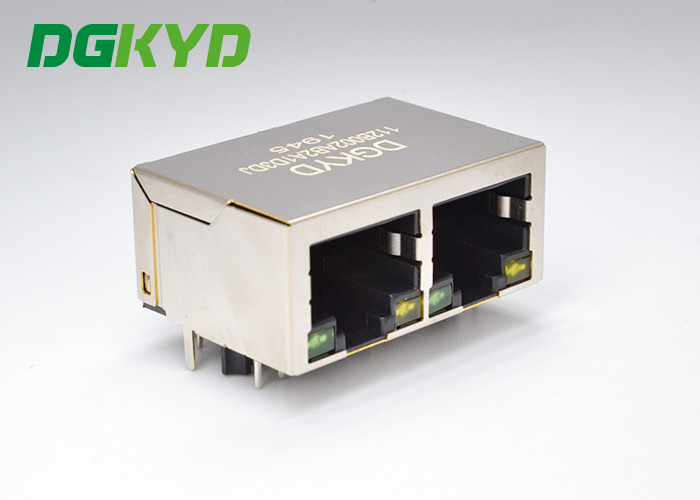

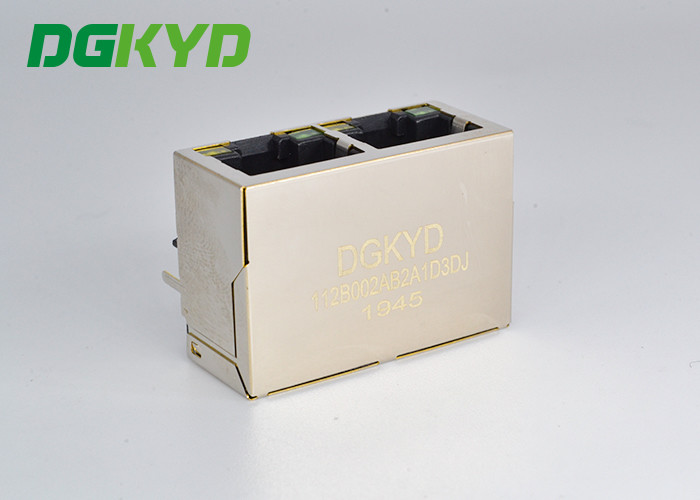

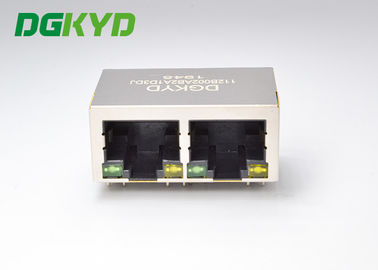

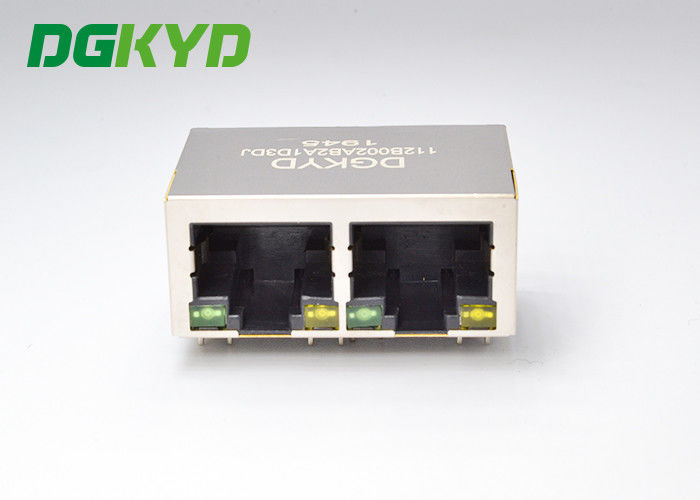

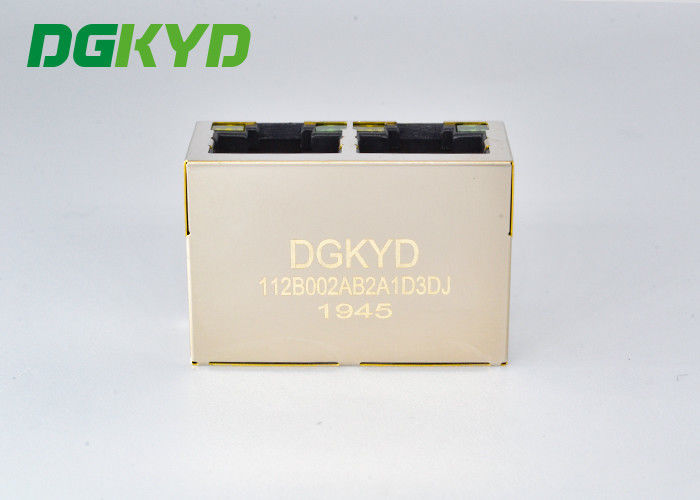

Pictures
