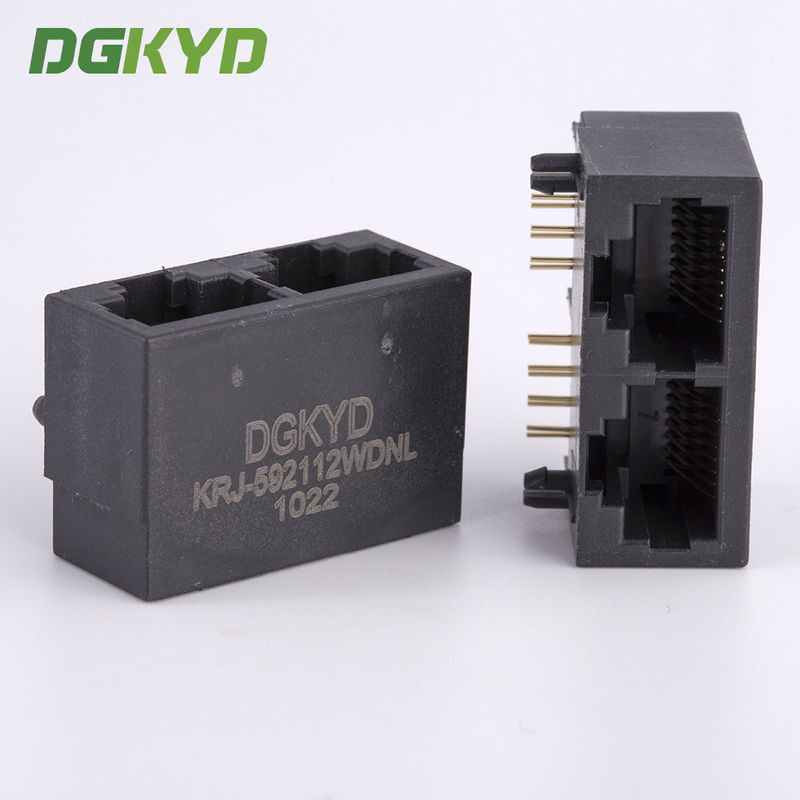

21.3mm Side Entry Tap Down 2 Port RJ45 Modular Jack Without Transformer

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-5921 1X2WDNL

Detail Information

Product Name: RJ45 Modular Jack Gender: Female
Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc Feature: Dual Port
OEM/ODM: Yes Type: RJ45
High Light:

dual port rj45 connector

,

dual port rj45

Product Description

90 Degree 2 Port rj45 network connector W / O Transformer Tap down Side Entry 21.3mm

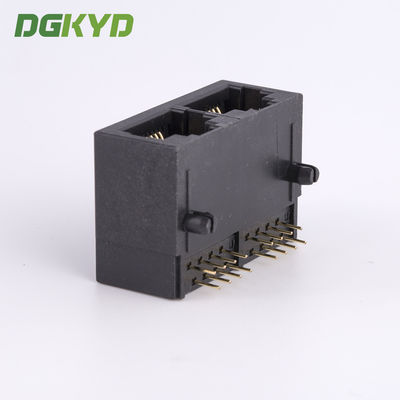

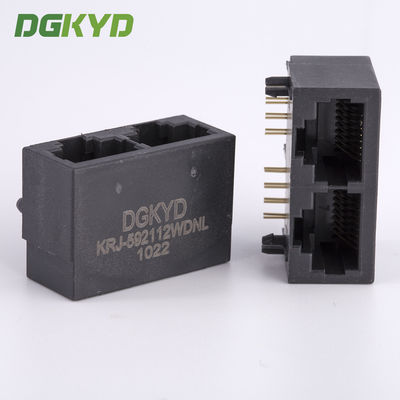

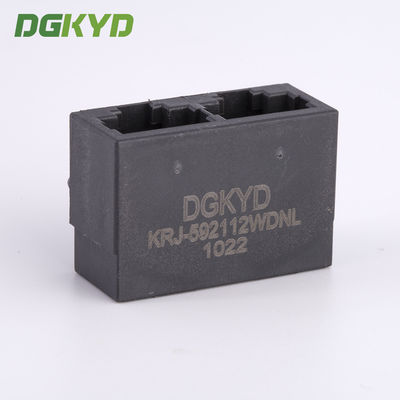

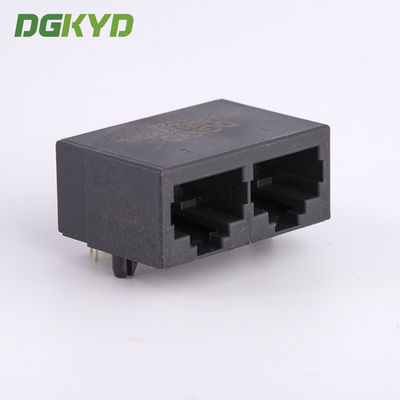

21.3mm Side Entry Tap Down 2 Port RJ45 Modular Jack Without Transformer 0

Applications:

• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication, MODEM,HomePNA,DSL/ADSL and so on.



Description:

  • 1x2 Double port rj45 connctor without transformer
  • Insertion Force:2.2KG.F.max
  • Retention Strength;7.7KG.Fmin between jack and plug
  • Durabbilith:600mating cycles min
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Shield:YES
  • Rohs compliant(GP)
  • Length:21.3mm

Material:

  1. Housing :ABS RESIN(UL94V-0),PBT(UL94V-0),PA66(UL94V-0),PA46(UL94V-0)optional
  2. Contact Wire:Diameter 0.45mm phosphor bronze gold   plating over nickel,0.35mm thickness phosphor bronze alloy selective gold plating over nickel

        3.Shield:0.20~0.25mm thickness brass with tin plated

        4.Gold Plating :3u inch ,6u inch,15u inch,30u inch,50u inch



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
