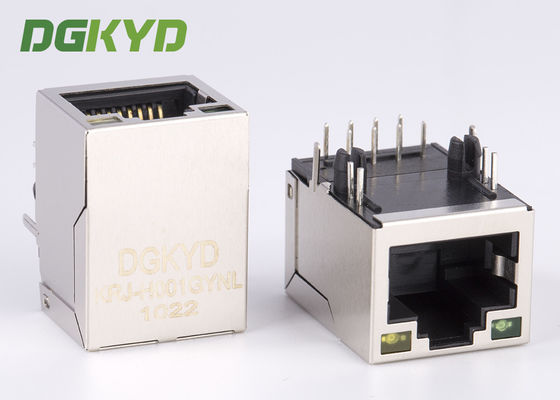

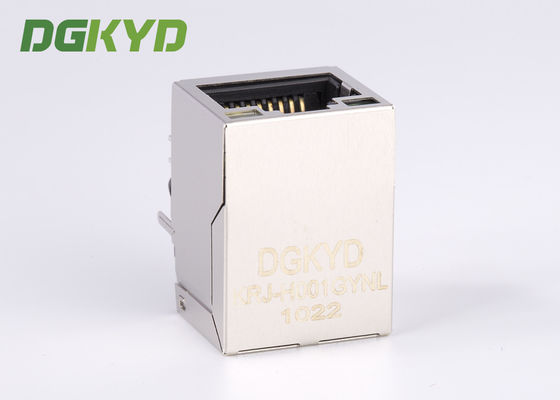

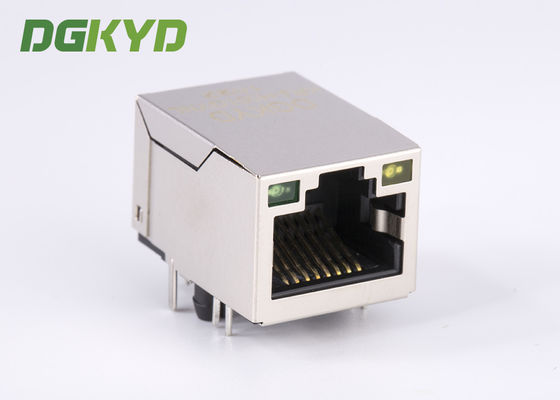

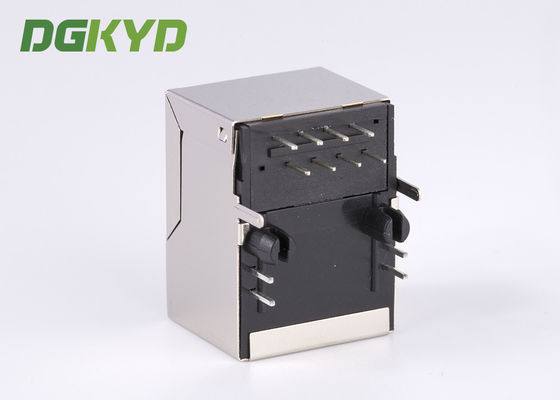

Shield RJ45 Modular Jack female magnetic network port with Lan transformer

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-H001GYNL

Detail Information

Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc Speed: Cat 5/5e
OEM/ODM: Yes Type: RJ45
Gender: Female Product Name: RJ45 Modular Jack
High Light:

rj45 connector shielded

,

rj45 network jack

Product Description

Shield RJ45 Modular Jack / Network Port Connectors With Lan Transformer

  • 10/100Base-Tx RJ45 single port 1X1 Side Entry (Right Angle) without LED
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement

Shield RJ45 Modular Jack female magnetic network port with Lan transformer 0Shield RJ45 Modular Jack female magnetic network port with Lan transformer 1Shield RJ45 Modular Jack female magnetic network port with Lan transformer 2



Electrical Specifications at 25℃

.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH  @100KHZ 100Mv 8mA  DC



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
