10/100BASE Tab Down Transformer RJ45 Network Connector with Led

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-1041EGYZNL

Detail Information

Performance Category: CAT5 Entry Loaction: Side
Connector Height: 13.6mm Connector Length: 21.3mm
High Light:

panel mount rj45 connector

,

surface mount rj45 connector

Product Description

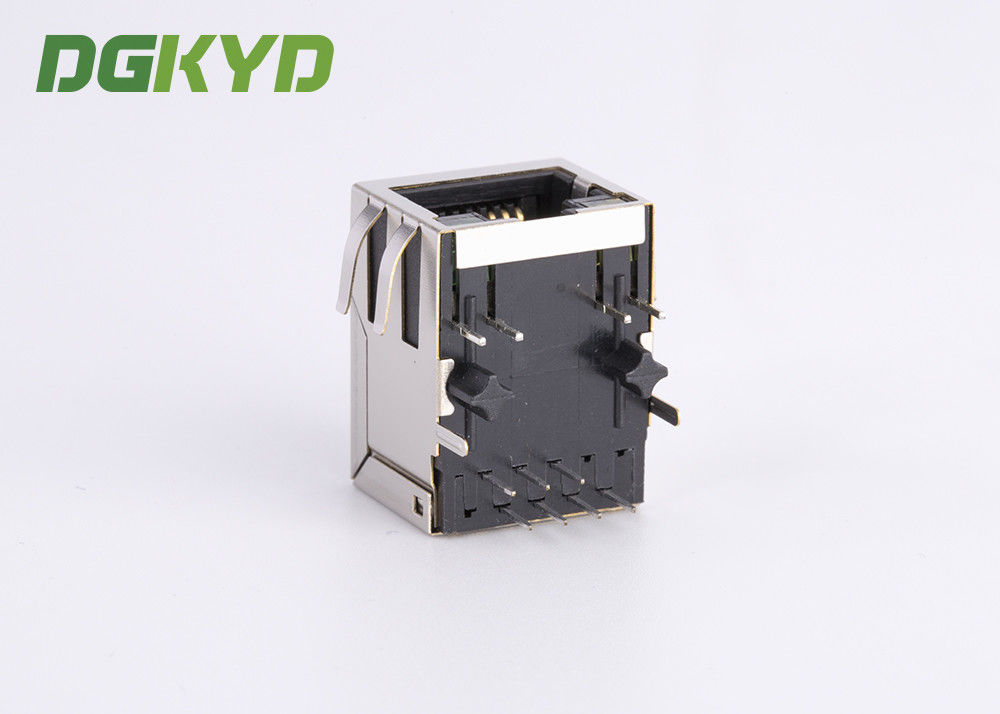

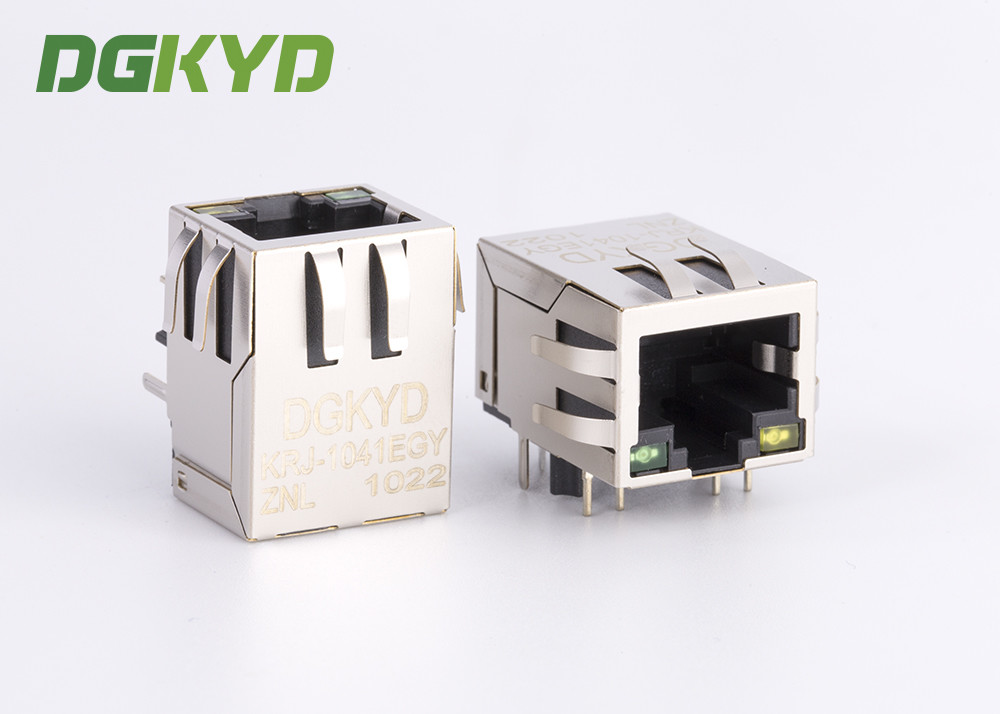

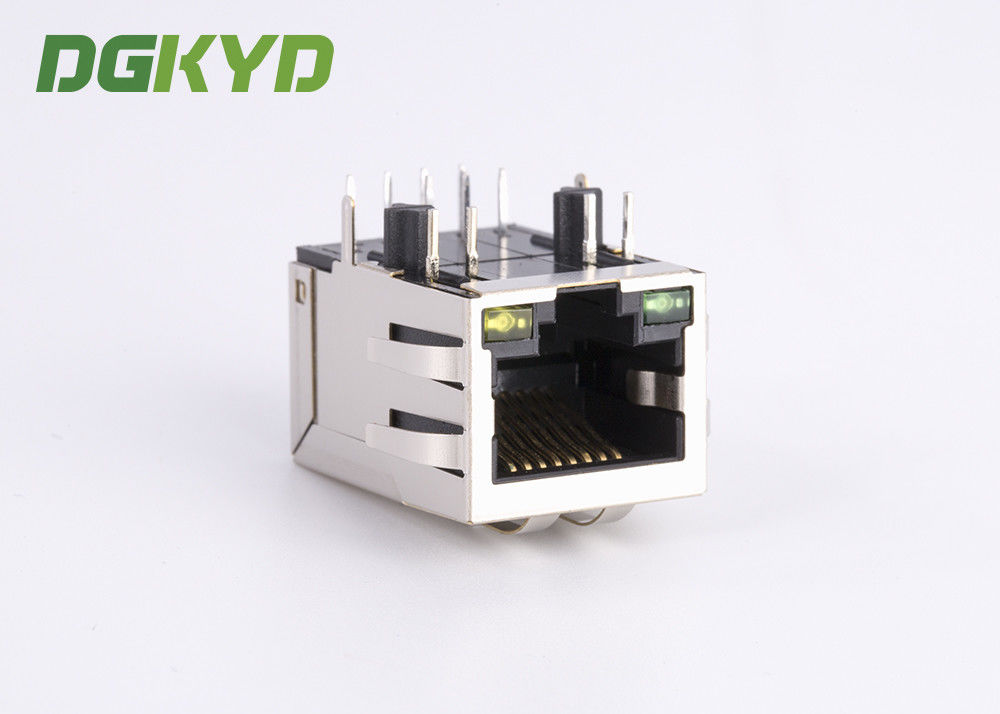

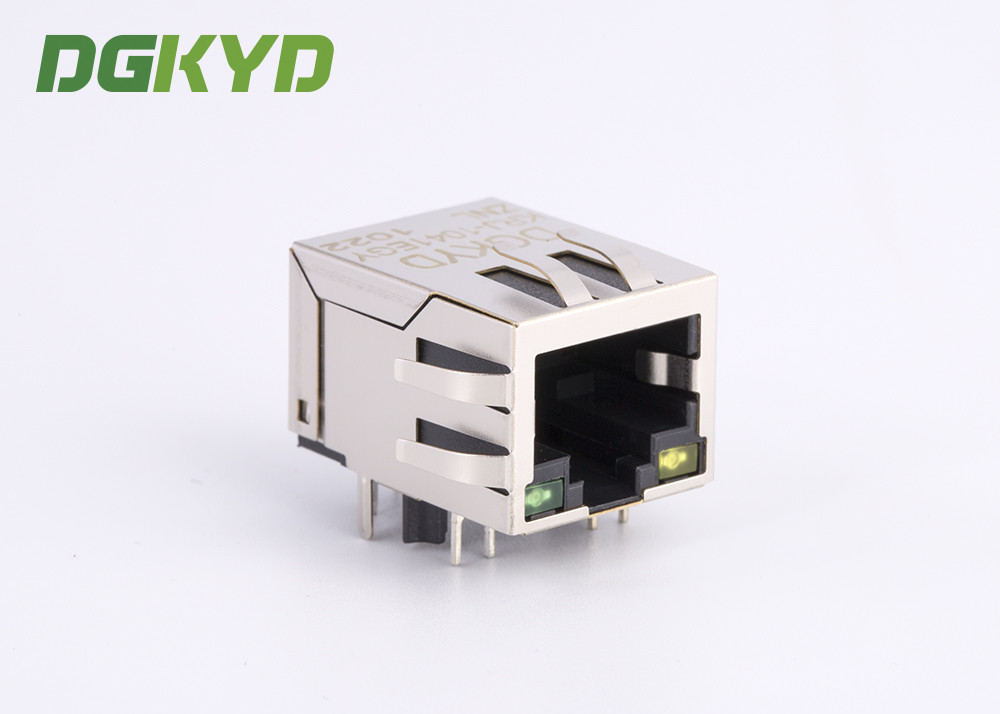

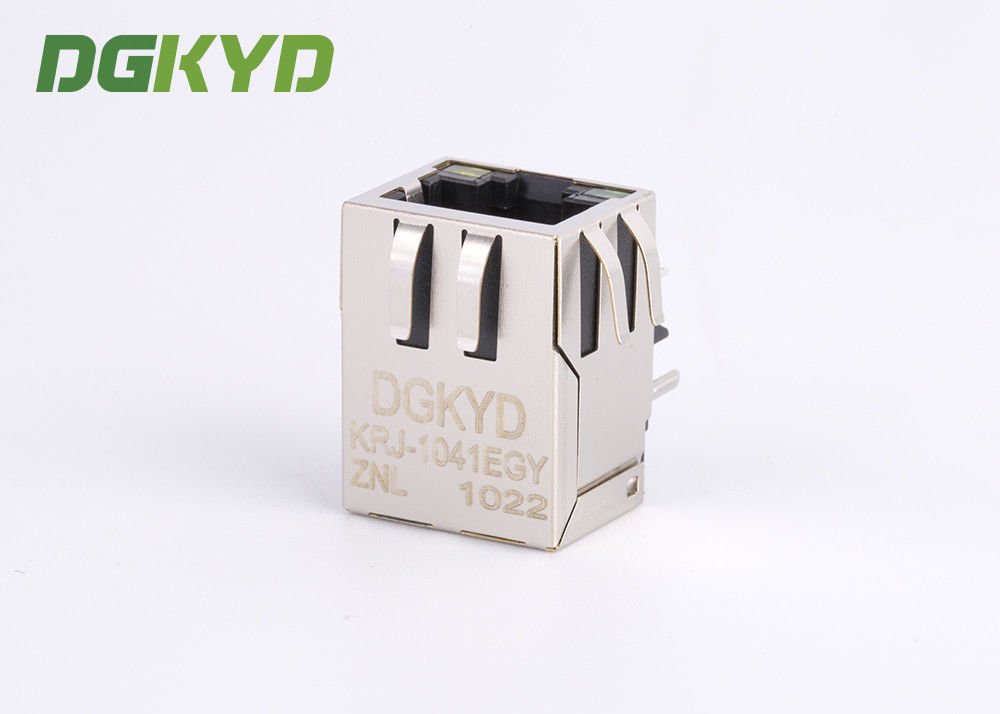

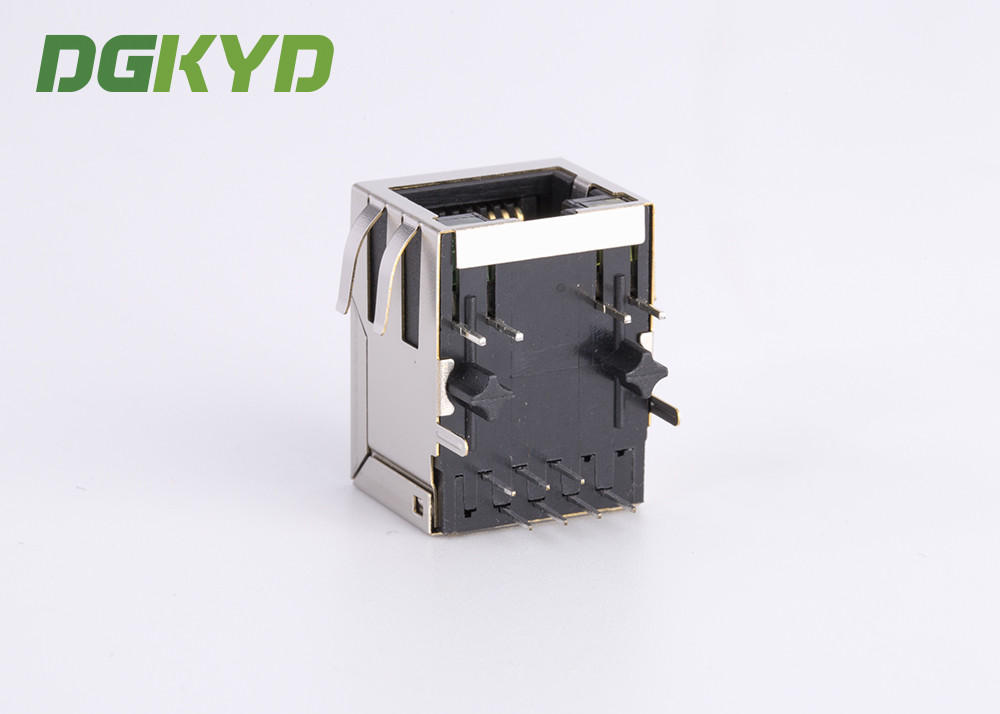

10/100BASE 1x1 Tab Down Transformer RJ45 Network Connector, Led  RJ45 Combo  plug



10/100BASE Tab Down Transformer RJ45 Network Connector with Led 010/100BASE Tab Down Transformer RJ45 Network Connector with Led 110/100BASE Tab Down Transformer RJ45 Network Connector with Led 2



Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Characterization Description:

1. RJ45 100 Transformer Jack With Transformer Impedance Resistor/High Voltage Capacitor.

2. Size Same As RJ-45 Modular Jack To Save PCB Space.

3. Reduce EMI Radiation, Improve EMI Performance.

4. Designed For Network Interface Card Application.

5. Designed To Meet IEEE 802.3u Requirement.



Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,

IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,

DSL/ADSL and so on.
