1000 megabit 1 X 4 multi Port Female RJ45 Connector with transformer for ethernet switch

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-401QGYENL

Detail Information

Shield RJ45: Yes No.Port: RJ45 Single Port
Product Name: RJ45 With Transformer Type: RJ45 Female
Housing: Phenolic, PBT Black (UL94V-0) Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS
High Light:

multi rj45 connector

,

plug modular rj45

Product Description

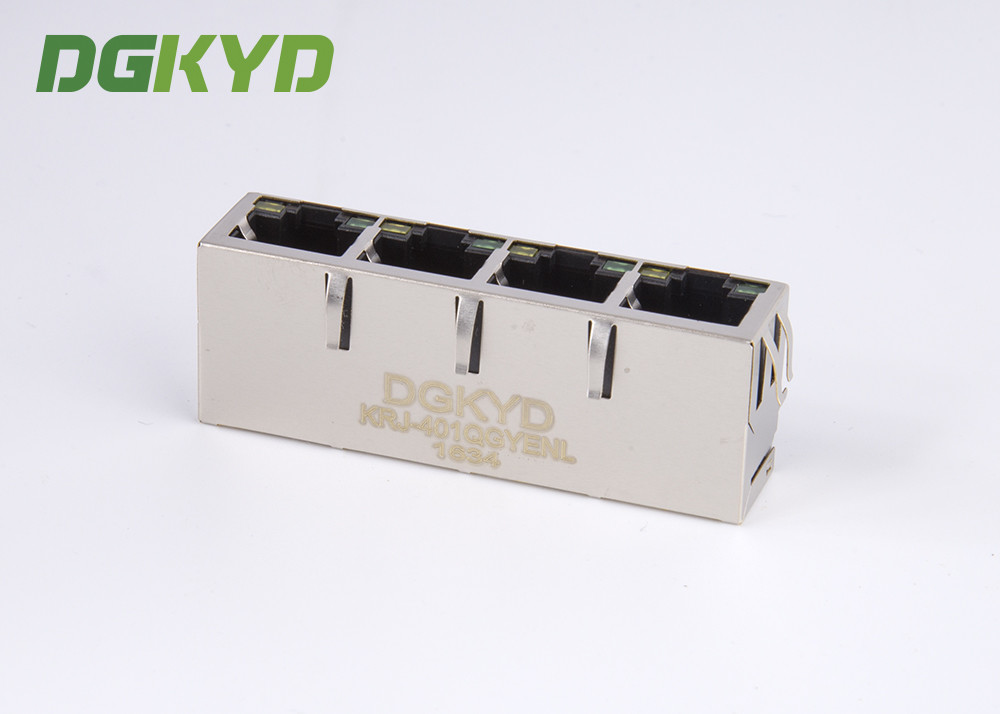

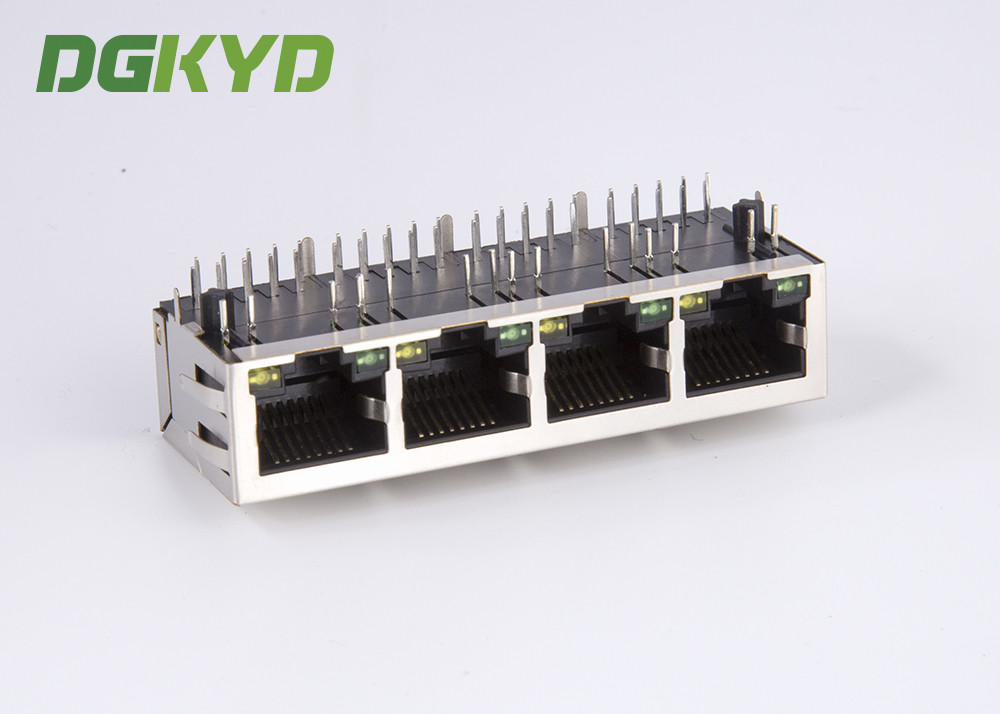

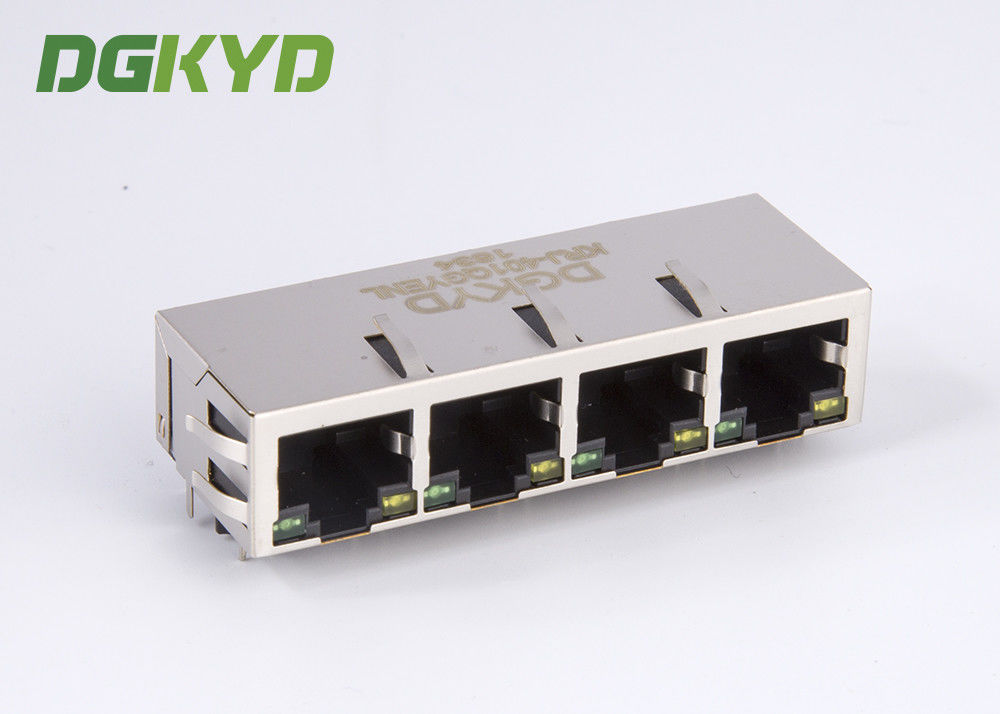

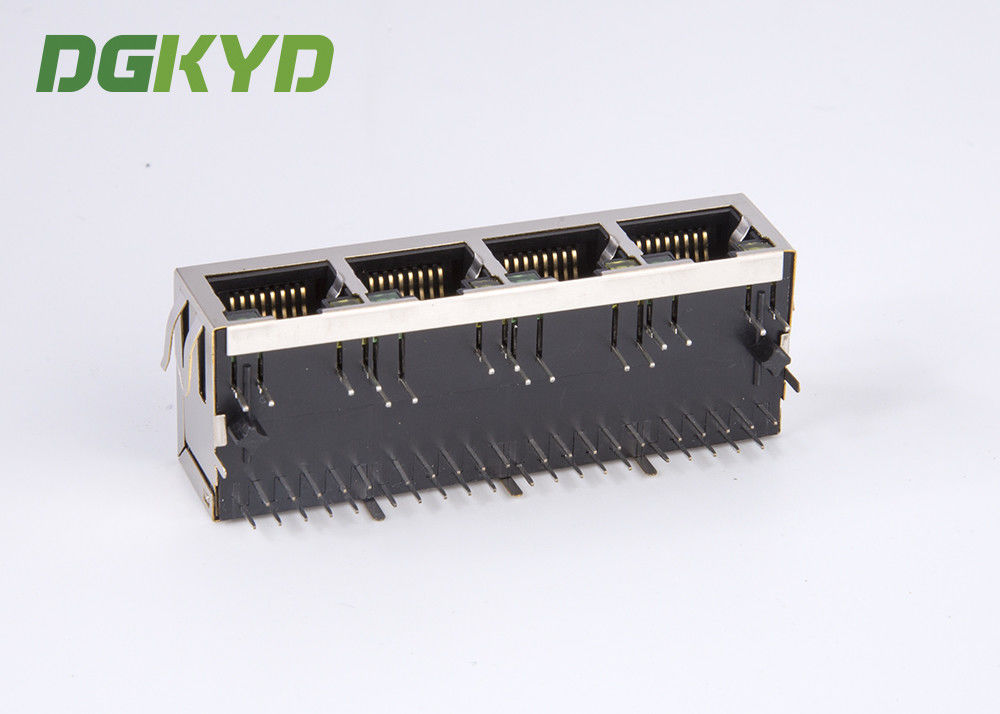

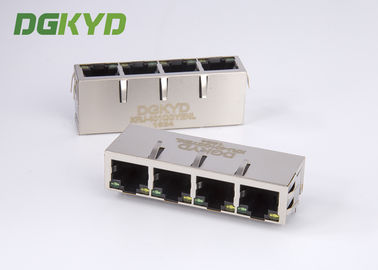

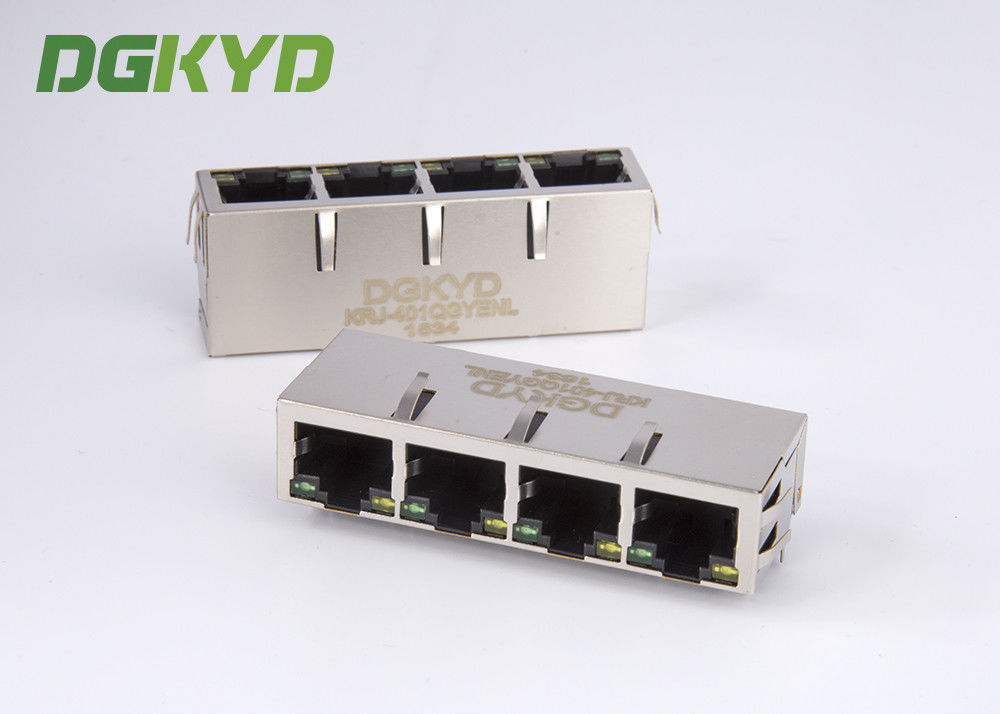

1 X 4 Port Female RJ45 Connector 10 / 100 / 1000base-TX Ethernet





Part number:KRJ-401QGYENL



  • 10/100/1000Base-Tx RJ45 4 port 1X4 Side Entry (Right Angle) with LEDS with female
  • 4 port 1X4 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:10
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:YES
  • EMI fingers:YES
  • LEFT LED:Green,RIGHT LED:Yellow
  • Usage:KRJ-401QGYENL

1000 megabit 1 X 4 multi Port Female RJ45 Connector with transformer for ethernet switch 01000 megabit 1 X 4 multi Port Female RJ45 Connector with transformer for ethernet switch 11000 megabit 1 X 4 multi Port Female RJ45 Connector with transformer for ethernet switch 2



DGKYD’s Ethernet transformers and integrated RJ45’s are available in 10BASE-T, 10/100BASE-T, Gigabit, and 10G speeds. The SMD Ethernet transformers utilize DGKYD’s patented open frame construction offering a robust solution for any network application. DGKYD also offers a full line of data communication common mode filters designed to meet the IEEE802.3 standards.
