Metal Shielded RJ45 PCB Connector SMT CAT5 Rj45 Magnetic Jack , G/Y LED RJ45 Ethernet port 100Mbps network transformer KRJ-SM002NL

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-SM002NL

Detail Information

LEDS/EMI Fingers: For Optional Feature: High Performance
RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP Application: Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices
Gender: Female Product Name: RJ45 Connector
Type: SMT Number Of Positions/Contacts: 8p8c (RJ45, Ethernet)
Gold Plating On Contact Pins: 6U Operating Temperature: -40°C~+85°C
Storage Temperature: -40°C~+85°C
Highlight:

100Mbps RJ45 PCB Connector

,

Metal Shielded RJ45 PCB Connector

,

SMT CAT5 Rj45 Magnetic Jack

Product Description

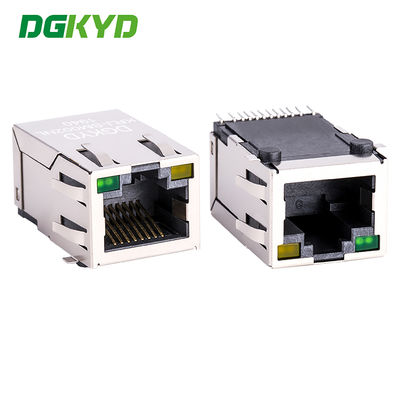

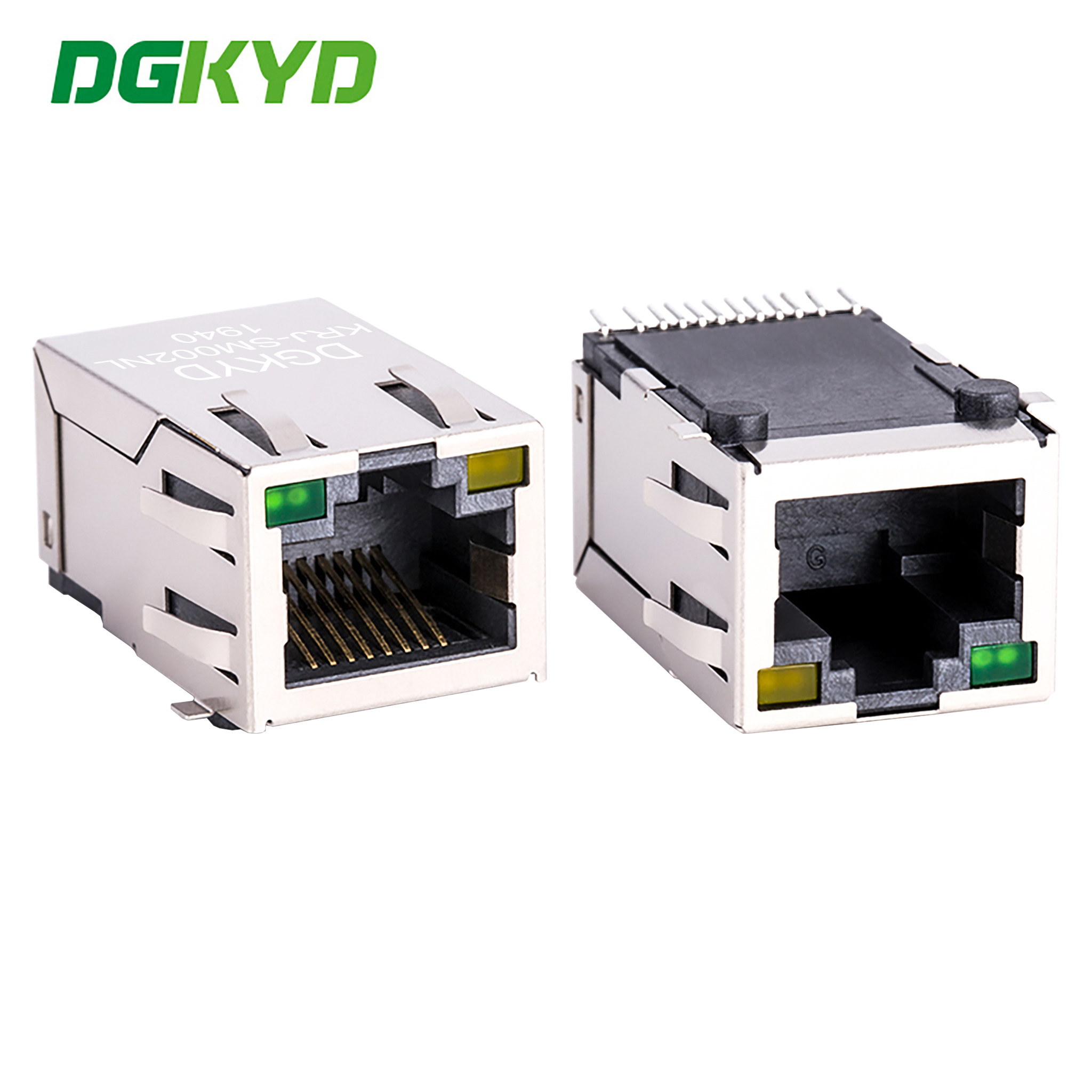

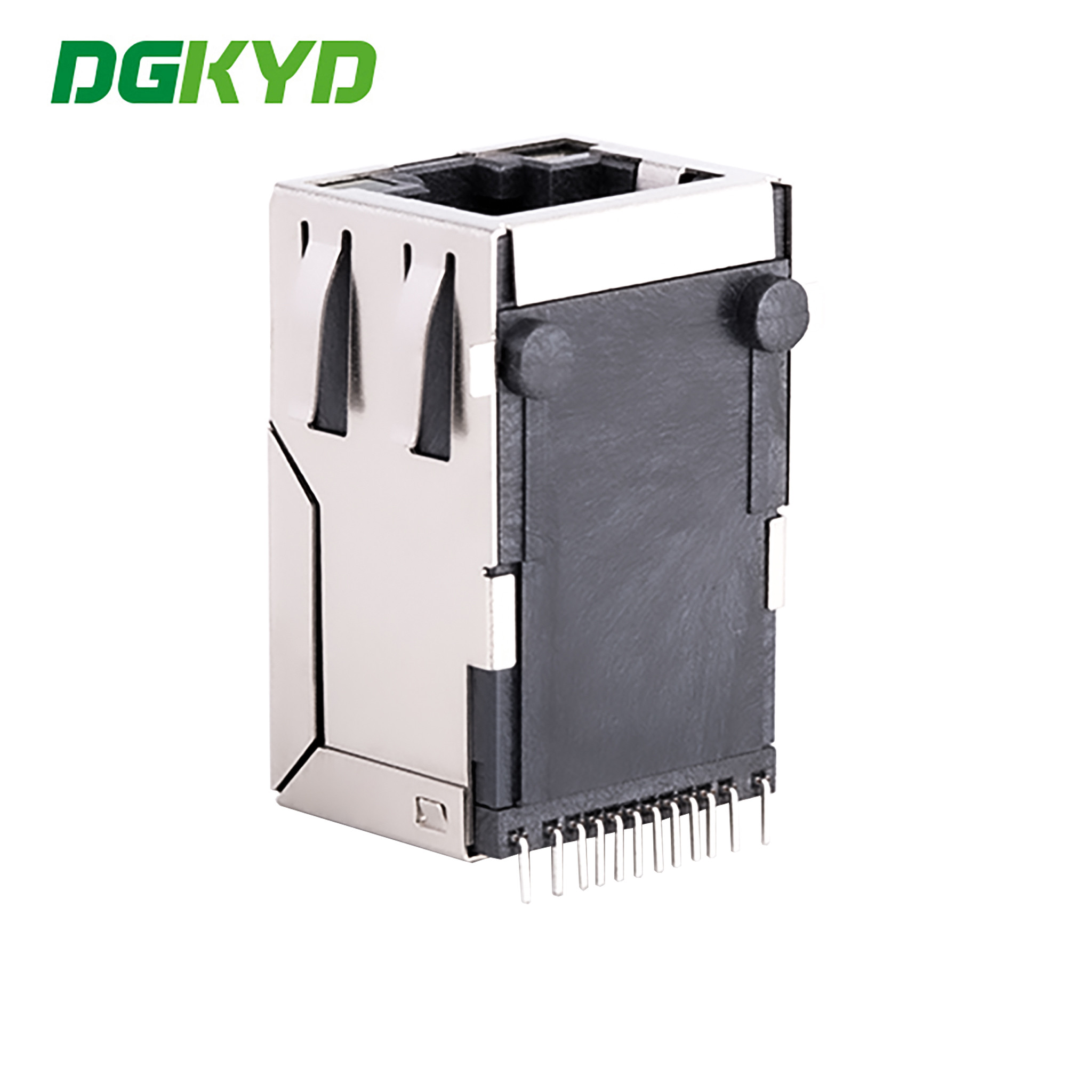

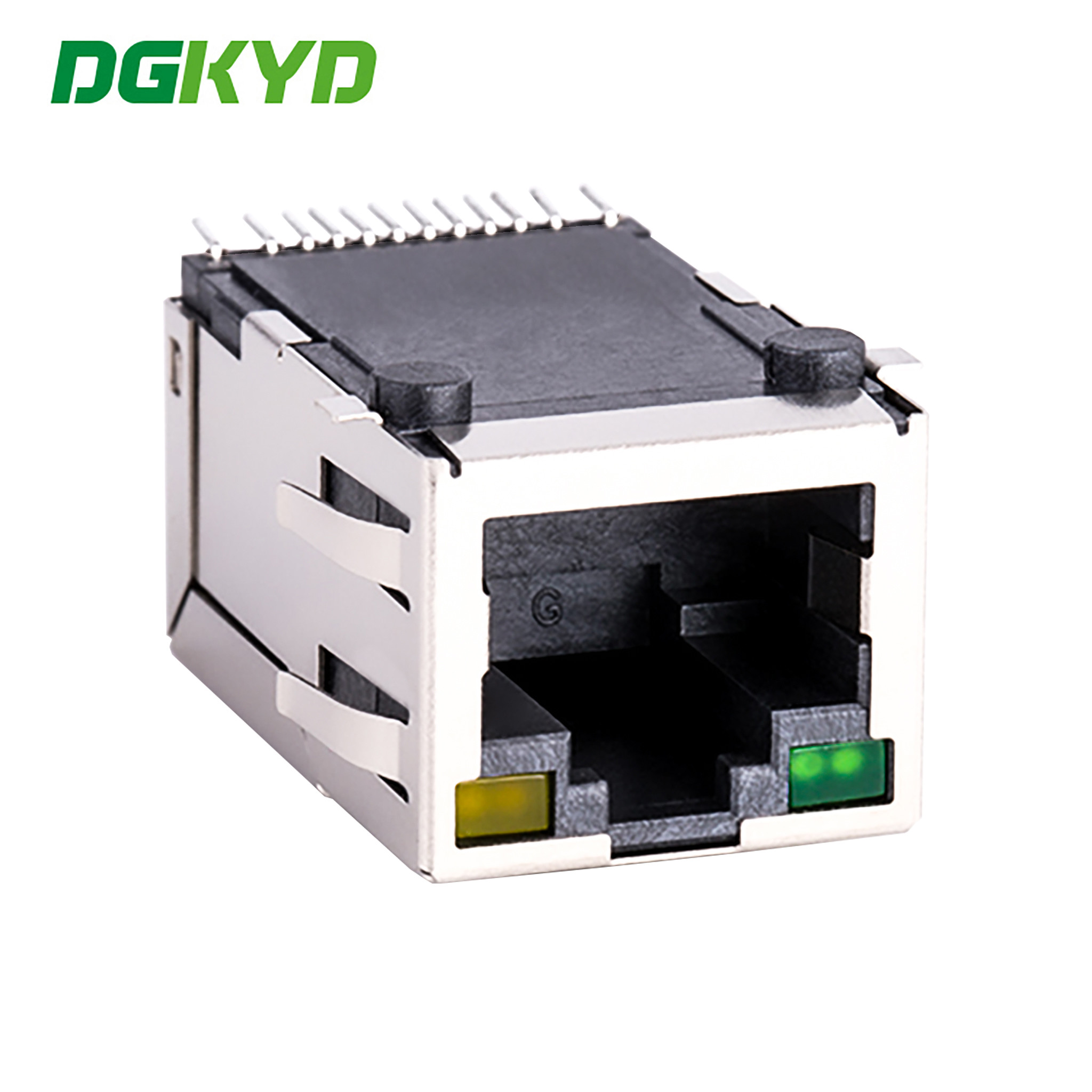

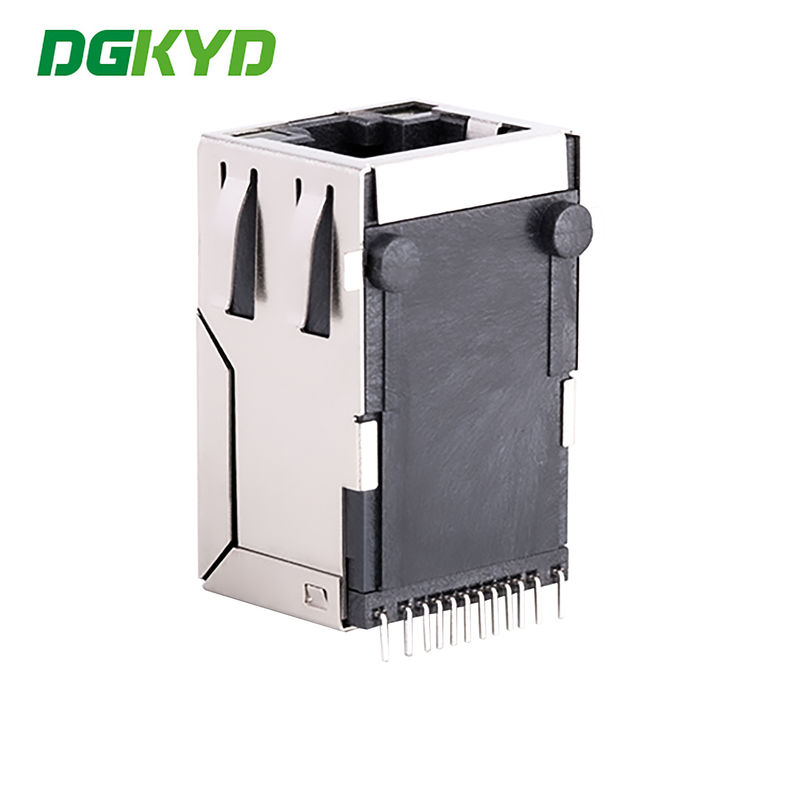

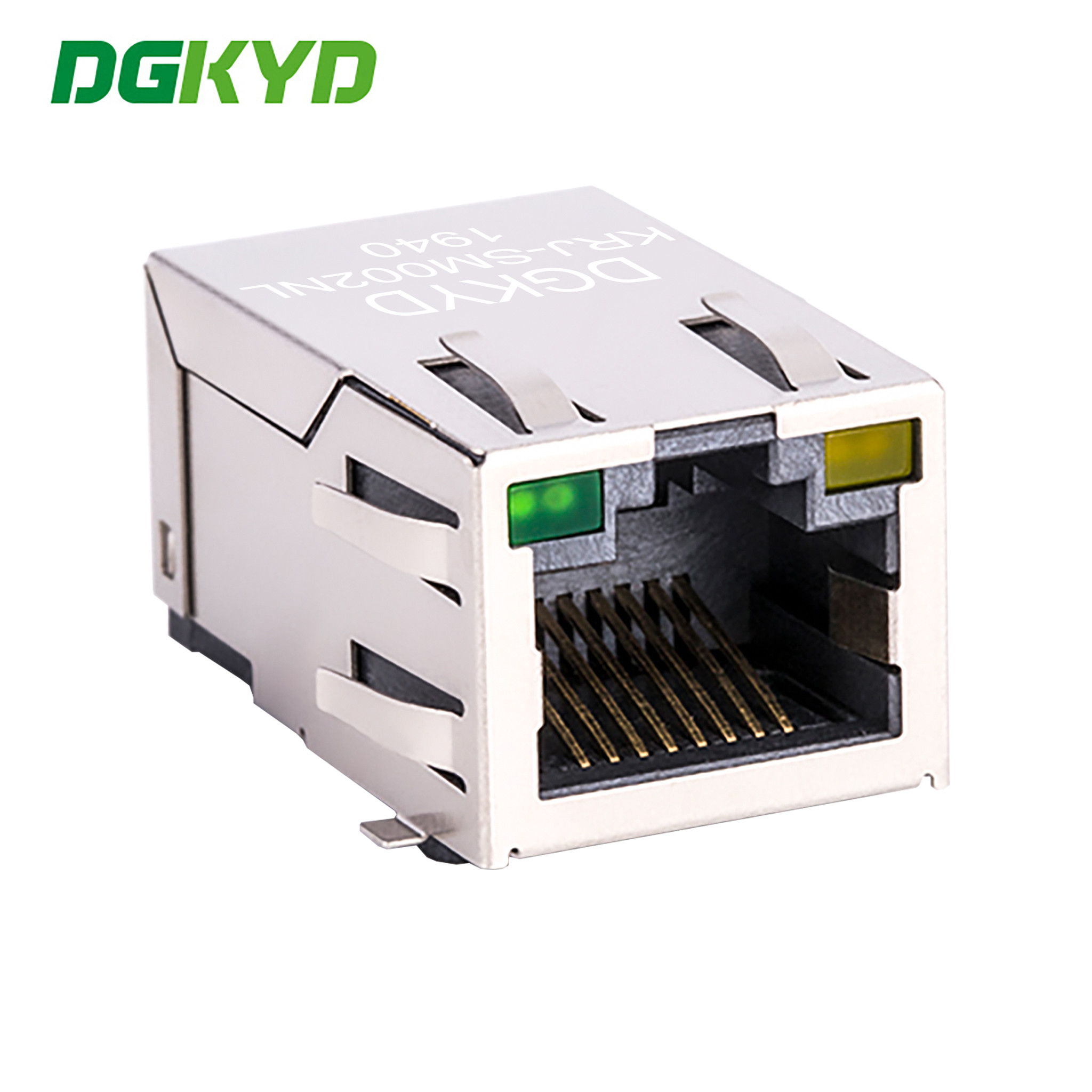

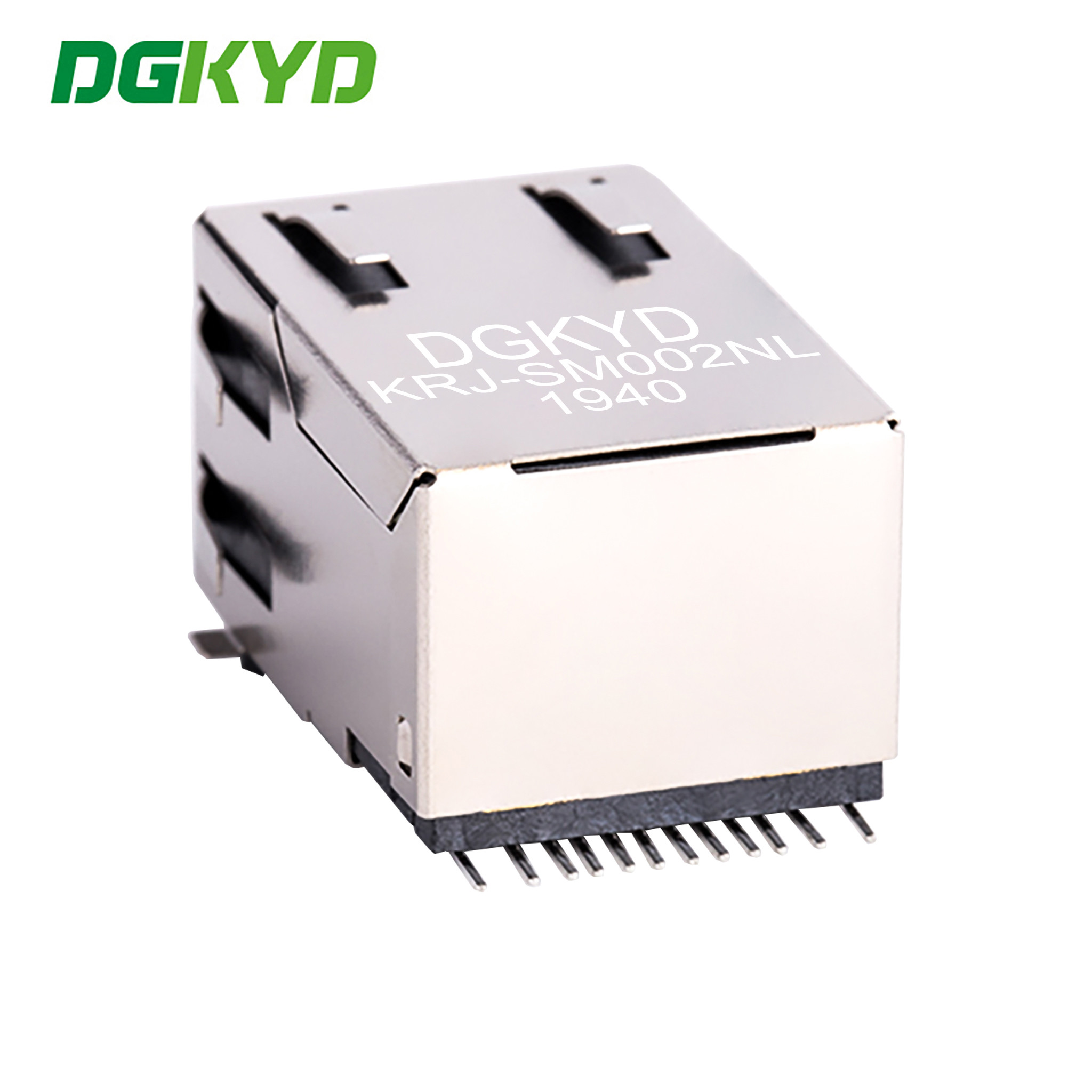

Metal Shielded RJ45 PCB Connector SMT CAT5 Rj45 Magnetic Jack , G/Y LED RJ45 Ethernet port 100Mbps network transformer KRJ-SM002NL



Product Specification Document

KRJ-SM002NL.pdf



Parameters

Part Number KRJ-SM002NL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch up
Filter With filter LED Option With LED
LED Color Green / Yellow Panel Stops With Panel Stops
Shielded Metal shielded Applies To  Printed Circuit Board
Performance Speed 100 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Single port Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit



Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0




Descriptions:

  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Length:25.4mm
