SFP 1X1 Connector Without Shielding Shell LCP Phosphor Bronze DGKYDSFP2C2100D00B022

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 3000Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYDSFP2C2100D00B022

Detail Information

Cage: Nickelsilver Shell: LCP
Light Pipe: Polycarbonate Colour: Black
Temperature Range: -40 ℃ To+85 ℃. Product Name: SFP Connector
Material Science: Phosphor Bronze Terminal: The Contact Area Is Plated With 15U Gold.
Highlight:

SFP 1X1 Connector Without Shielding Shell

,

DGKYDSFP2C2100D00B022

,

LCP phosphor bronze SFP 1X1 connector

Product Description

SFP 1X1 connector without shielding shell LCP phosphor bronze DGKYDSFP2C2100D00B022



Product Specification Document

DGKYDSFP2C2100D00B022.pdf



They are widely used in PC card / Notebook applications, wireles, etc.

Lead free soldering: wave soldering height up to 265 ℃

Professional connector manufacturer, a variety of styles to choose from, we are factory direct sales, not only quality assurance but also affordable.



Our strengths:

We can provide free samples for you to test, and then purchase if appropriate.

If the product is not what you want, please contact us directly and provide the product specifications you need.

Large-scale production workshop, fast delivery, immediate delivery from the spot, no need to worry about delivery.

We focus on good quality,By the adhere to the principle of professionalization, integrity and efficiency. Sincerely hope to find the work partner to achieve our win-win relationships in the long run.We will treat every customer with heart.Thank you!

Connector type SFP 1X1
Number of interfaces Single Port
Whether to bring EMI shielding shell No
Working environment 0-85 degree Celsius or -40-85 degree Celsius.
Storage environment -40-85 degree Celsius
Applicable welding process Wave-soldering(Normal) or Reflowsolding(Alternative).
The product complies with the standard Meets IEEE 802.3 specification.
RoHS compliance Yes
REACH compliance Yes
Quality Assurance Electrical performance 200% test passed.
Packing specification Single weight (g ): 4.05; Quantity: 50pcs/Tray; 1300pcs/Carton; G. W. (kg): 9.05
Other technical specifications consultation Email to gc@dgkyd.com or kyd@dgkyd.com.

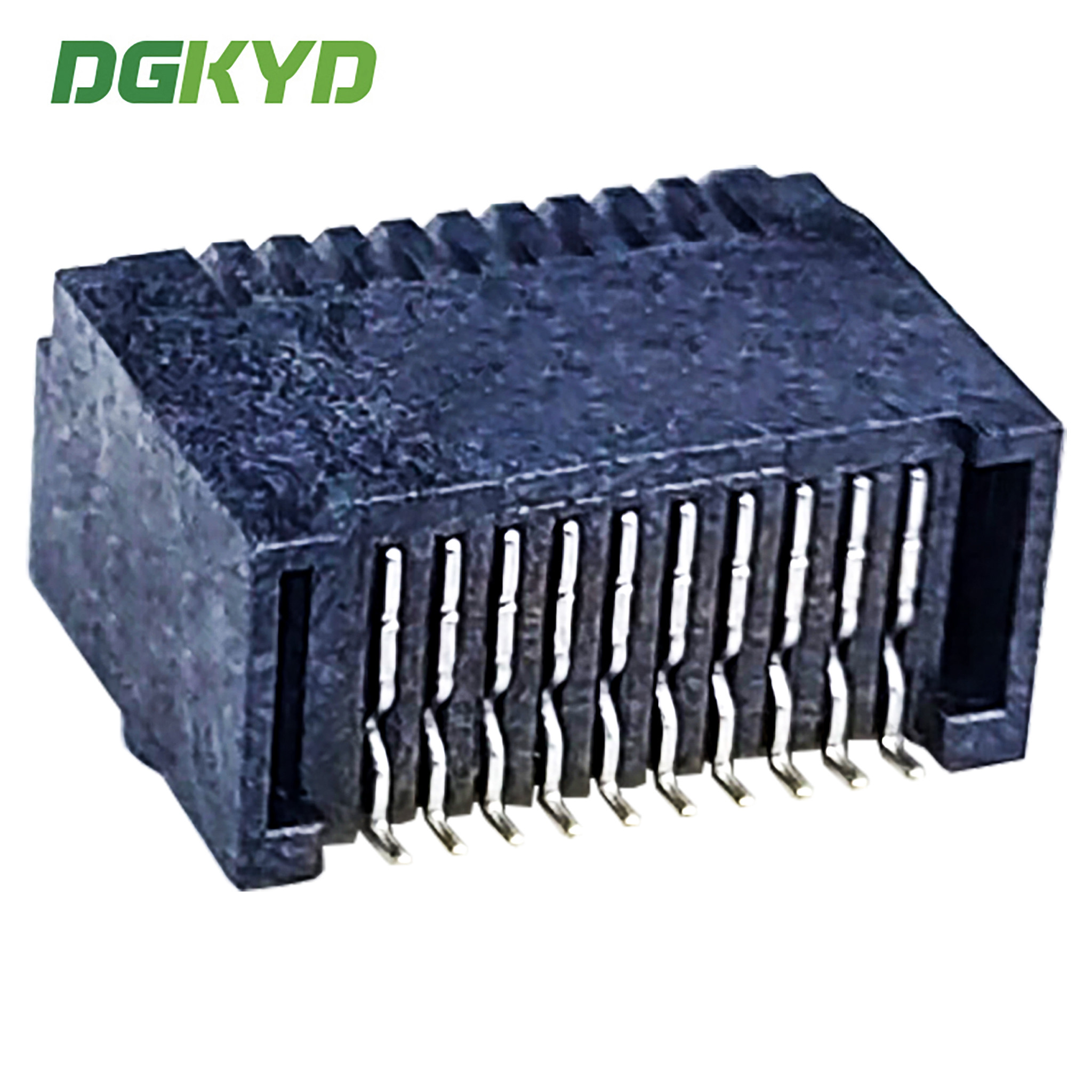

SFP 1X1 Connector Without Shielding Shell LCP Phosphor Bronze DGKYDSFP2C2100D00B022 0

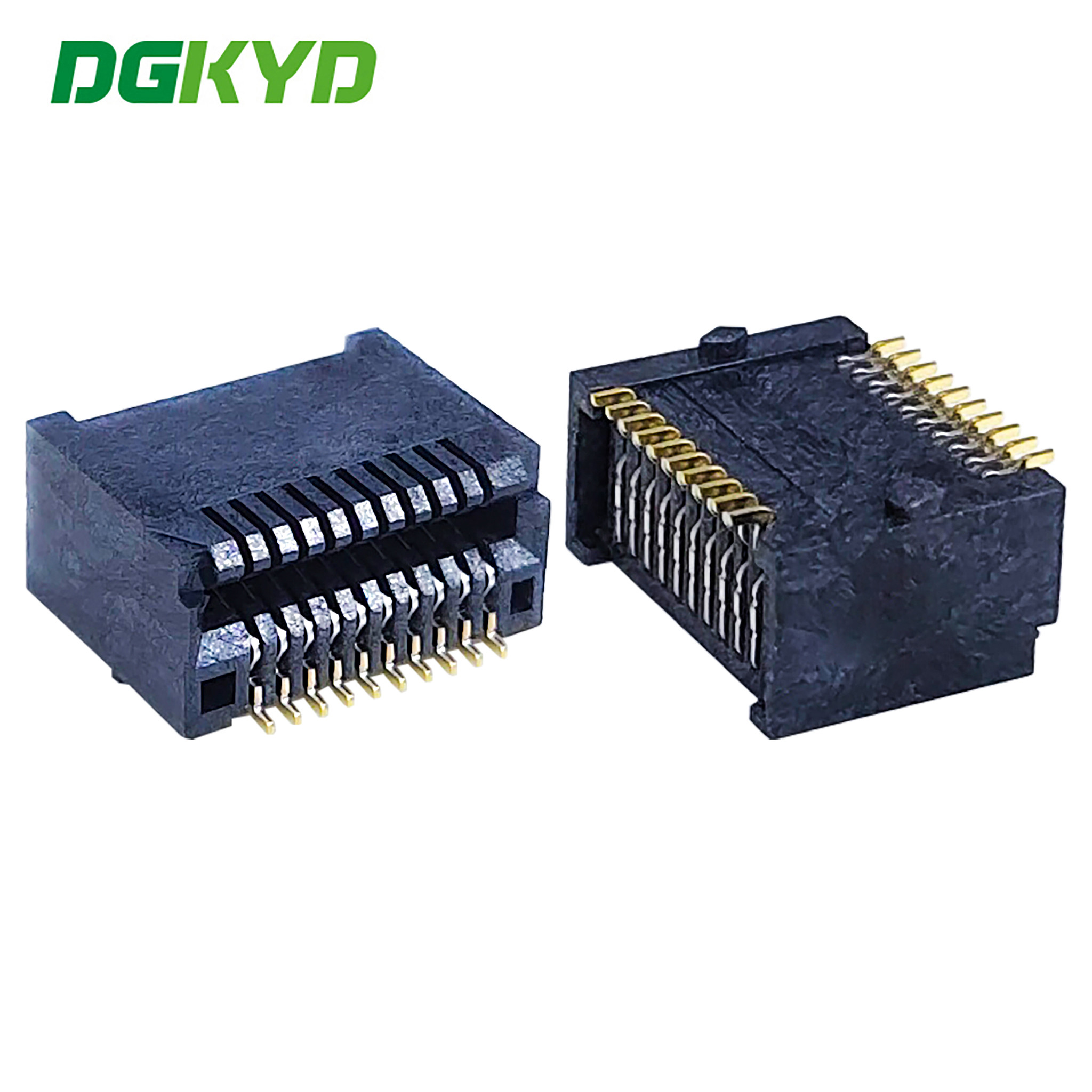

SFP 1X1 Connector Without Shielding Shell LCP Phosphor Bronze DGKYDSFP2C2100D00B022 1

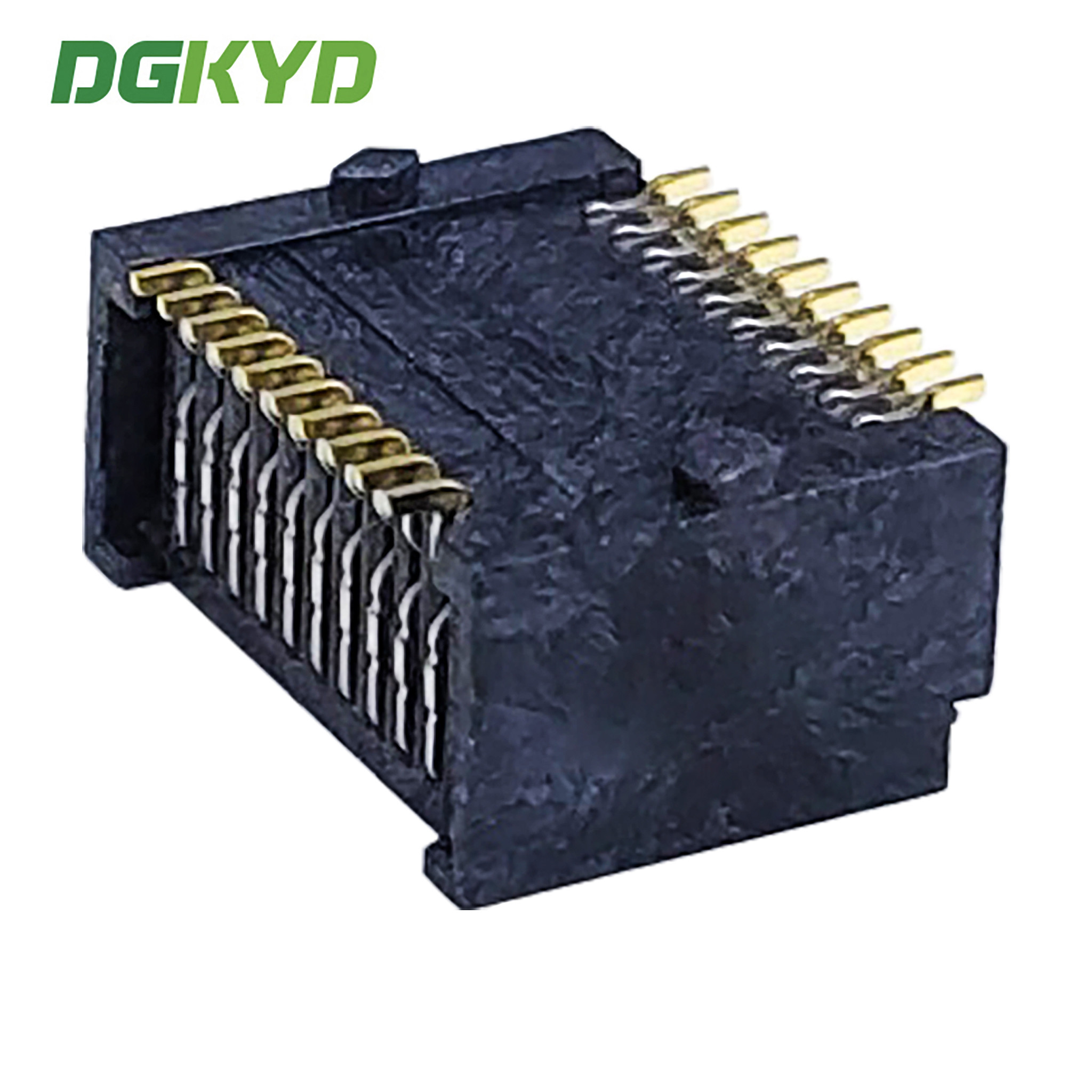

SFP 1X1 Connector Without Shielding Shell LCP Phosphor Bronze DGKYDSFP2C2100D00B022 4

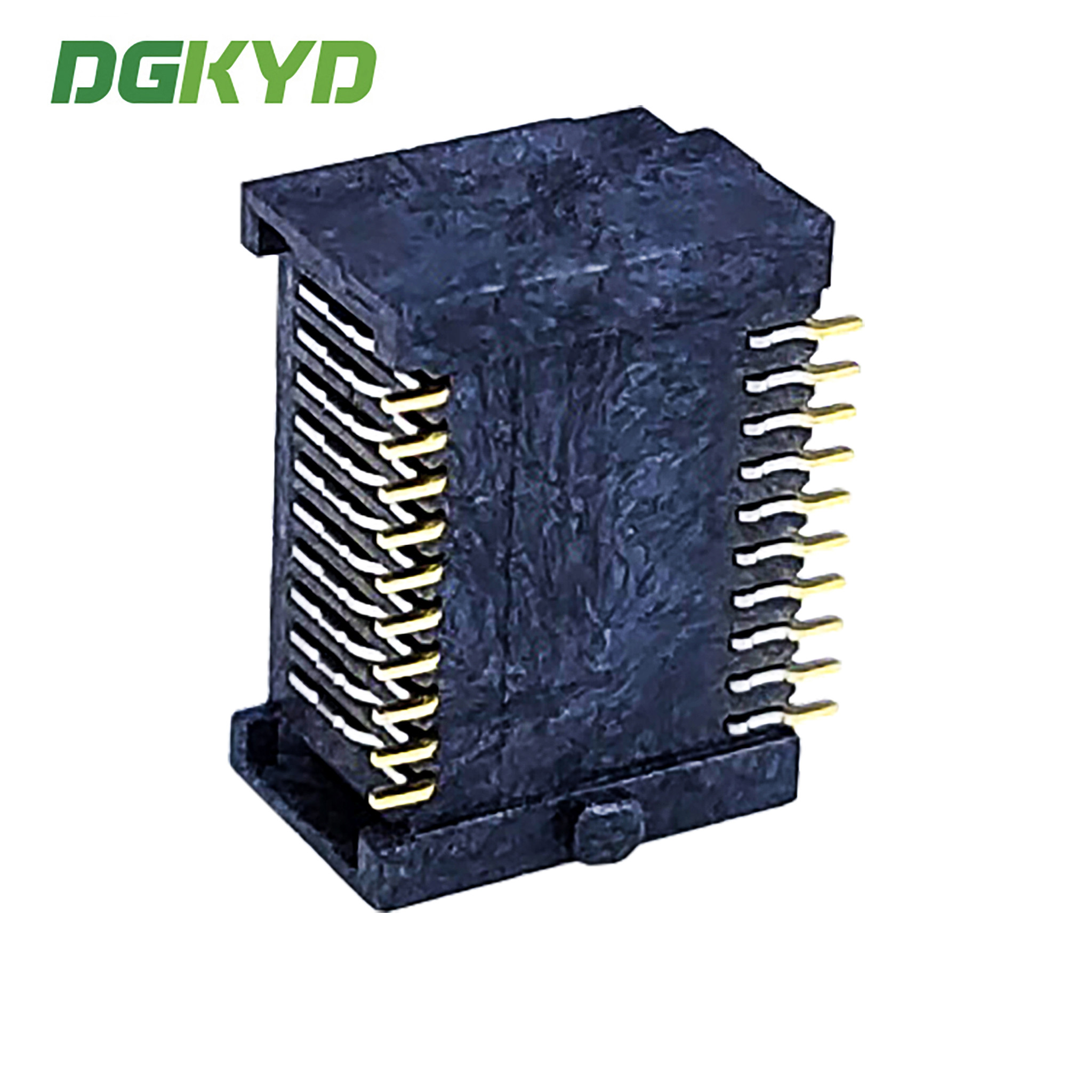

SFP 1X1 Connector Without Shielding Shell LCP Phosphor Bronze DGKYDSFP2C2100D00B022 5

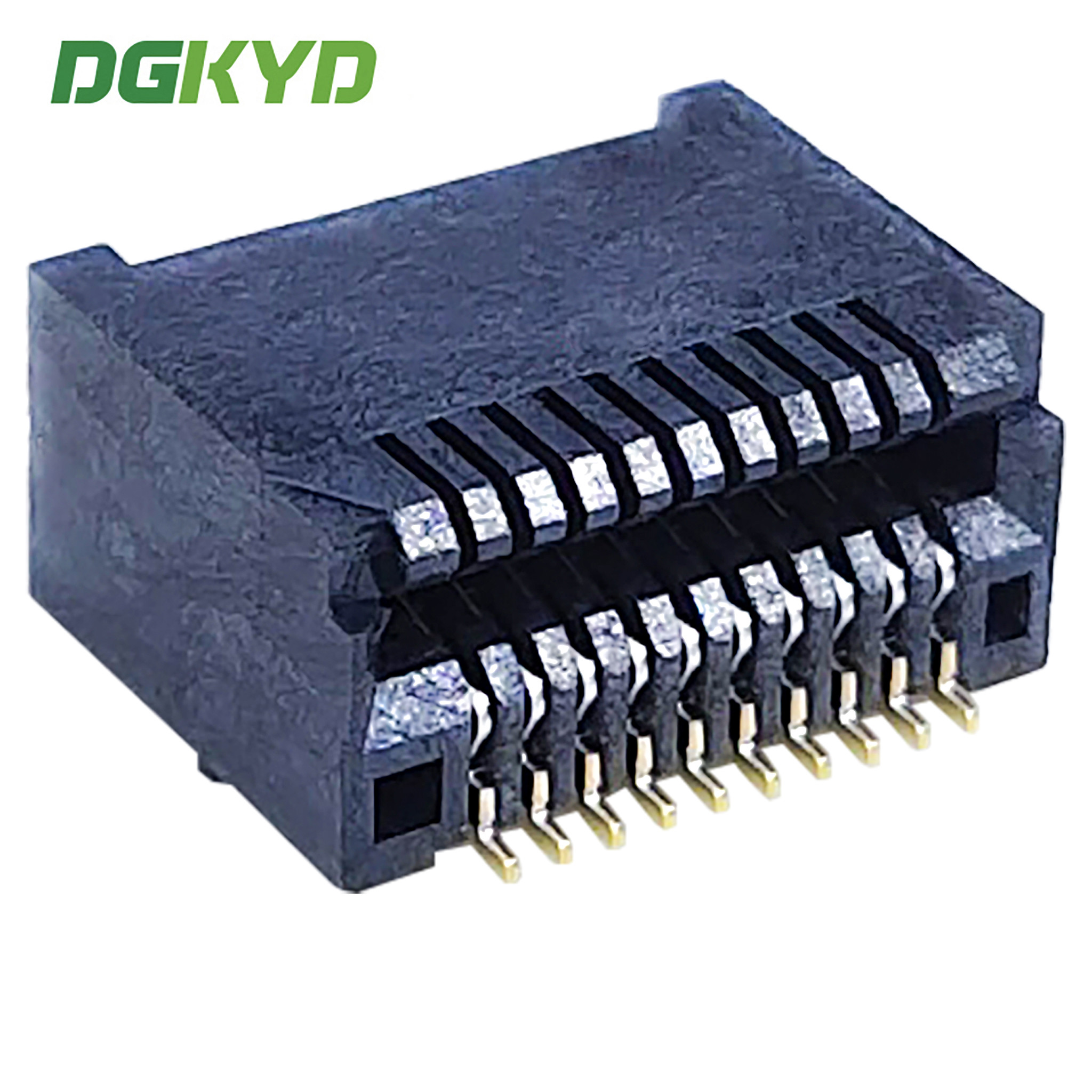

SFP 1X1 Connector Without Shielding Shell LCP Phosphor Bronze DGKYDSFP2C2100D00B022 6




Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)>

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Performance parameters:

1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6.Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω
