Shielded 10/100 Base 8P8C SMT RJ45 PCB Connector Intergrated Magnetics

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-SM002WNL

Detail Information
Product Name:	RJ45 With Transformer	Type:	RJ45 Female
Housing:	Phenolic, PBT Black (UL94V-0)	Plastic Core:	Glass Fiber Filler PBT Black(UL94V-0),ROHS
Shield RJ45:	Yes	No.Port:	RJ45 Single Port
High Light:	rj45 cat6 connector , 1 port rj45 , 8P8C SMT RJ45 PCB

Product Description

8P8C Shielded SMD RJ45 PCB Connector Magnetics 10/100 Base

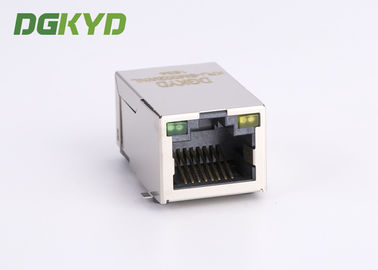

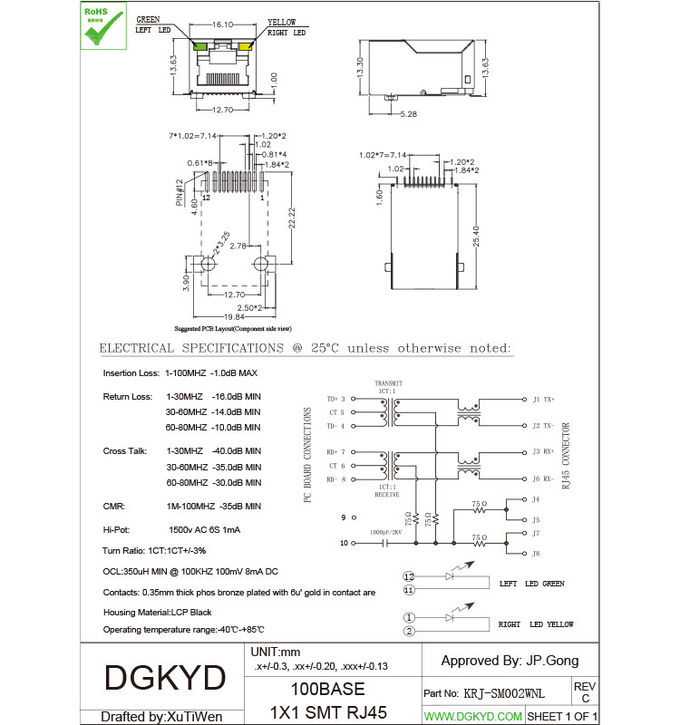

Shielded 10/100 Base 8P8C SMT RJ45 PCB Connector Intergrated Magnetics 0

10/100Base-Tx RJ45 single port 1X1 Vertical without LED with SMT
Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :0℃ to +70℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shield:YES
Rohs compliant
Length:21.3mm

RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.

Material specifications:

Plastic core:Glass fiber filler PA66 Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PA66 Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

RJ45 jacks with integrated magnetics (i.e. wirewound components) capable of meeting the high performance needs of today's telecommunications and networking applications.
