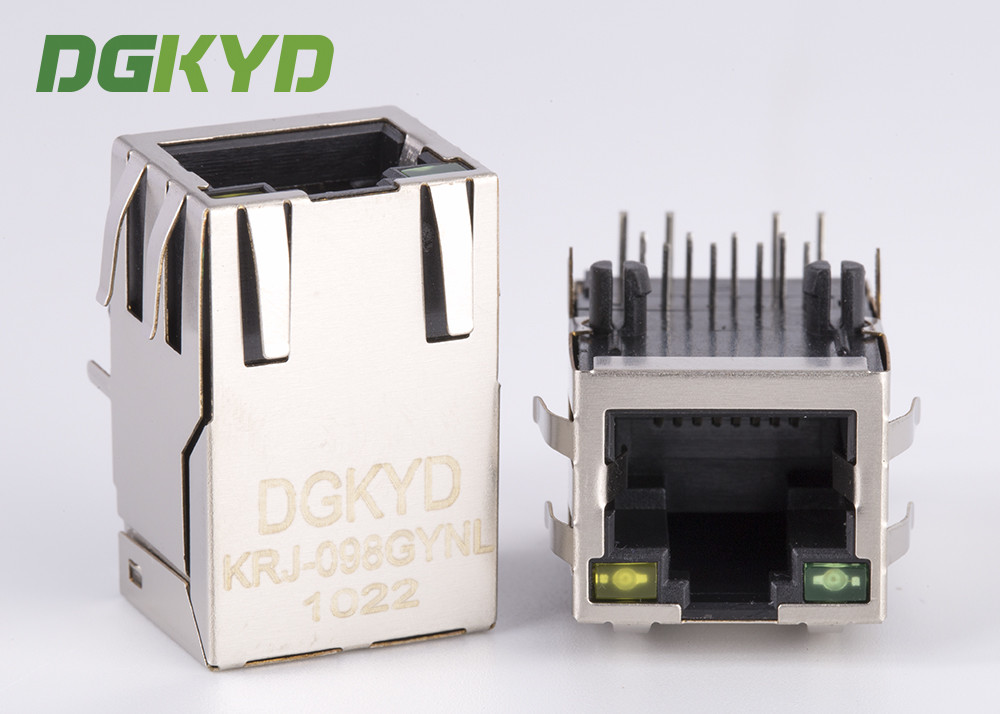

100MB Shield Ethernet RJ45 Modular Jack with manetic transformer Tap Up 25.4mm

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-098GYNL

Detail Information

Product Name: RJ45 Modular Jack Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc
Feature: Shielded RJ45 Network Port OEM/ODM: Yes
Type: RJ45 Gender: Rj45 Receptacle
High Light:

rj45 connector shielded

,

rj45 network jack

,

100MB Shield Ethernet RJ45 Modular Jack

Product Description

25.4mm 10/100M 1x1 Tap Up Network Connector / Shieded rj45 Modular Jack with LEDS

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shielded:YES
  • Rohs compliant
  • Length:25.4mm
  • LEDS:YES
  • EMI finger:NO
  • LEFT LED:Green,RIGHT LED:Yellow

100MB Shield Ethernet RJ45 Modular Jack with manetic transformer Tap Up 25.4mm 0100MB Shield Ethernet RJ45 Modular Jack with manetic transformer Tap Up 25.4mm 1100MB Shield Ethernet RJ45 Modular Jack with manetic transformer Tap Up 25.4mm 2

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL/ADSL and so on.



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
