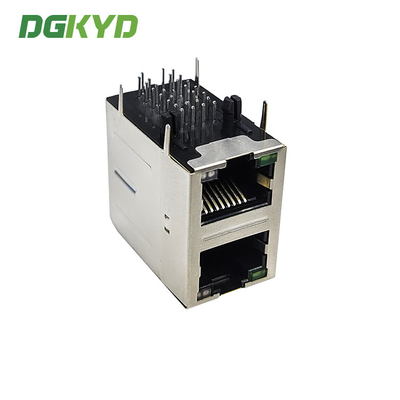

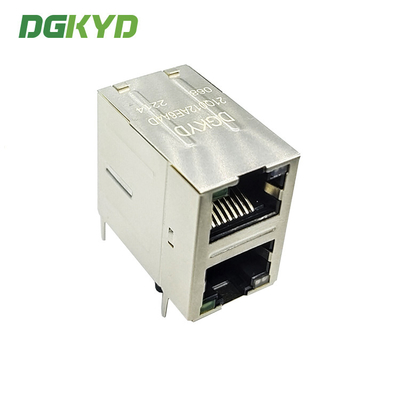

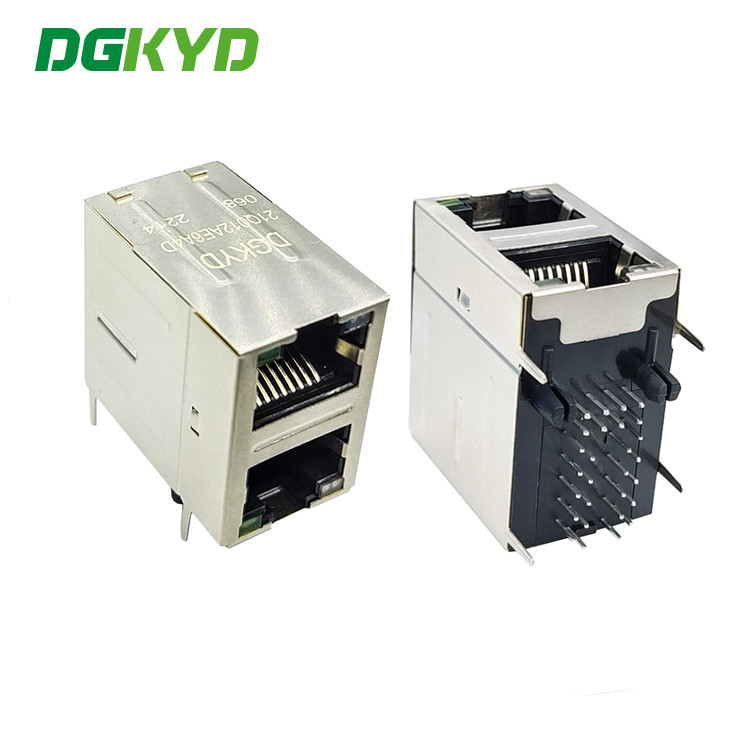

DGKYD21Q012AE6A4D068 2X1 Multiport Connector Gigabit Ethernet Filtering RJ45 Modular Connector Network Jack

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 360 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD21Q012AE6A4D068

Detail Information

Connection Type: Pcb Mounting HOUSING: PBT
Connector Type : Modular Jack LED Color: Yes.L-Green/R-Green-Orange
Filter: With Filter Contact Mating Area Plating Material : Gold 6u/15u/30u/50u
Housing Material: Brass/plastic Contact Base Material : Phosphor Bronze
Storage Temperature: - 40 ℃ ~ 85 ℃ Contacts: 10PIN
Latch: TAB-UP/down
High Light:

2X1 Multiport RJ45 Connector

,

Gigabit Ethernet Filtering RJ45 Modular Connector

,

Gigabit Ethernet Filtering RJ45 Network Jack

Product Description

DGKYD21Q012AE6A4D068 2X1 Multiport Connector Gigabit Ethernet Filtering RJ45 Modular Connector Network Jack





Parameters

Part Number

DGKYD21Q012AE6A4D068

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Up/down
Filter With Filter LED Option With LED
LED Color L-Green/R-Green-Orange Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Multi Ports Number of Positions 

10

Jack Configuration 2X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock WithWithout Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0





Drawings

DGKYD21Q012AE6A4D068 2X1 Multiport Connector Gigabit Ethernet Filtering RJ45 Modular Connector Network Jack 0DGKYD21Q012AE6A4D068 2X1 Multiport Connector Gigabit Ethernet Filtering RJ45 Modular Connector Network Jack 1DGKYD21Q012AE6A4D068 2X1 Multiport Connector Gigabit Ethernet Filtering RJ45 Modular Connector Network Jack 2



Whu Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector,Discrete Magnetic Transformers And
Professional Certification
• ISO 9001:2008
• UL Certification
• Reach Cetitifaction
• RoHS Compliance
• Active Environmental Policy
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested
• Quality Guarantee:6 Years
Competitive Price And Service
• Delivery Time:2-3 Weeks After Orders
• Free Samples Are Available
• Provide New Design For Customer Requirements
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
•  The Company Standard Is Defect-Free Products And Services
2X1 RJ45 Connector with Integrated Magnetics
