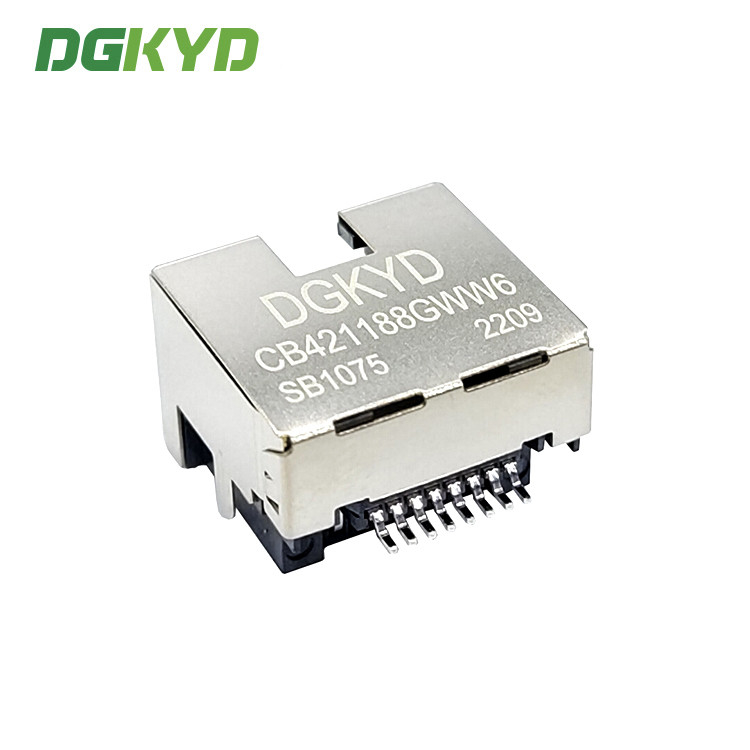

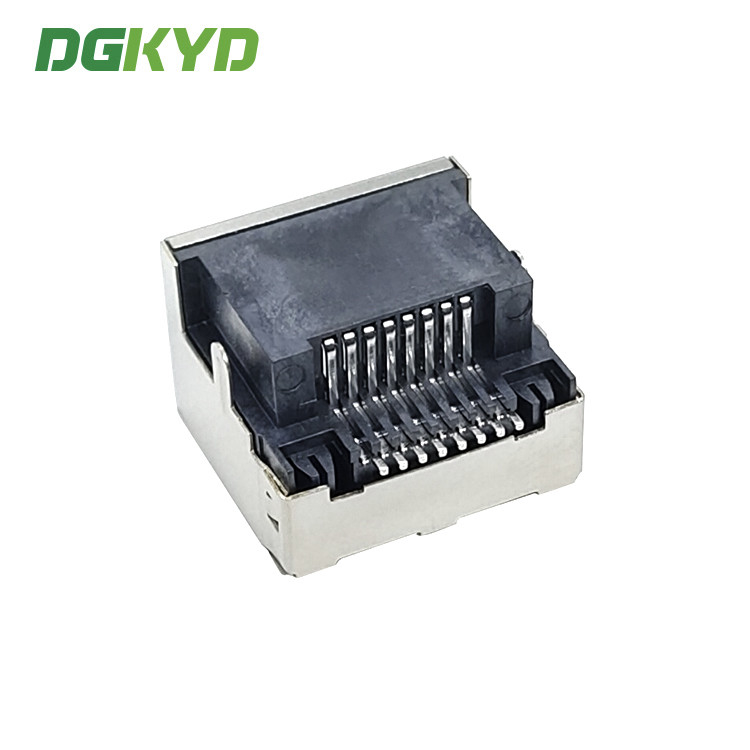

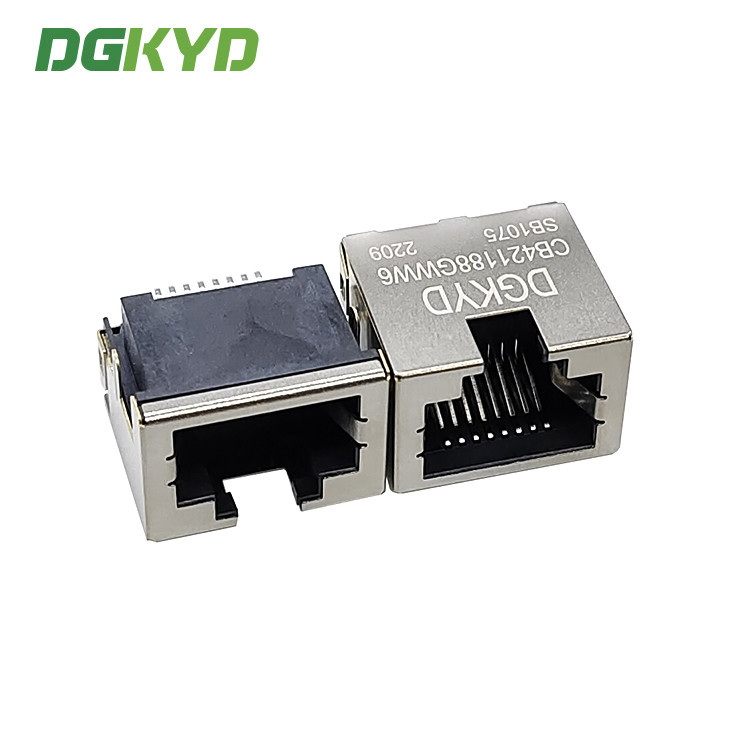

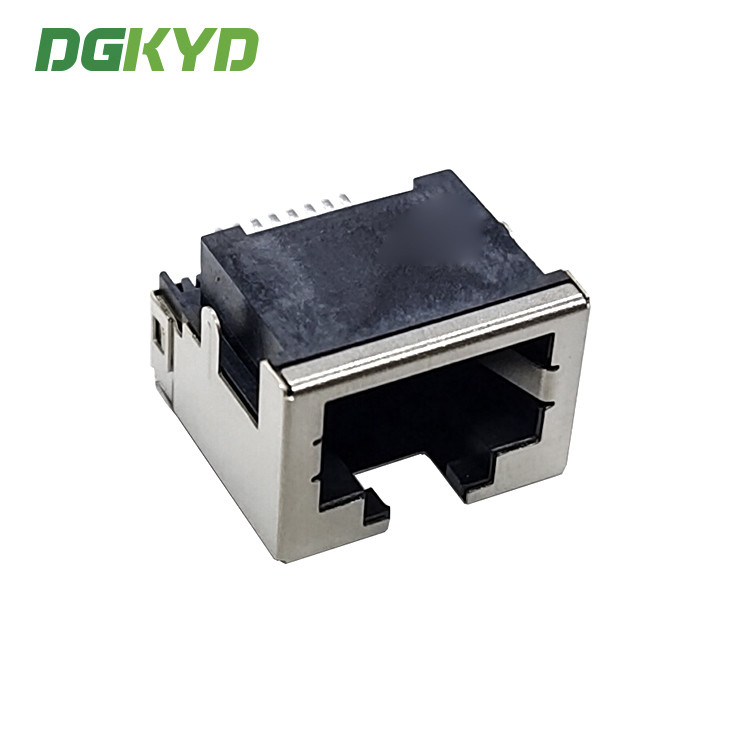

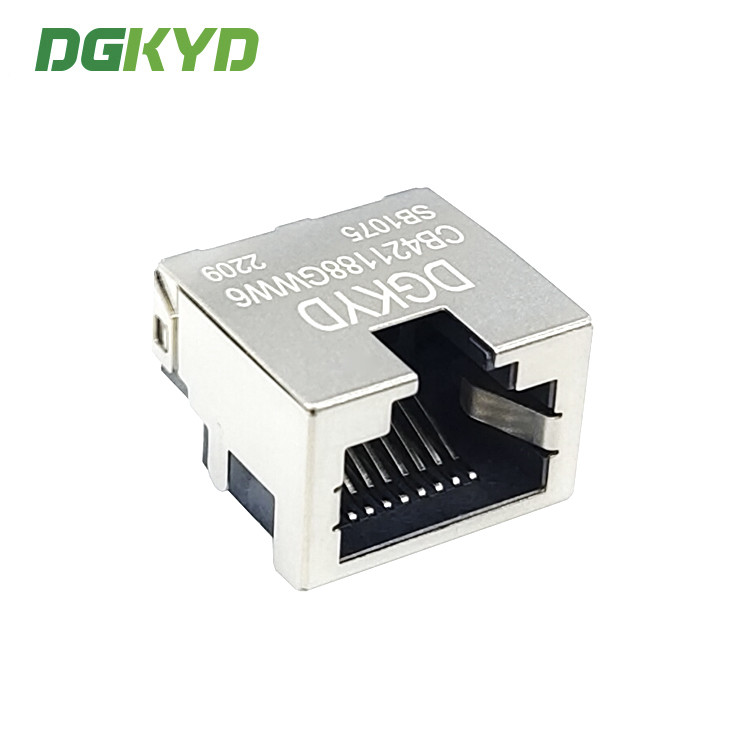

Sinking Plate Type 8P8C Modular Female RJ45 LED Connector DGKYDCB421188GWW6SB1075

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 1080 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYDCB421188GWW6SB1075

Detail Information

Part Number: SMD Ethernet RJ45 Connector HOUSING: LCP
Number Of Cores: 8 LED Color: NO
Number Of Pins: 8 Brand: DGKYD
Contact Plating: G/Fu Glod Plating Voltage Rating: 125v
Storage Temperature: - 40 ℃ ~ 85 ℃ Contact Resistance: 30milliohm Max
Latch: TAB-up
High Light:

8P8C Female RJ45 LED Connector

,

RJ45 LED Connector DGKYDCB421188GWW6SB1075

,

Sinking Plate Type Modular RJ45 Connector

Product Description

sinking plate type rj45 8P8C female led connector rj45 modular jack DGKYDCB421188GWW6SB1075



Parameters

Part Number

DGKYDCB421188GWW6SB1075

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-up
Filter Without Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   single Ports Number of Positions 

8

Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock WithWithout Board Lock
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Drawings

 Sinking Plate Type 8P8C Modular Female RJ45 LED Connector DGKYDCB421188GWW6SB1075 0

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
