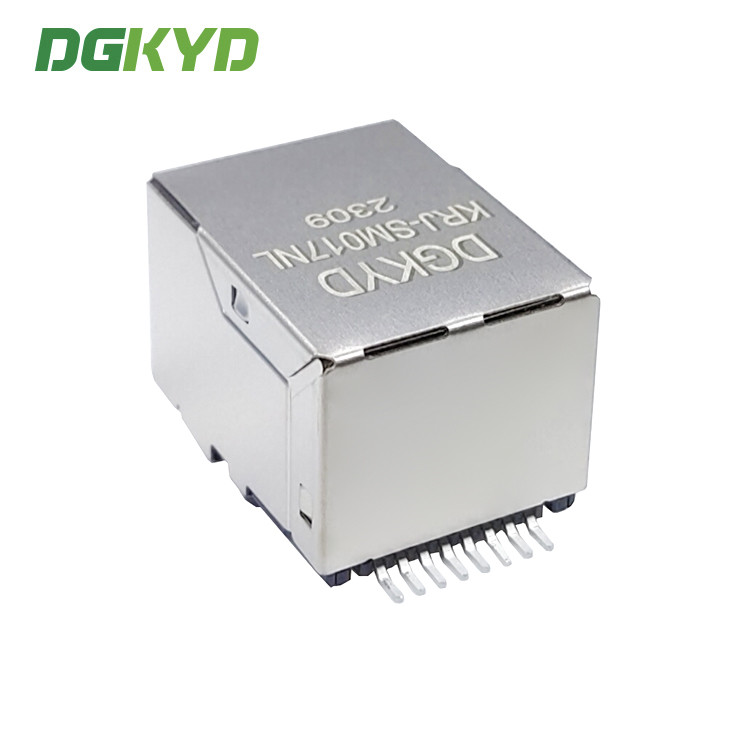

KRJ-SM017NL Shielded cat5 network jack, Low profile SMT rj45 connector with internal transformer

Name: KRJ-SM017NL Shielded cat5 network jack, Low profile SMT rj45 connector with internal transformer
Brand: DGKYD
SKU: KRJ-SM017NL
Rating: 4.8 (120 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-SM017NL

Detail Information
Performance:	Cat5/5e	PCB Mount Style:	SMD
Port Orientation:	Side Entry	Connector Type:	Low Profile RJ45 Jack
Highlight:	poe rj45 jack , network jack rj45 , rj45 connector with internal transformer

Product Description

Shield network SMT filter replace rj45 connector jack With Transformer

10/100Base-Tx RJ45 single port 1X1 with SMT
Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :0℃ to +70℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shield:YES
Rohs compliant
Length:21.3mm
LEDS:NO
EMI fingers:NO
Usage:KRJ-SM017NL

KRJ-SM017NL Shielded cat5 network jack, Low profile SMT rj45 connector with internal transformer 0

Integrates the high performance of dgkyd magnetics into industry standard connector designs. A complete line of Integrated RJ-45 connectors for 10BASE-T, 10/100BASE-TX, and Gigabit Ethernet. The result is an extremely robust, IEEE802.3 compliant solution. The complete FastJack series is UL60950 and EN60950 compliant.
