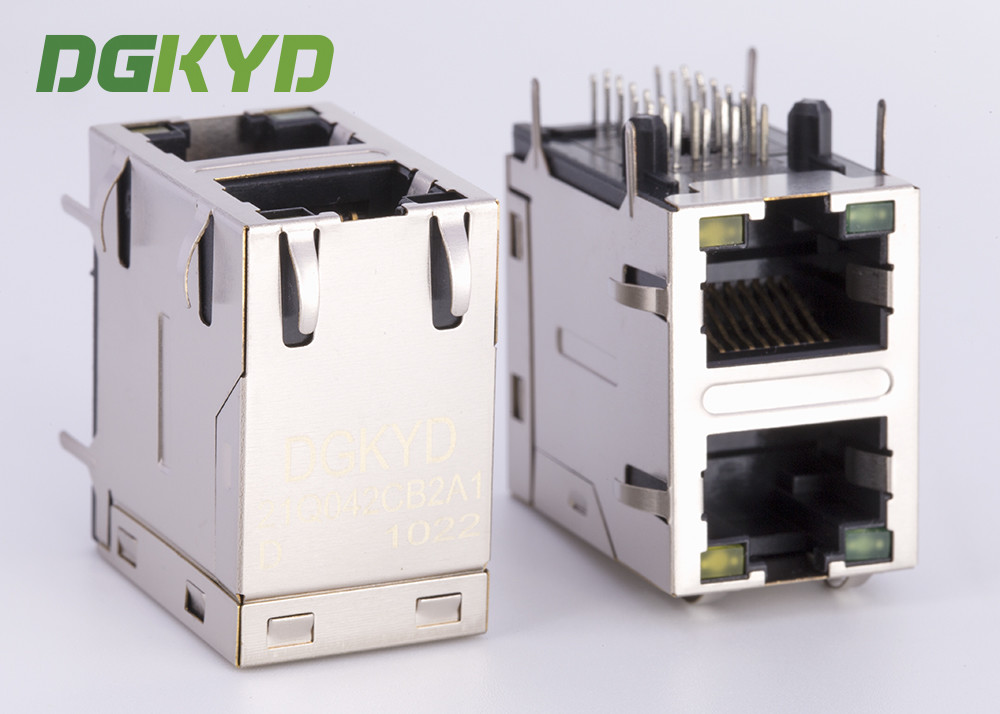

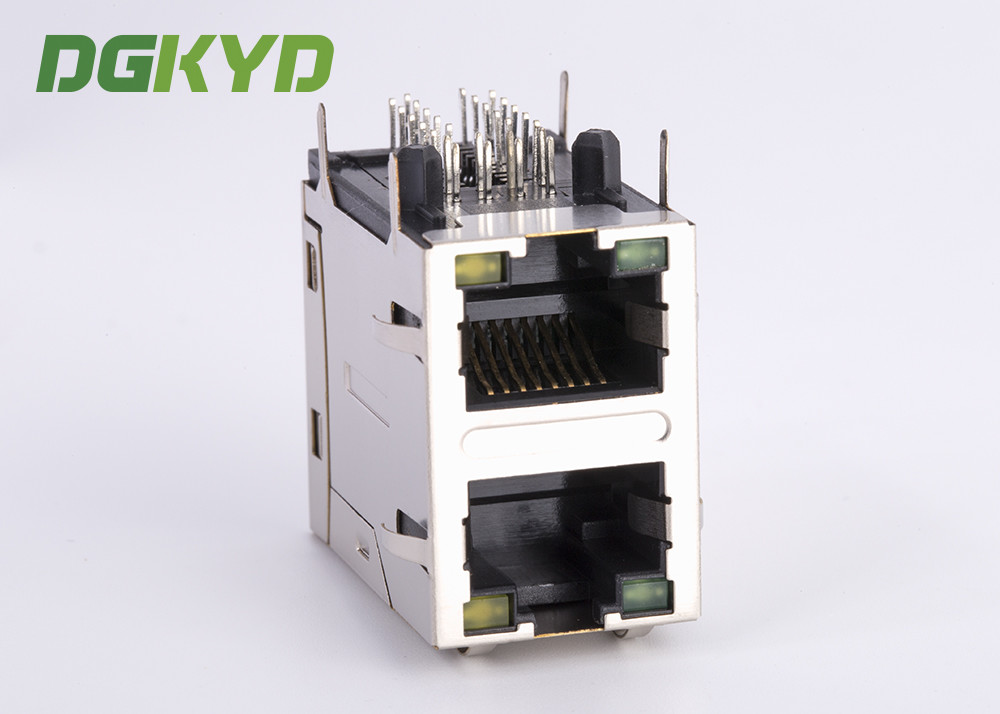

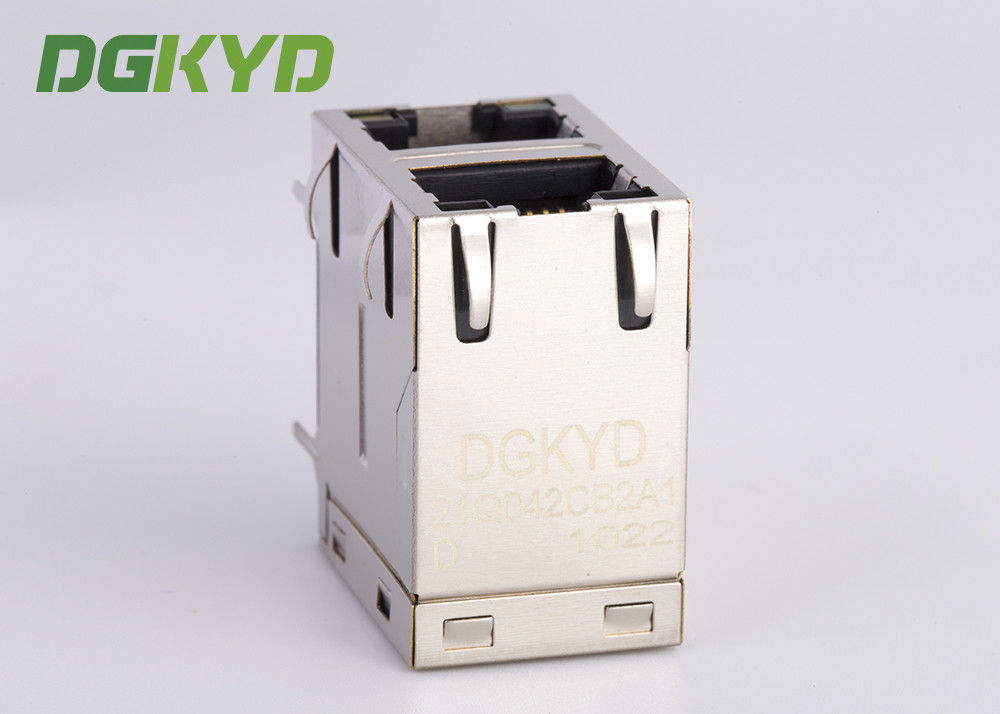

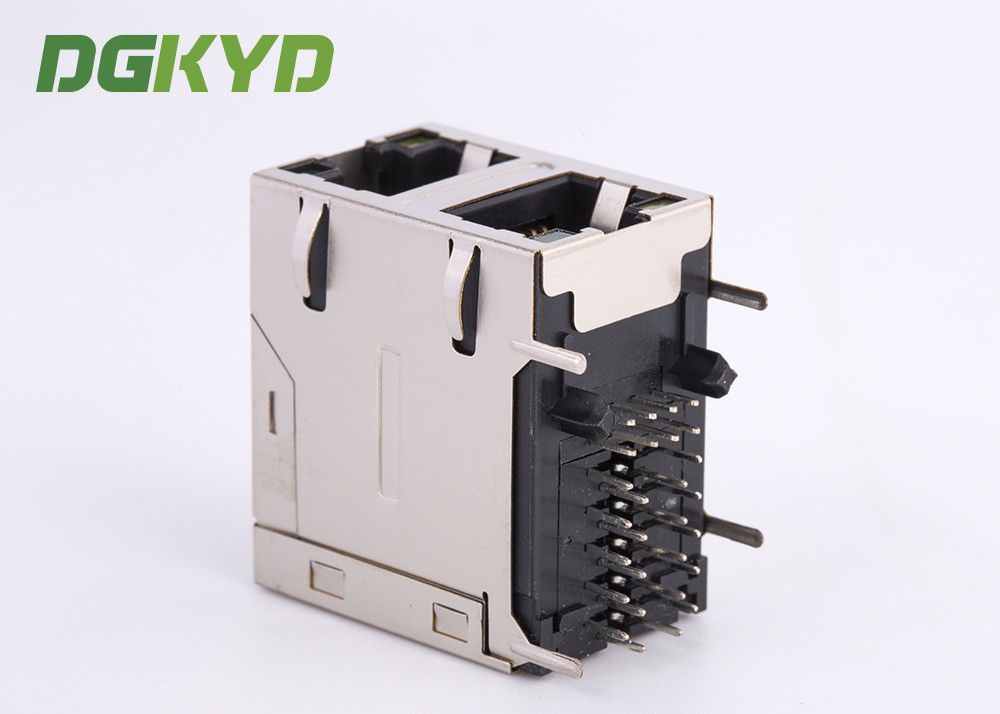

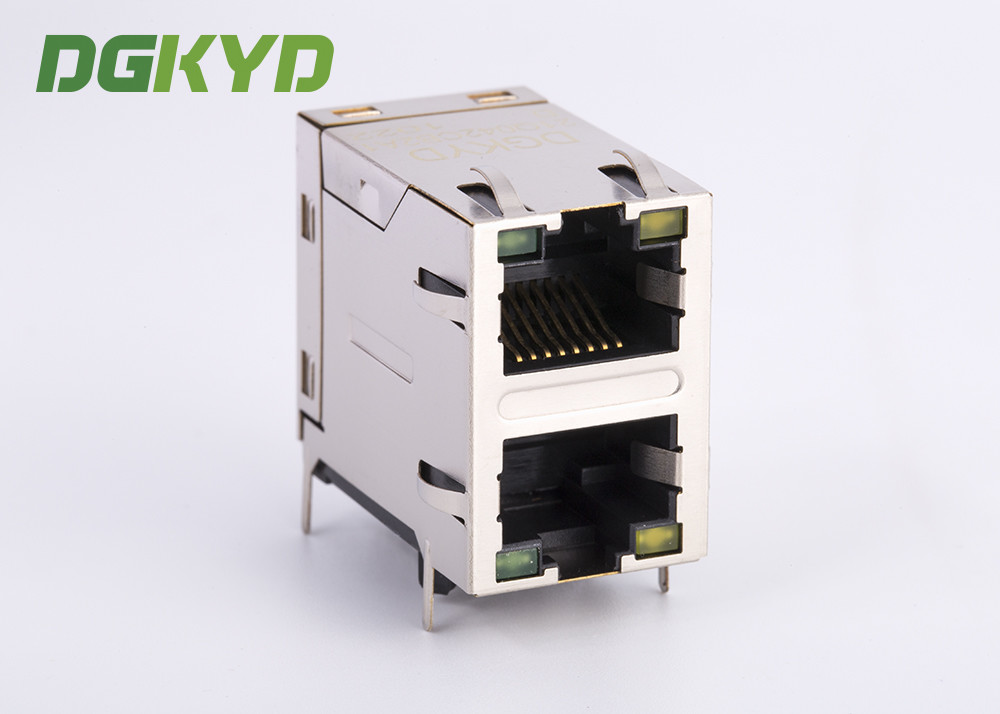

Stacked 2 Port Cat6 Industrial ethernet RJ45 Connector with internal magnetics

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD21Q042CB2A1D

Detail Information

Performance: Cat6 Port Configuration: 2x1 Dual Deck
LED: G/Y Mount Angle: Right Angle
High Light:

dual port rj45 connector

,

dual rj45 connector

,

RJ45 Connector with internal magnetics

Product Description

2- Port Cat6 RJ45 Connector , Industrial RJ45 Multiple Port Connectors

Stacked 2 Port Cat6 Industrial ethernet RJ45 Connector with internal magnetics 0

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL/ADSL and so on.
