Product Description

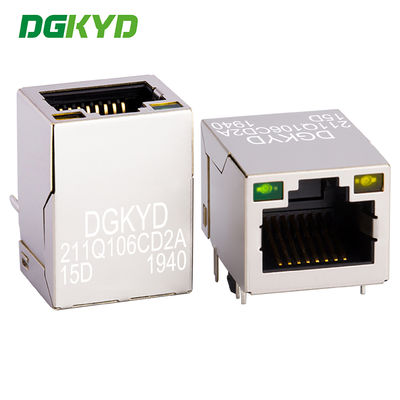

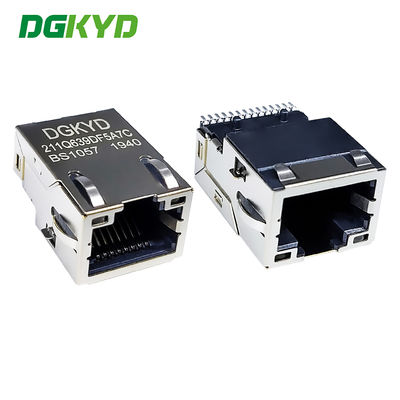

Single port RJ45 JACK with Integrated Magnetics 1GB, G/Y LED 1X1
► Product Datasheet
| Connector Type |
RJ45 |
| Number of Ports |
1 |
| Number of Rows |
1 |
| Applications |
1000 Base-T |
| Mounting Type |
Through Hole |
| Orientation |
90° Angle (Right) |
| Termination |
Solder |
| LED Color |
Green - Yellow |
| Number of Cores per Jack |
8 |
| Shielding |
Shielded, EMI Finger |
| Features |
Board Guide |
| Tab Direction |
down |
| Contact Finish |
Gold |
| Shield Material |
Copper Alloy |
| Housing Material |
Polybutylene Terephthalate (PBT) |
| Connector Type |
8 Pin Shield LED Female RJ45 Connector |
| Number of Positions/Contacts |
10p8c (RJ45, Ethernet) |
| Termination |
Solder |
| Shield |
0.20~0.25mm thickness brass with tin plated |
| Contact Material |
Copper Alloy |
| Contact Finish Thickness |
flash |
| Housing Material |
Thermoplastic |
| Operating Temperature |
-40 to 85°C |
Withstand Voltage |
AC1000V(50Hz)/min |
| Rated voltage: |
125VAC |
Actuating Force |
5~15N |
| Contact Resistance |
≤0.03Ω |
Life |
750 times |
| Insulation Resistance |
≥1000MΩ |
|
|
► Product Drawing
►Applications
Integrated RJ45 connector main used to :
10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,
internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
For example:
► FAQ
1.When can we get the reply?
Any inquiries will be replied within 12 hours.
We will try our best to support you.
2.What about minimum order quantity?
We have no limit for MOQ,so you can even buy only 1 piece.
Welcome to buy samples to test first.
3.Can customize,modify and develop products according to the design drawing?
Yes,we provide OEM service and can customize products according to the drawing.
4.How will you control product quality?
We strictly control every detail of production, and every product is inspected by our QC team before delivery. Moreover,our production is abided by ISO9000, 3C, CE and FCC.
5.What about delivery time?
Sample, We will send to you within 3 days after payment received. Production for big quantity needs 7 to 15 days. Andit also depends on product and quantity.
If want to know the exact time. Email us the quantity,
We will check the time for you.
6.What about terms of payment?
Payment terms: T/T, west Union Paypal and L/C etc.
7.How do I know that you have sent the products out?
Once the products are sent out, a tracking number will be provided so that you can check where your goods at all times
8.How you will send the goods to us?
We will send the goods to you by DHL,FEDEX,UPS, EMS,AIR etc.
