Female RJ45 Single Port 1X1 8P8C Jacks With LED Metal Shielded

Minimum Order Quantity : Negotiation Price : Please contact us to get the latest price.
Packaging Details : 1080 Tray in Carton Delivery Time : 20 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: DGKYD60S1188DB2A6DY1008

Detail Information

Application: PCB Gender: Female
LED Color: Green & Yellow Contact Mating Area Plating: GOLD 6u'' / 15u"/ 30u"/ 50u" For Optional
Package: Carton Pallet Colour: Black
Contact Plating: G/Fu Glod Plating TERMINAL: PHOSPHOR BRONZE
Storage Temperature: - 40 ℃ ~ 85 ℃ Number Of ContactsSpeed: 8
Latch: TAB-UP
High Light:

Female RJ45 Single Port

,

1X1 RJ45 Single Port

,

1X1 8P8C Jacks

Product Description

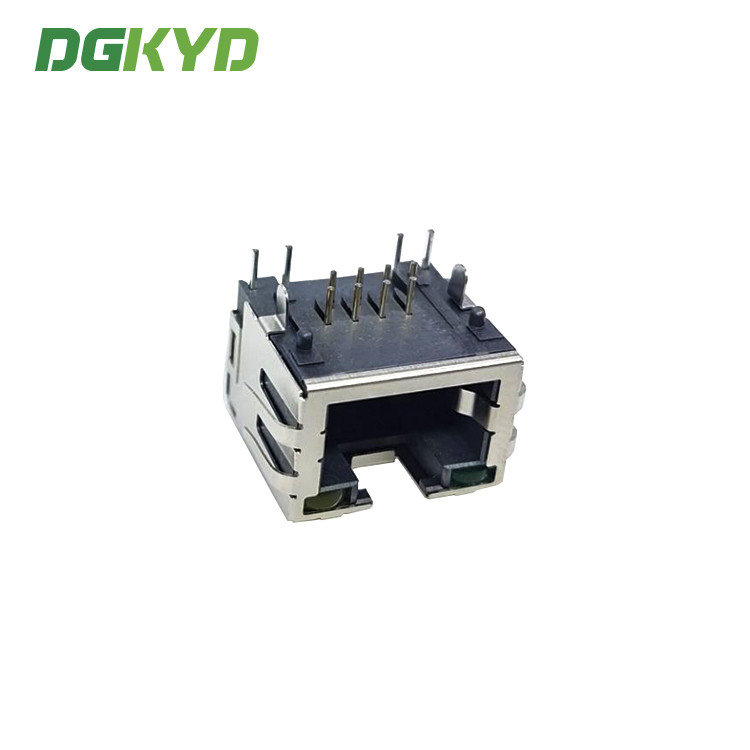

Female RJ45 Single Port 1X1 8P8C Jacks With LED Metal Shielded



Factory Direct Supply DGKYD60S1188DB2A6DY1 8P8C Jacks with LED Metal Shielded 10/100/1000 BASE-TX Cat5e Tab up RJ45 connector



 Parameters

Part Number

DGKYD60S1188DB2A6DY1008

Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-Up
Filter Without Filter LED Option With LED
LED Color Yes.L-Green/R-Yellow Panel Stops With Panel Stops
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative).
Port Configuration   Single Ports Number of Positions 

8

Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0



Why Choose Us

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.



Drawings

 Female RJ45 Single Port 1X1 8P8C Jacks With LED Metal Shielded 0
