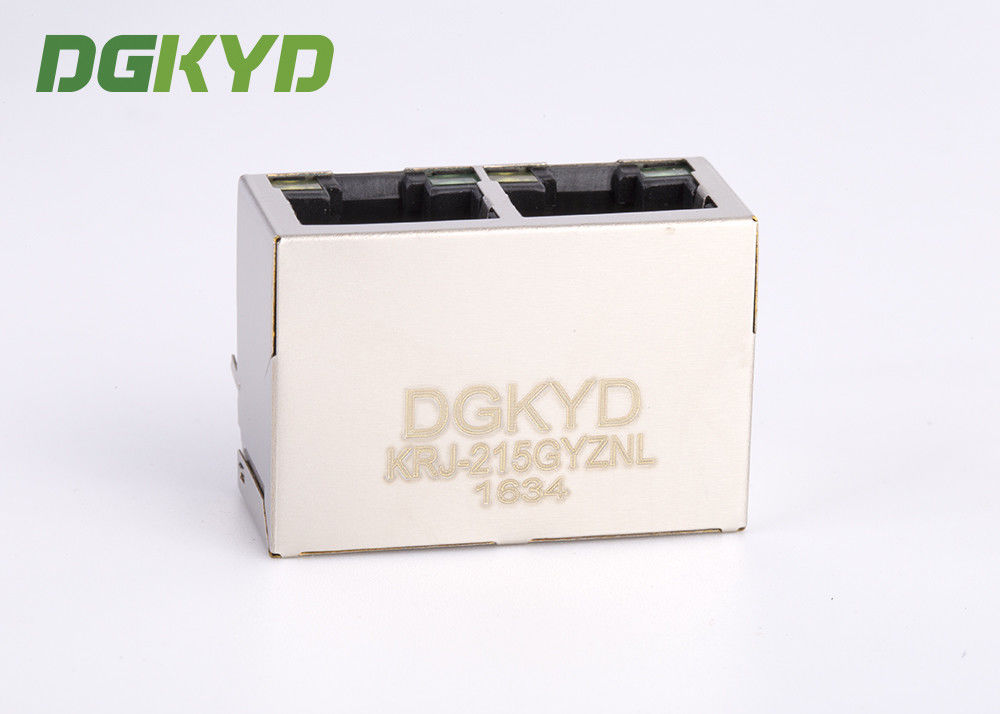

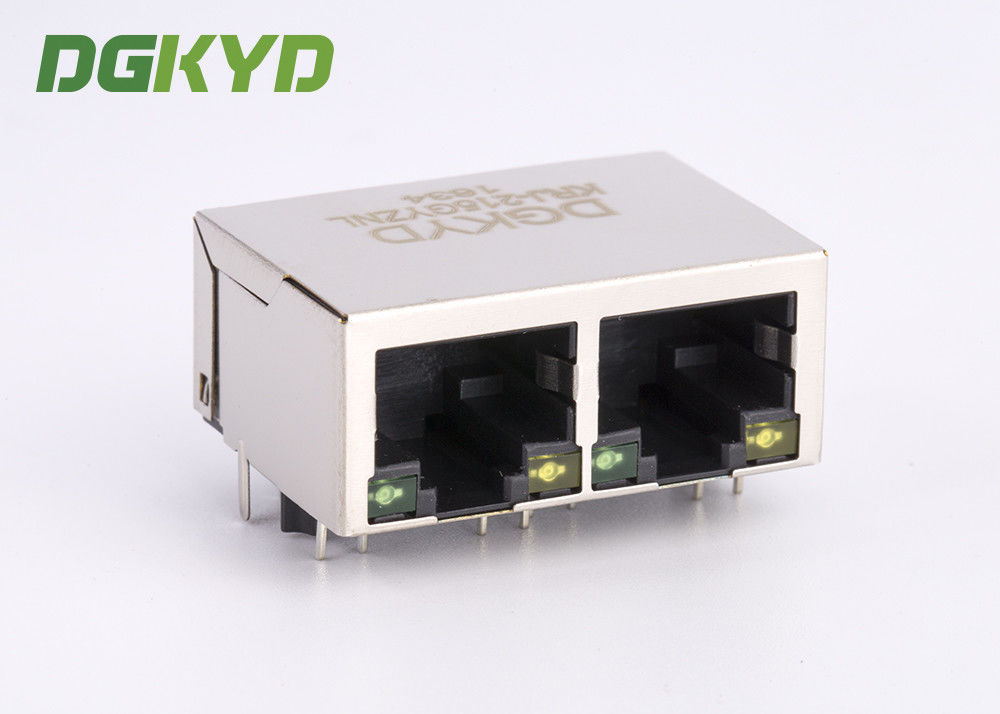

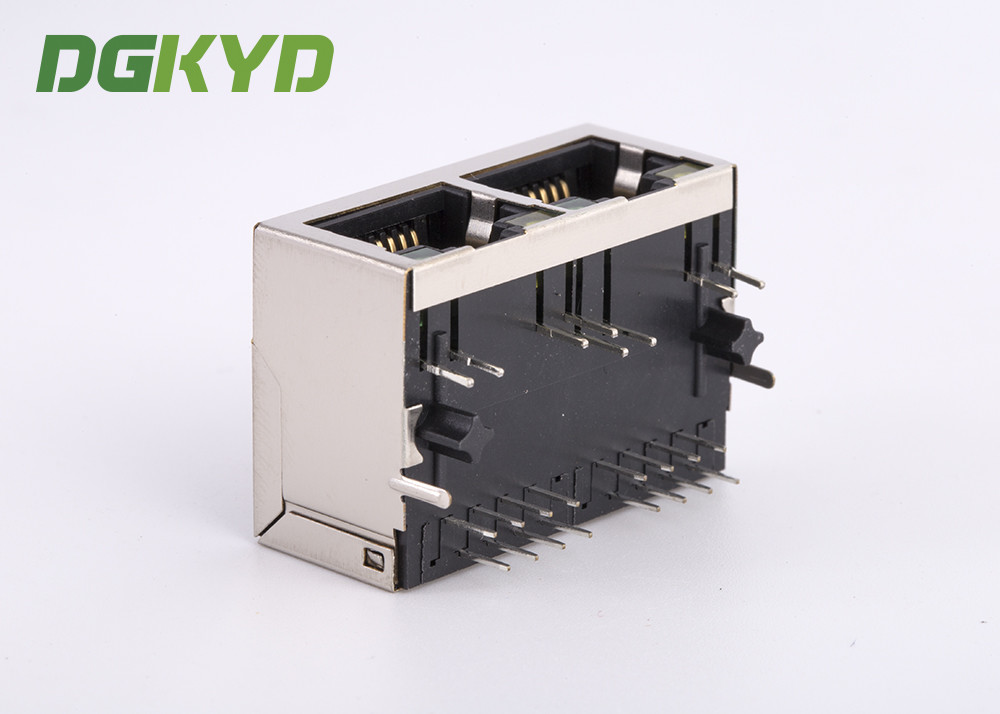

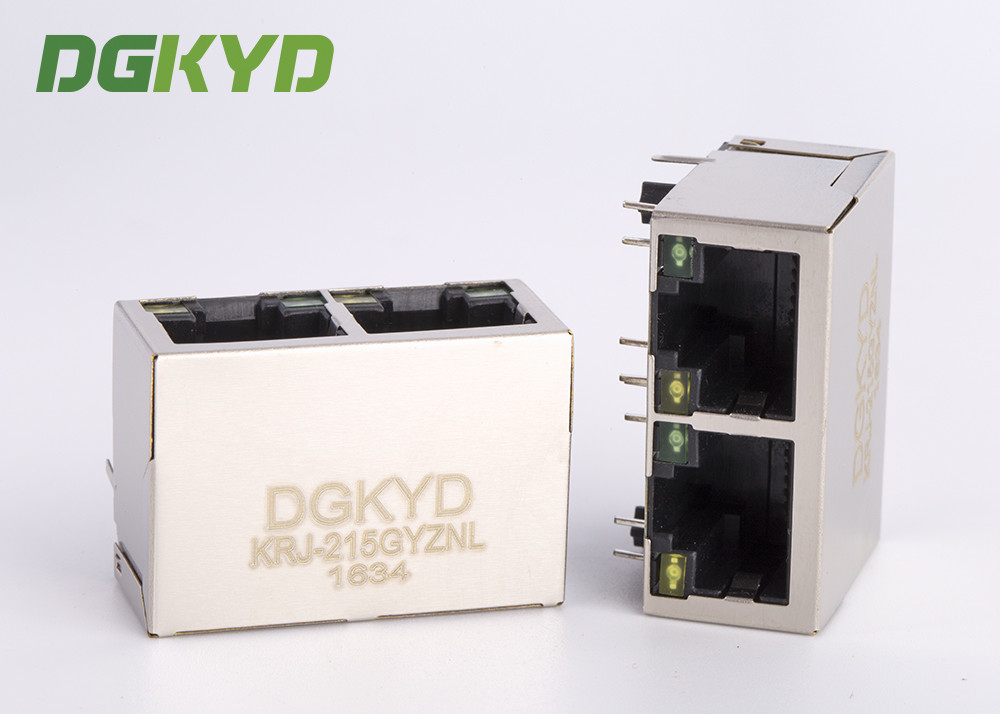

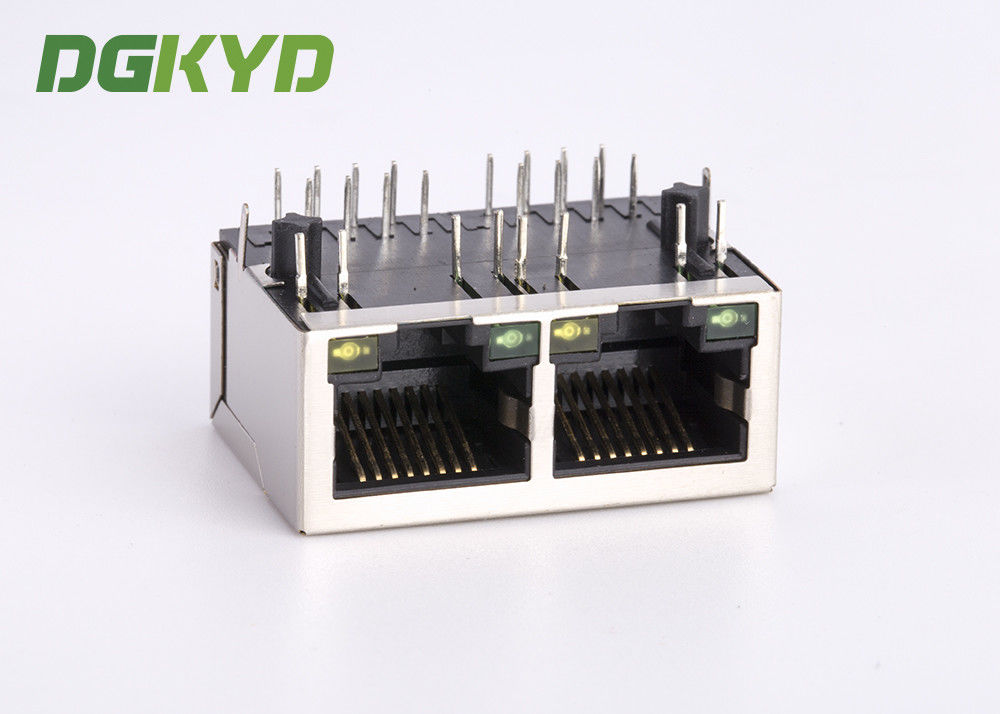

Network Connectors Rj45 Metal Shielded CAT 5 Dual Port Rj45 Ethernet Port G/Y Led

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-215GYZNL

Detail Information

Feature: High Performance With Magnetics And LED RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP
Application: Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices Product Name: Rj45 Ethernet Port
High Light:

dual port rj45 connector

,

dual rj45 connector

,

Metal Shielded Two Port RJ45

Product Description

KRJ -215GYZNL network connectors rj45 metal shielded , CAT 5 dual port rj45 ethernet port



Part Number KRJ-215GYZNL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch down
Filter With internal filter LED Option With LED
LED Color Green / Yellow Panel Stops Without Panel Stops
Shielded shielded Applies To  Printed Circuit Board
Performance Speed 100 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  2 port Number of Positions  8
Jack Configuration 1 x 2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit



Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0




Descriptions:

  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Length: 21.2 mm



► Product Drawing




Network Connectors Rj45 Metal Shielded CAT 5 Dual Port Rj45 Ethernet Port G/Y Led 0Network Connectors Rj45 Metal Shielded CAT 5 Dual Port Rj45 Ethernet Port G/Y Led 1Network Connectors Rj45 Metal Shielded CAT 5 Dual Port Rj45 Ethernet Port G/Y Led 2



As an innovative connector manufacturing company, our extensive line of unfiltered connectors and integrated connector modules (ICMs) make it easy to find cost-effective connectivity solutions for every type of application. With manufacturing sites throughout Asia, we understand that performance and time to market counts. We even offer complementary design support for OEM and ODM customers to reduce development time and ensure seamless integration.
