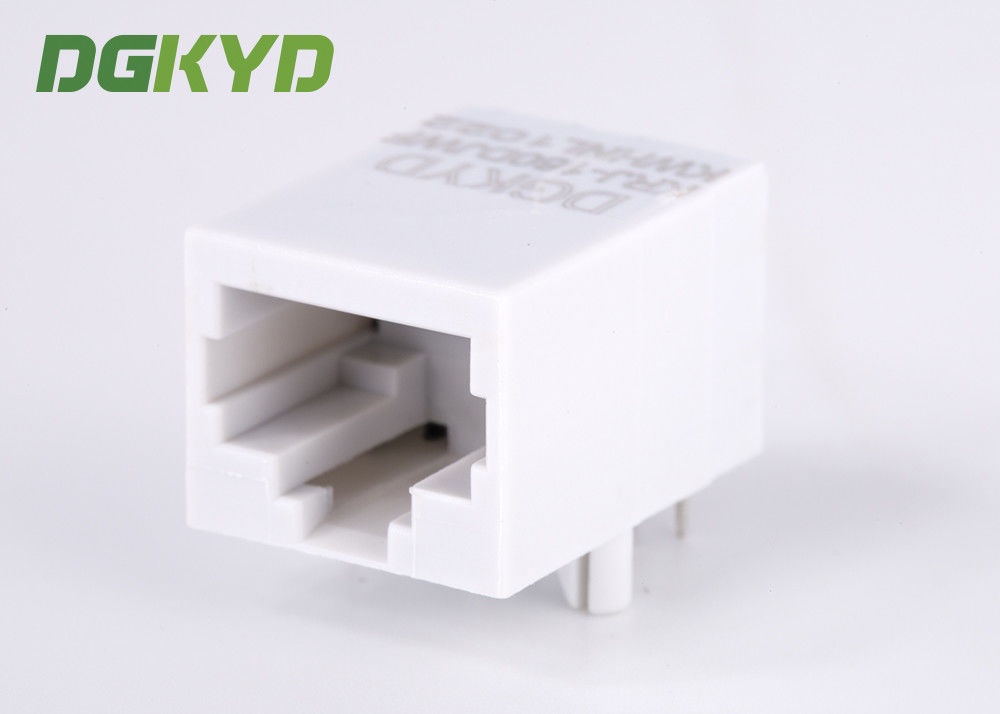

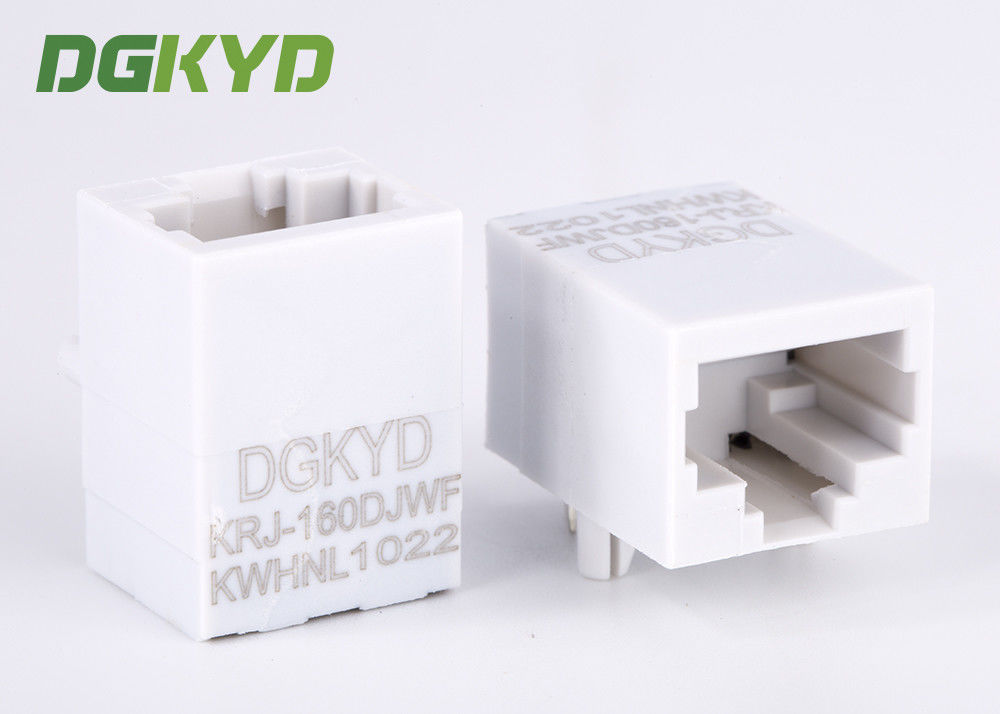

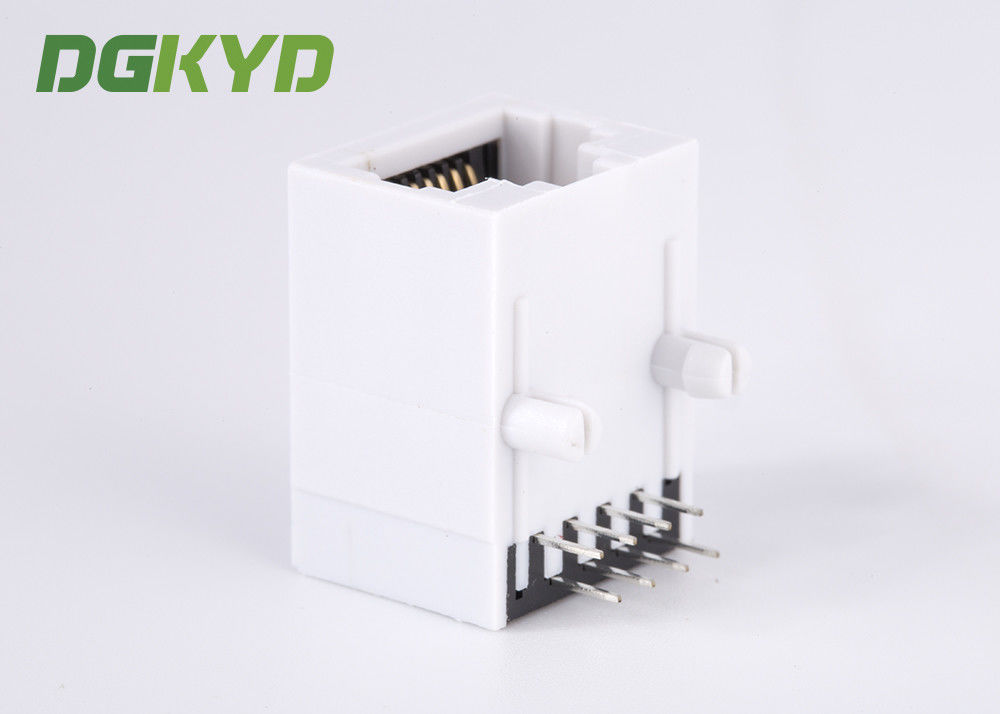

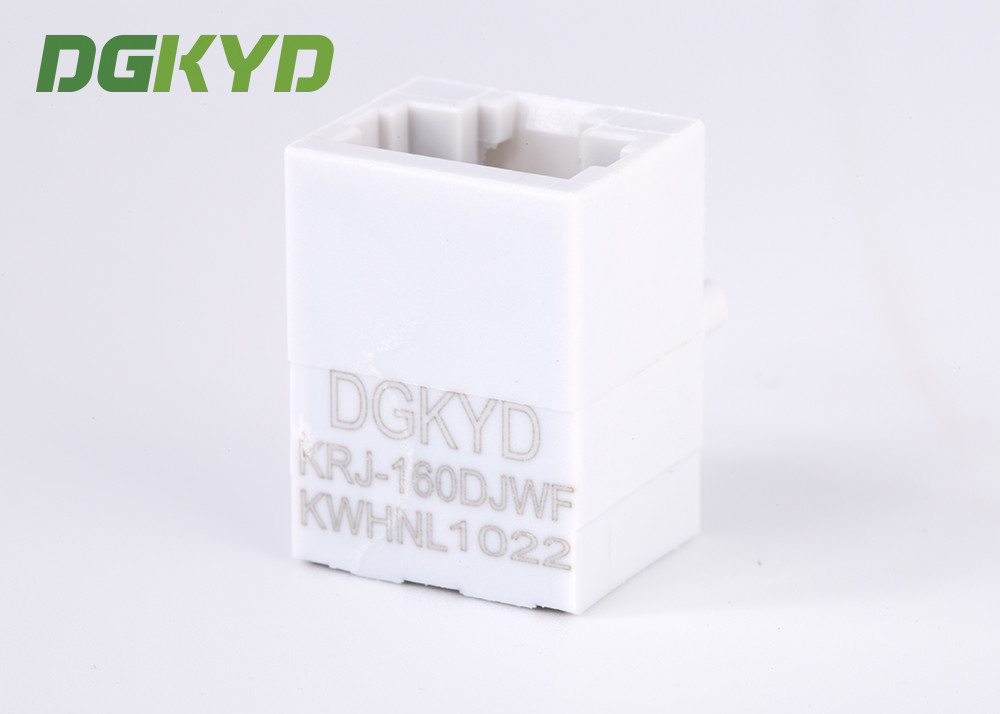

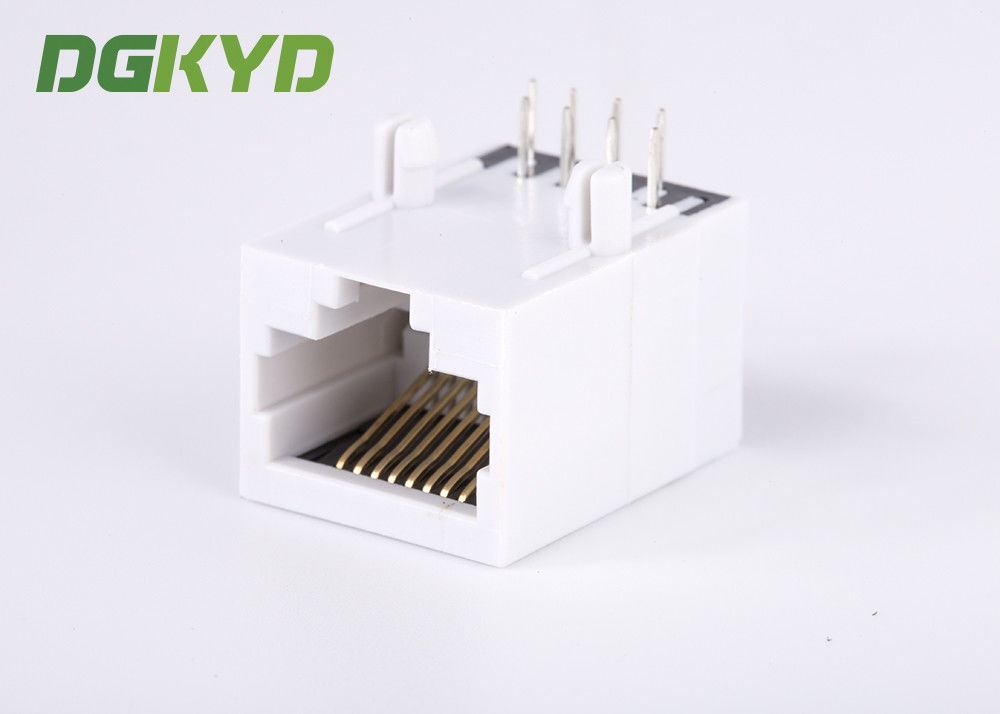

Unshield white housing cat 5e RJ45 single port Ethernet Jack with Magnetics 100 base-tx RJ45 With Transformer

Product Description

90 Degree RJ45 Ethernet Jack Network Port Unshield with Magnetics white color

Descriptions:

• 10/100Base-Tx RJ45 single port 1X1 Side Entry (Right Angle) w/o led
• Single port 1X1 Tab-Down RJ45 with internal magnetics
• Internal magnetics are 100% electrically tested for HI-POT and functionality
• Suitable for CAT5&6 fast Ethernet Cable or better UTP
• 350uHminimum OCL with 8mA bias current
• High performance for maximum EMI suppression
• Minimum 1500Vrms isolation per IEEE 802.3 requirement
•  ROHS-6 peak wave solder temperature rating 260℃
• Operating temperarure range :-40℃ to +85℃
• Storage temperature range :-40℃ to +85℃
• Number of positions:8
• Number of contacts loaded:8
• Shield:NO
• Rohs compliant(GP)
• Length:20.6mm(0.81inch)

Material specifications:

• Plastic core:Glass fiber filler PBT White(UL94V-0)
• Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
• PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
• Housing:Phenolic, PBT White(UL94V-0)

Applications:

• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL／ADSL and so on.
