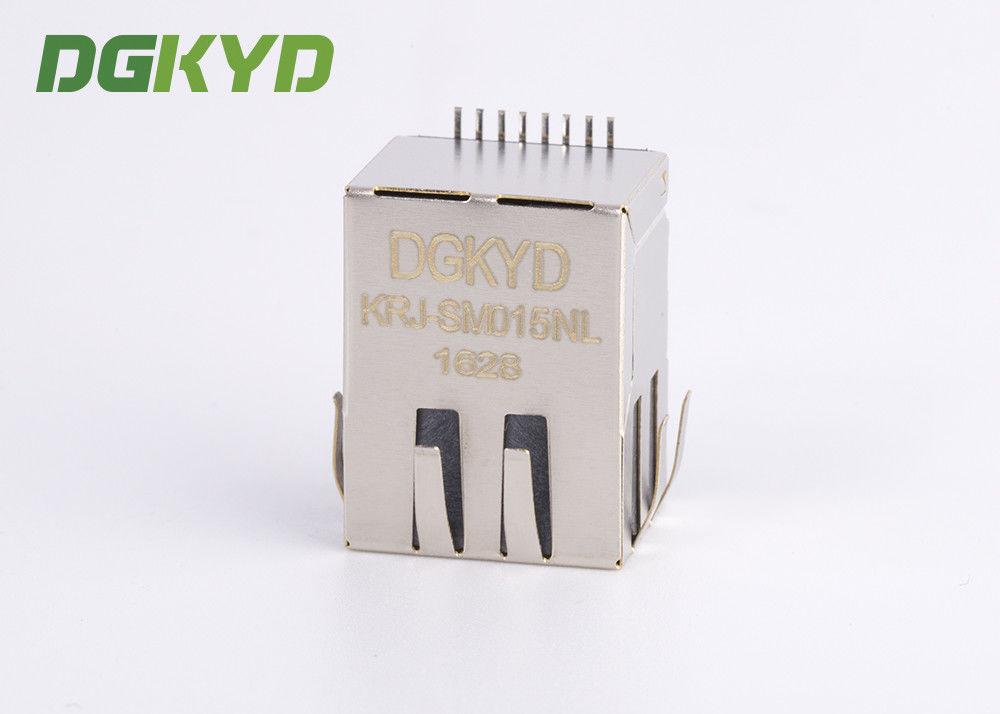

100 Base-Tx Low Profile SMD RJ45 Connector With Network Filter For MODEM

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-SM015NL

Detail Information

Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc Feature: Shielded RJ45 Network Port
OEM/ODM: Yes Type: Multi Pin Rj45 Magjack
Gender: Rj45 Receptacle Product Name: RJ45 Modular Jack
High Light:

poe rj45 jack

,

network jack rj45

,

Low Profile SMD RJ45 Connector

Product Description

MODEM SMD 100base tx rj 45 / Network Filter Magnetic Jack With Transformer

P/N:KRJ-SM017NL

100 Base-Tx Low Profile SMD RJ45 Connector With Network Filter For MODEM 0100 Base-Tx Low Profile SMD RJ45 Connector With Network Filter For MODEM 1100 Base-Tx Low Profile SMD RJ45 Connector With Network Filter For MODEM 2

  • 1X1 10/100Base-Tx SMD RJ45 single port Side Entry  without LED
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant
  • Length:21.3mm
