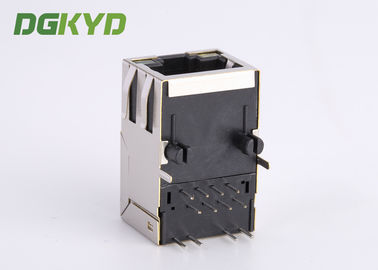

10/100 BASE Single Port RJ45 Magnetics Connector Ethernet Modular Jack Customized

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-256SHGYENL

Detail Information

Speed: Cat 5 / 5e Latch: Tab Up
Port: 1x1 Application: Signal
Mount Style: Dip Shield: Yes
High Light:

gigabit ethernet rj45

,

rj45 connector with magnetics

,

RJ45 Magnetics Ethernet Modular Jack Customized

Product Description

Single Port Magnetic RJ45 Ethernet Sockets Modular Connector

10/100 BASE Single Port RJ45 Magnetics Connector Ethernet Modular Jack Customized 010/100 BASE Single Port RJ45 Magnetics Connector Ethernet Modular Jack Customized 110/100 BASE Single Port RJ45 Magnetics Connector Ethernet Modular Jack Customized 2



Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Note:RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above



Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,netbridge,computer,telecommunication, MODEM, HomePNA,DSL/ADSL and so on.

FOR example:

10/100 BASE Single Port RJ45 Magnetics Connector Ethernet Modular Jack Customized 3



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
