12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack

Product Details:
Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-52F804NL
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day

Detail Information

Speed: CAT 3/5/6 Latch: Vertical Entry
Shield: YES Height: 12.9mm
Highlight:

rj45 lan connector

,

rj45 8p8c connectors

,

Vertical Insertion Rj45 Lan Jack

Product Description

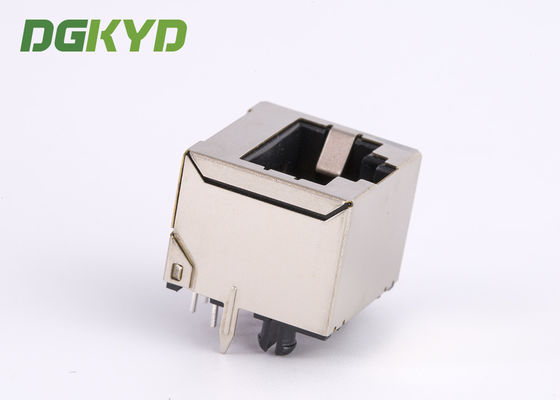

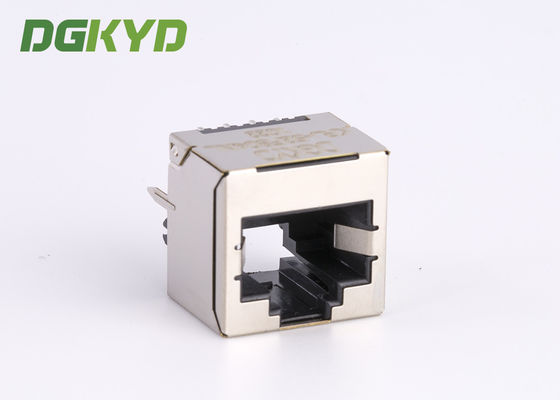

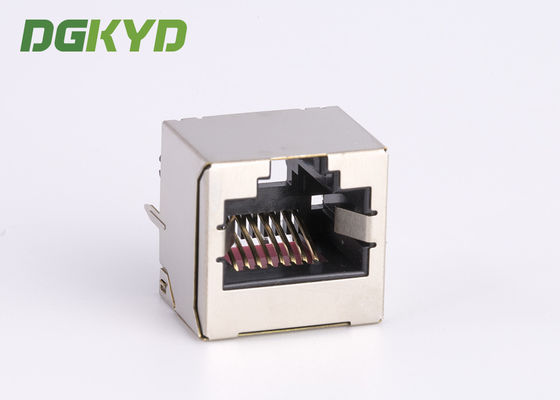

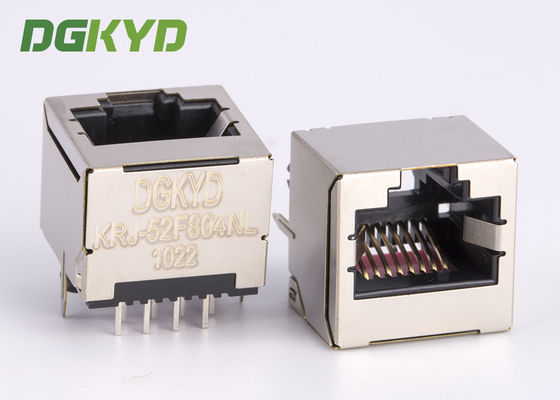

 12.9mm height extra low 180 degree RJ45 keystone jack top entry ethernet connector

12.9mm Height Extra Low Vertical Insertion Rj45 Lan Jack Top Entry Keystone Jack 0



Material:

   1. Housing :PBT(UL94V-0),PA66(UL94V-0),PA46(UL94V-0) optional

   2. Contact Wire:Diameter 0.45mm phosphor bronze gold plating over nickel,0.35mm thickness phosphor bronze alloy selective gold plating over nickel
   3.Shield:0.20~0.25mm thickness brass with tin plated
   4.Gold Plating :3u inch ,6u inch,15u inch,30u inch,50u inch



Applications:

• Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL/ADSL and so on.
