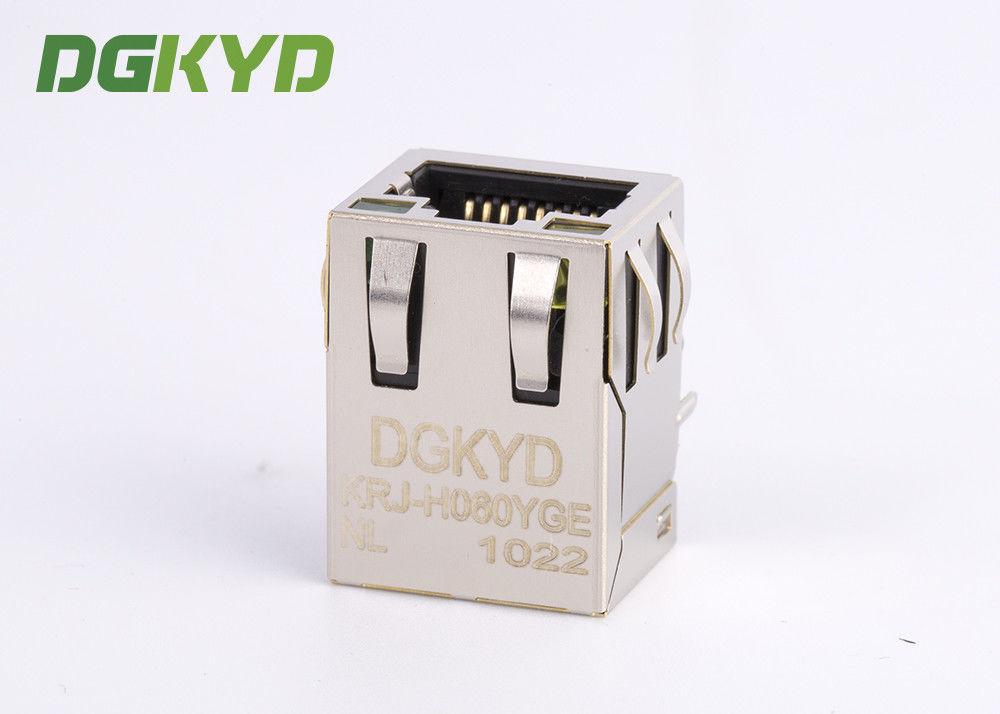

Modular jack RJ45 ethernet connector with Lan transformer PCB Mount RJ45

Name: Modular jack RJ45 ethernet connector with Lan transformer PCB Mount RJ45
Brand: DGKYD
SKU: KRJ-H060YGENL
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (104 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-H060YGENL

Detail Information
Performance:	Cat 5/5e	Port Configuration:	1X1
Latch:	Up	Connector Length:	21.35mm
High Light:	rj45 connector pcb , rj45 connector pcb mount

Product Description

Modular RJ45 PCB Jack With Lan Transformer , PCB Mount RJ45

10/100Base-Tx RJ45 single port 1X1 side entry
Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shieded:YES
Rohs compliant
Length:21.35mm
