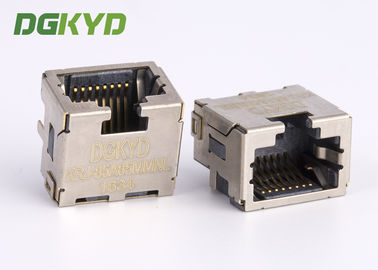

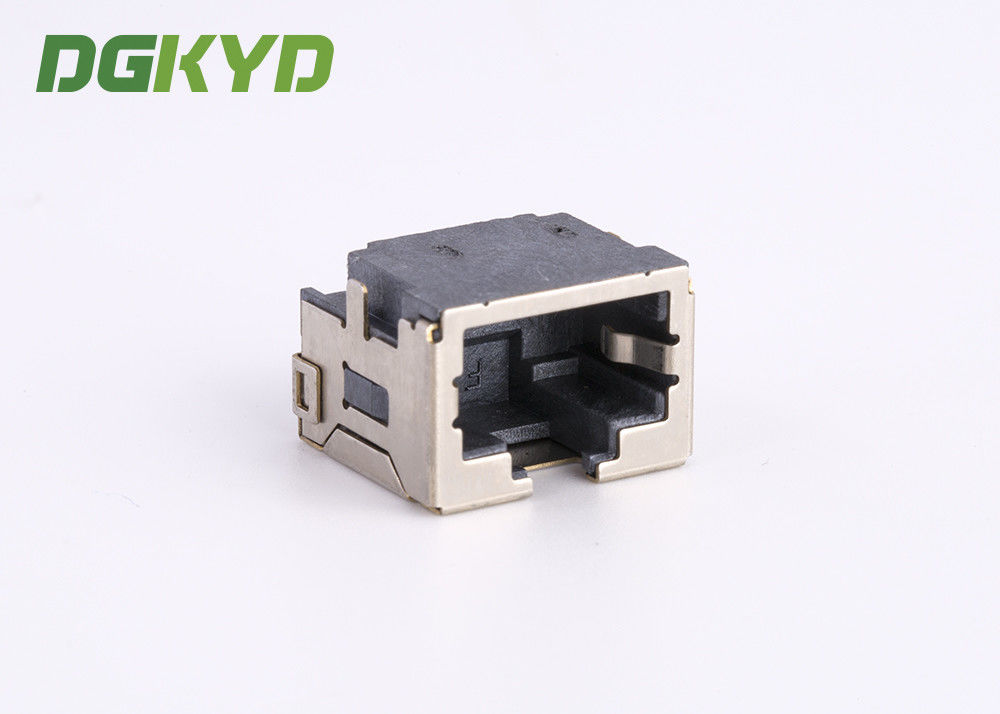

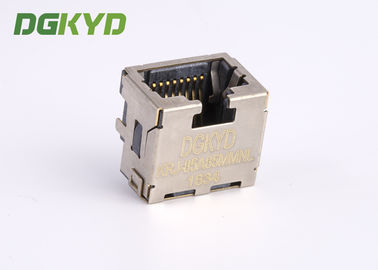

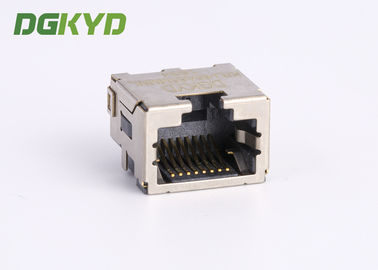

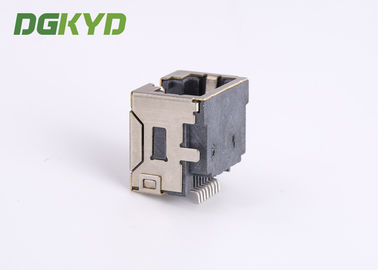

Custom Shield 8p8c SMD / SMT Rj45 Keystone Jack Extra Low Profile Ethernet Connector

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-85A85MMNL

Detail Information

Modular Jack & Plug Interface Type: RJ45 Without Transformer Connector Style: Jack
Gender: Female Shielded: YES
Height Profile: Extra Low Profile Performance Category: Cat 3/5/6
High Light:

poe rj45 jack

,

rj45 connector jack

Product Description

Fully shield rj45 extra low profile LAN jack, 8p8c ETHERNET SMD/SMT CONNECTOR

ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP NONE
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE SMD/SMT
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION N/A
LATCH ORIENTATION LATCH UP
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD FLASH PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK























































Applications:

  • Programmable Logic Controllers
  • IO Modules
  • Servo Drive
  • Industrial PC
  • All Industrial applications requiring Ethernet or RJ45 connectivity



► Product Drawing


Custom Shield 8p8c SMD / SMT Rj45 Keystone Jack Extra Low Profile Ethernet Connector 0





"As automation and the need for connectivity increases in factories worldwide, our engineers continue to develop reliable solutions for industrial Ethernet applications that help customers improve connectivity, reduce downtime and are more cost-effective"
