Gigabit 10 Pin RJ45 Ethernet Modular Jack female with LED for network card

Contact Now

Gigabit 10 Pin RJ45 Ethernet Modular Jack female with LED for network card

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	KRJ-SH329GGOENL

Detail Information
LEDS/EMI Fingers:	For Optional	Feature:	High Performance With Magnetics
RJ45 Suitable:	For CAT5&6 Ethernet Cable Or UTP	Application:	Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices
Gender:	Female RJ45	Product Name:	RJ45 Ethernet Jack
High Light:	rj45 ethernet port , multi rj45 connector , RJ45 Ethernet Jack Modular

Product Description

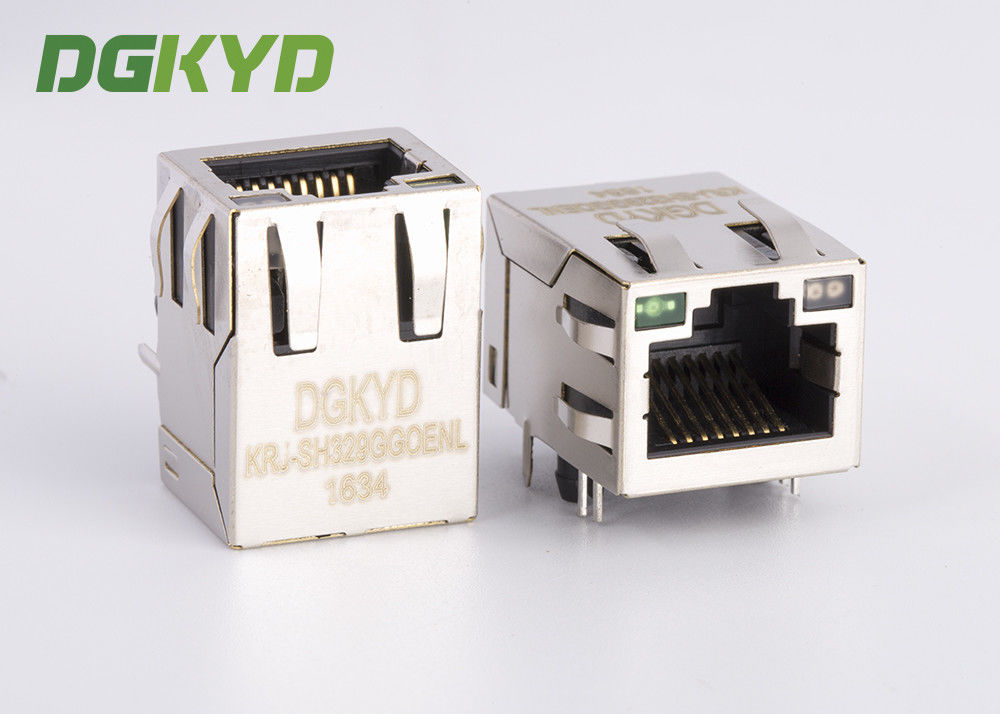

Gigabit 10 Pin RJ45 Ethernet Modular Jack female with LED for network card

Part Number	KRJ-SH329GGOENL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Down
Filter	With Filter	LED Option	With LED
LED Color	Yellow & Green	Panel Stops	Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T	Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single	Number of Positions	10
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

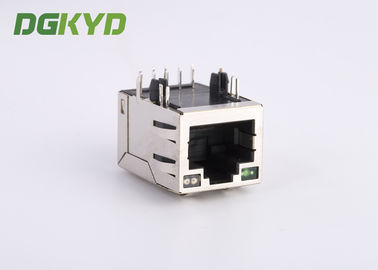

Gigabit 10 Pin RJ45 Ethernet Modular Jack female with LED for network card 0

Applications:

Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,

fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,

computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Gigabit 10 Pin RJ45 Ethernet Modular Jack female with LED for network card 3
