Metal Shield USB RJ45 Connector With Gigabit Ethernet Transformer

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-008QGYGUSBNL

Detail Information

Product Name: RJ45 Shielded Connector Feature: Metal Shielded, Pcb MOUNTABLE Rj45 Jack
Rj45 Port Structure: USB 3.0 + RJ45 LED Color: Green & Yellow
Gender: Female Applications: Switch,transceiver,laptop,computer RJ45 And Other Devices
High Light:



FCC USB RJ45 Connector


USB3.0 RJ45 Shielded Connector

Product Description

Metal Shield USB RJ45 Connector With Gigabit Ethernet Transformer


Metal shield stacked USB RJ45 Connector with gigabit ethernet transformer


China manufacturer KRJ-008QGYGUSBNL metal shielded USB RJ45 Connector, cat6, with LEDs

  • Internal magnetics are 100% electrically tested for HI-POT and functionality

  • 350uHminimum OCL with 8mA bias current

  • High performance for maximum EMI suppression

  • Minimum 1500Vrms isolation per IEEE 802.3 requirement

  • ROHS-6 peak wave solder temperature rating 260℃

  • Operating temperarure range :0℃ to +70℃

  • Storage temperature range :-40℃ to +85℃

  • Length:29.0mm

Electrical Specifications at 25℃
.Insertion Loss:1-100MHZ -1.0dBmax
.Rturn Loss:1-30MHZ -16.0dBmin
30-60MHZ -14.0dBmin
60-80MHZ -10.0dBmin
.Cross Talk:1-30MHZ -40.0dBmin
30-60MHZ -35.0dBmin
60-80MHZ -30.0dBmin
.CMR:1-100MHZ -35dBmin
.Hi-pot:1500v AC 6S 1mA
.Turn Ratio:1CT:1CT±3%
.OCL:350uH @100KHZ 100Mv 8mA DC

• Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical
transceiver,IP phone, internet set- top box,internet camera,netbridge,computer,telecommunication,
MODEM,HomePNA,DSL/ADSL and so on.

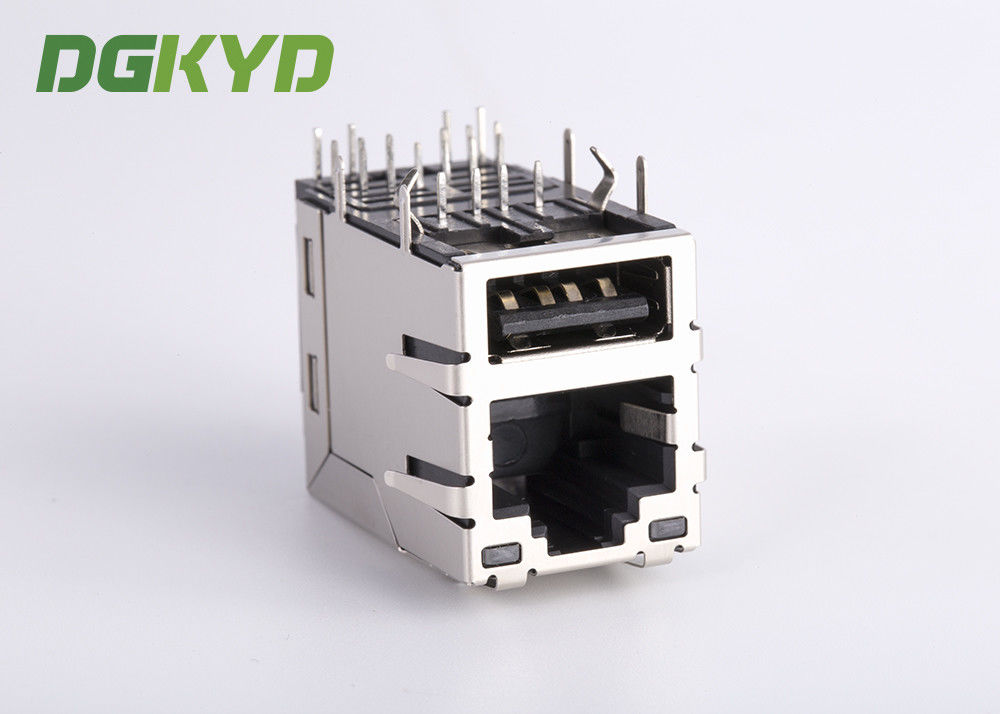

 Metal Shield USB RJ45 Connector With Gigabit Ethernet Transformer 0
