Product Description

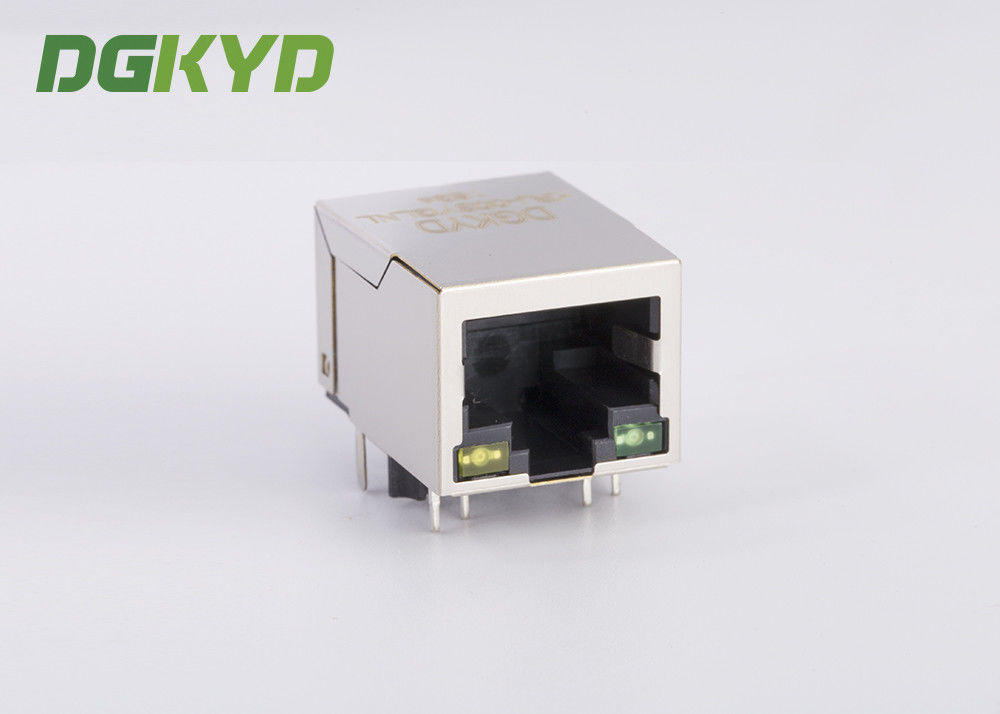

CAT5E Ethernet RJ45 Waterproof Connector Module , Shielded RJ45 Connectors

Descriptions:

• 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with side entry
• Single port 1X1 Tab-Down RJ45 with internal magnetics
• Internal magnetics are 100% electrically tested for HI-POT and functionality
• Suitable for CAT5&6 fast Ethernet Cable or better UTP
• 350uHminimum OCL with 8mA bias current
• High performance for maximum EMI suppression
• Minimum 1500Vrms isolation per IEEE 802.3 requirement
•  ROHS-6 peak wave solder temperature rating 260℃
• Operating temperarure range :0℃ to +70℃
• Storage temperature range :-40℃ to +85℃
• Number of positions:8
• Number of contacts loaded:8
• Shield:YES
• Rohs compliant(GP)
• Length:21.3mm(0.85inch)
• LEDS:YES
• EMI fingers:YES
• LEFT LED:Green,RIGHT LED:Yellow
• Usage:J0011D21BNL/HY911105H/KRJ-003NL

Material specifications:

• Plastic core:Glass fiber filler PBT Black(UL94V-0)
• Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
• PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
• Housing:Phenolic, PBT Black (UL94V-0)
• Metal shell:Copper Alloy ,Tin and Nickel plated
