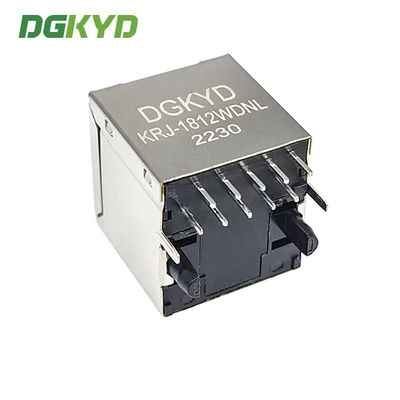

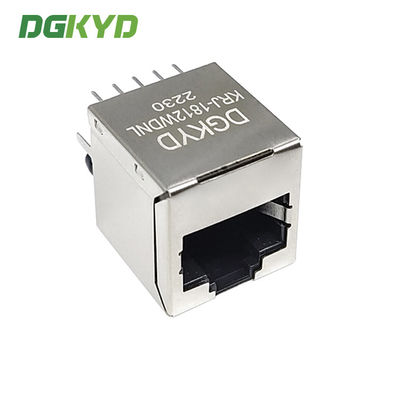

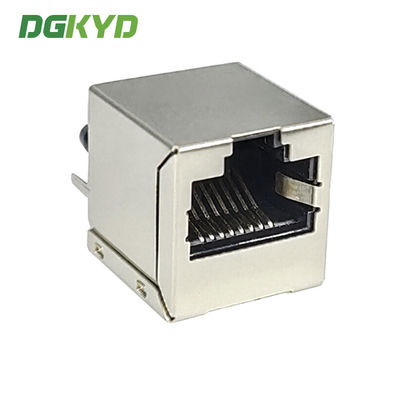

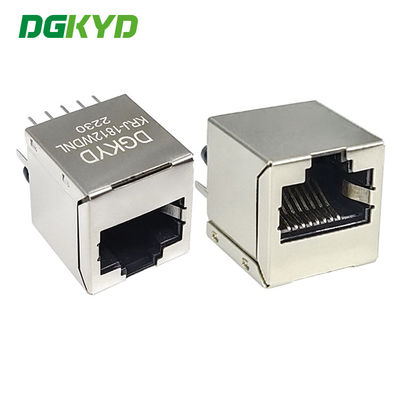

1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-1812WDNL

Detail Information

Category: Modular Jacks Component Type: PCB Jack
Magnetic: Yes Performance Category: Cat5&6
Product Name: Magnetic Jack, Modular Jack 10/8 Insetion Type: 180 Degree/ Vtertical

Product Description

1000 Base-T Magnetic connector module, vertical insertion, metal shielded

ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
SPEED Cat 5/6
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP NONE
PCB MOUNT ANGLE Top Entry
PACKAGE THT
NUMBER OF POSITIONS 10
NUMBER OF PORTS RJ45
NUMBER OF CONTACTS 8
LED OPTION NONE
LATCH UP
KEYED NO
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK/BLUE









































► Product Featrures




RJ45 jacks with integrated magnetics (i.e. wirewound components) capable of meeting the high performance needs of today's telecommunications and networking applications.



• CAT3 to CAT6 connectors are available in shielded and unshielded configurations to support Gigabit Ethernet



► Product Drawing


1000 Base-T ethernet connector Magnetic module, vertical insertion, metal shielded
