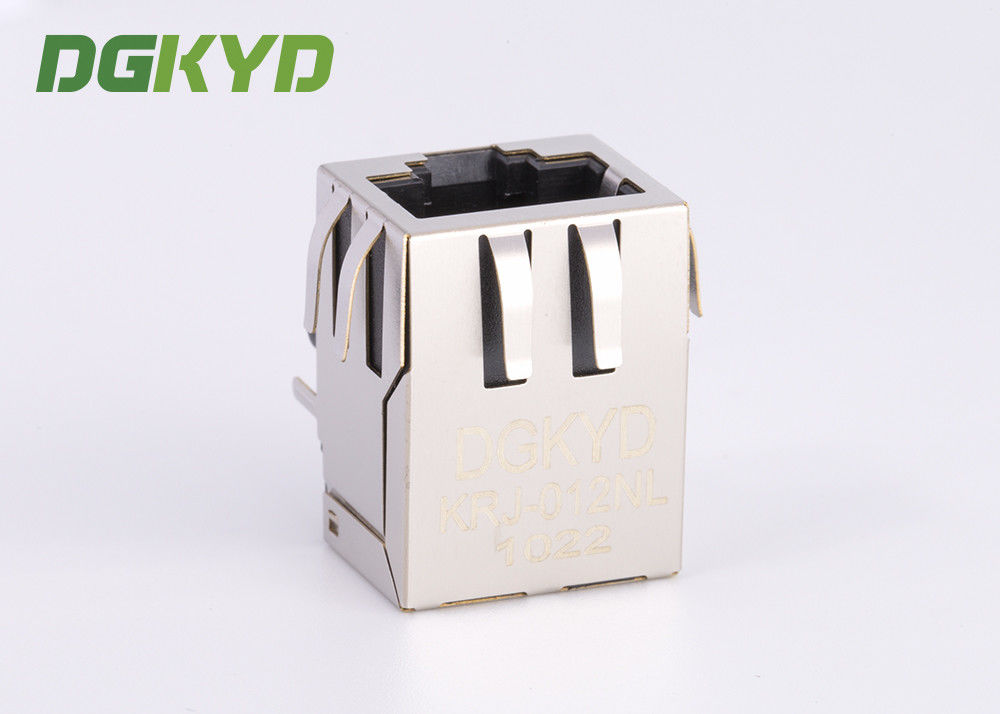

Integrated 100 BASE-TX Lan Filter Rj45 Ethernet Connector Module

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-012NL

Detail Information

Performance: Cat5 Product Name: RJ45 LAN Jack
Port Configuration: Single Port Latch Orientation: Tab Down
High Light:

rj45 lan connector

,

rj45 8p8c connectors

,

Lan Filter Rj45 Ethernet Connector

Product Description

Rj45 Lan Jack, 1x1 Tab Down Integrated RJ45 filter without led for 10/100BASE-TX, Cylindrica Pin

ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION NONE
LATCH ORIENTATION LATCH DOWN
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK















































Integrated 100 BASE-TX Lan Filter Rj45 Ethernet Connector Module 0Integrated 100 BASE-TX Lan Filter Rj45 Ethernet Connector Module 1Integrated 100 BASE-TX Lan Filter Rj45 Ethernet Connector Module 2



RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the

surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger

insert and pull life should be 750 times above.



Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL/ADSL and so on.

For example:

Integrated 100 BASE-TX Lan Filter Rj45 Ethernet Connector Module 3

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
