10/100 Base single port 6P8C RJ45 modular jack ethernet connector with lan filter

China 10/100 Base single port 6P8C RJ45 modular jack ethernet connector with lan filter supplier
10/100 Base single port 6P8C RJ45 modular jack ethernet connector with lan filter supplier 10/100 Base single port 6P8C RJ45 modular jack ethernet connector with lan filter supplier 10/100 Base single port 6P8C RJ45 modular jack ethernet connector with lan filter supplier 10/100 Base single port 6P8C RJ45 modular jack ethernet connector with lan filter supplier 10/100 Base single port 6P8C RJ45 modular jack ethernet connector with lan filter supplier 10/100 Base single port 6P8C RJ45 modular jack ethernet connector with lan filter supplier

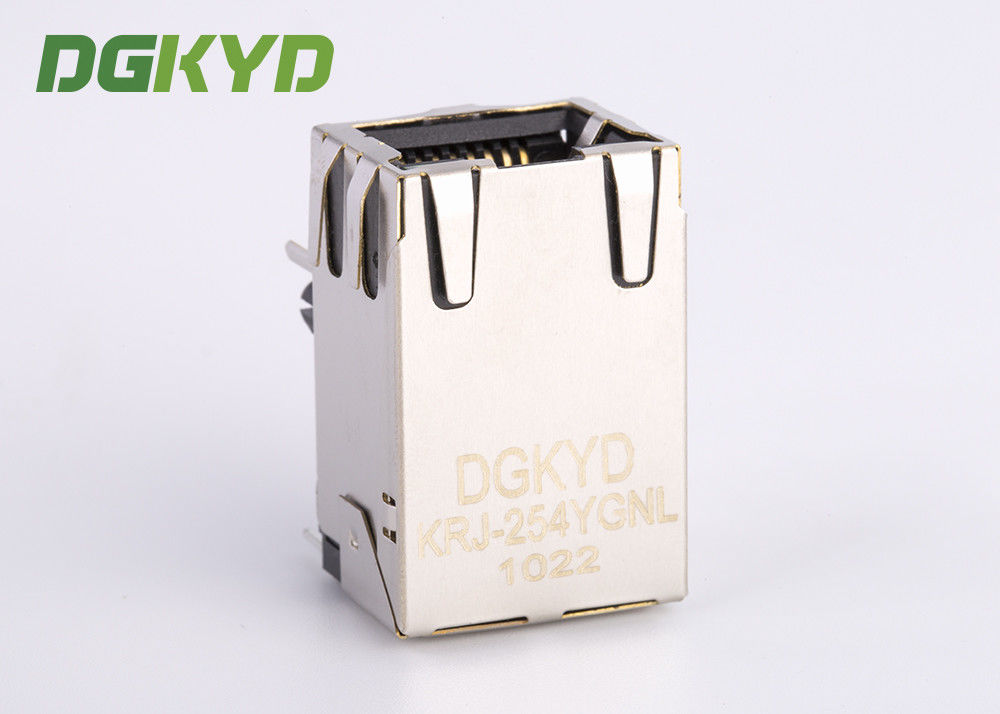

Large Image :  10/100 Base single port 6P8C RJ45 modular jack ethernet connector with lan filter

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-254YGNL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Speed: Cat 5 Pins: 6
Latch: Tab Up Mount Style: PCB Mount

10/100 Base 1X1 single port 6P8C RJ45 jack,  rj45 connector Receiver filter

  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:6
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

.RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the

surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed,

gold finger insert and pull life should be 750 times above



10/100 Base single port 6P8C RJ45 modular jack ethernet connector with lan filter

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,

MODEM,HomePNA,DSL/ADSL and so on.



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
