KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm

China KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm supplier
KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm supplier KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm supplier KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm supplier KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm supplier KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm supplier KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm supplier

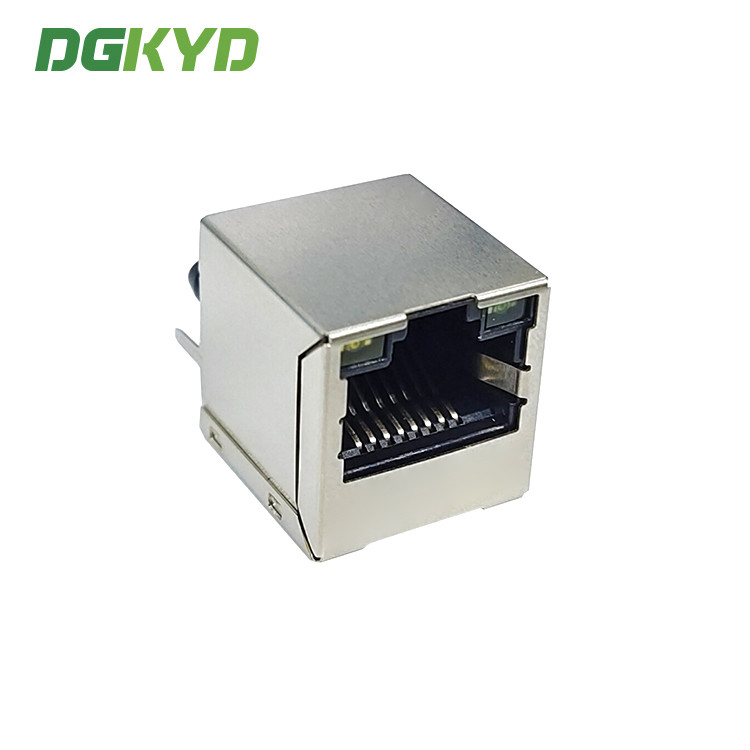

Large Image :  KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-180DNL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
ORIENTATION: Vertical PERFORMANCE: Cat5e
LED: Green / Yellow Position: 8

180 degree 10/100base top entry RJ45 Transmitter Filter, Rj45 Lan Jack with internal magnetics

KRJ-180DNL Top entry cat 5/5e Rj45 Lan Jack with internal magnetics , height 17.25mm



Material specifications:

  • Plastic core:Glass fier filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Electrical Specifications at 25℃

.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH  @100KHZ 100Mv 8mA   DC



Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL/ADSL and so on.



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, 0 defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,pls do not hesitate to contact us by email or TradeManager. We will asap reply with in 24h.
