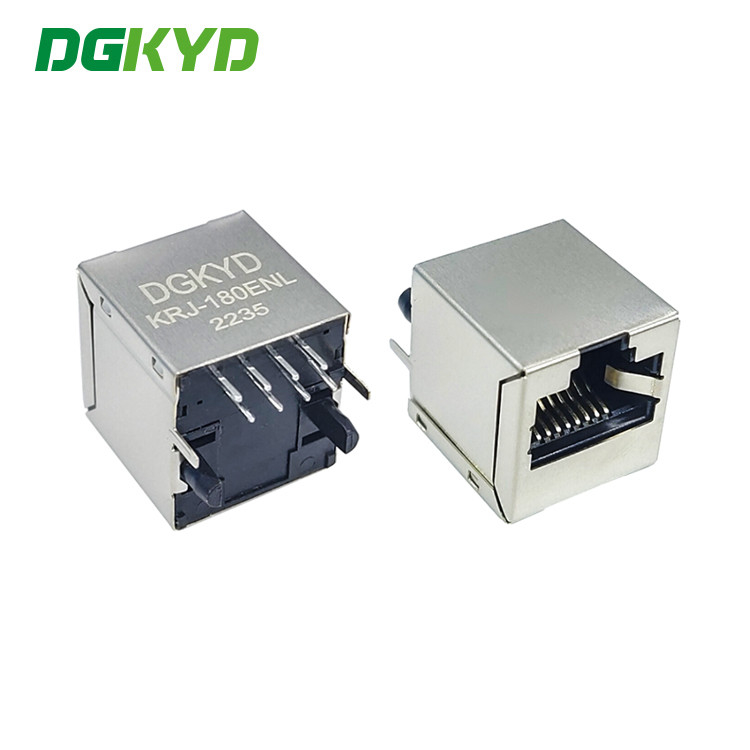

180 Degree Vertical Entry 10/100 Base Magnetic RJ45 Connector Module Shielded

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-180ENL

Detail Information

Product Name: RJ45 Shielded Connector Feature: Metal Pcb MOUNTABLE Rj45 Jack, Vertical Entry
LEDS/EMI Fingers: Customized Gender: Female
Applications: Switch,transceiver,laptop,computer RJ45 And Other Ethernet Devices Height: 16.85mm

Product Description

180 Degree Vertical Entry 10/100 Base Magnetic RJ45 Connector Module Shielded

180 Degree Vertical Entry 10/100 Base Magnetic RJ45 Connector Module Shielded




Part Number
KRJ-180ENL
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
Tab up
Filter
With Filter
LED Option
Without LED
LED Color
N/A
Panel Stops
Without Panel Stops
Shielded
Yes
Applies To 
Printed Circuit Board
Performance Speed
10/100/1000 BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
Single
Number of Positions 
8
Jack Configuration
1 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u/15u/30u/50u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
PBT Polyester
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0


► Our Service


World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
