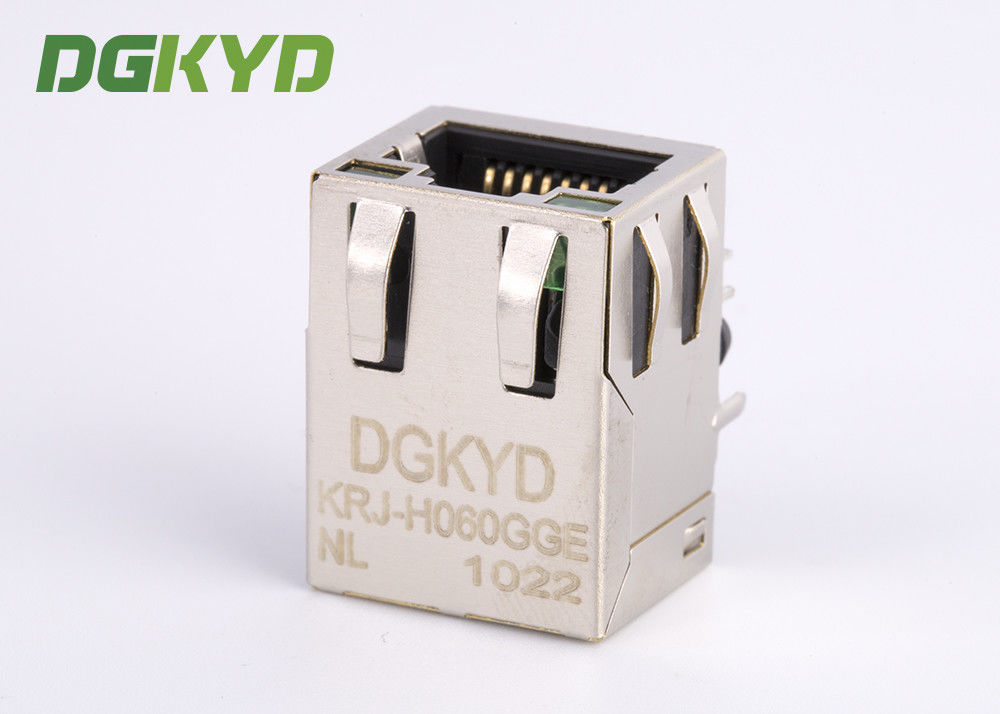

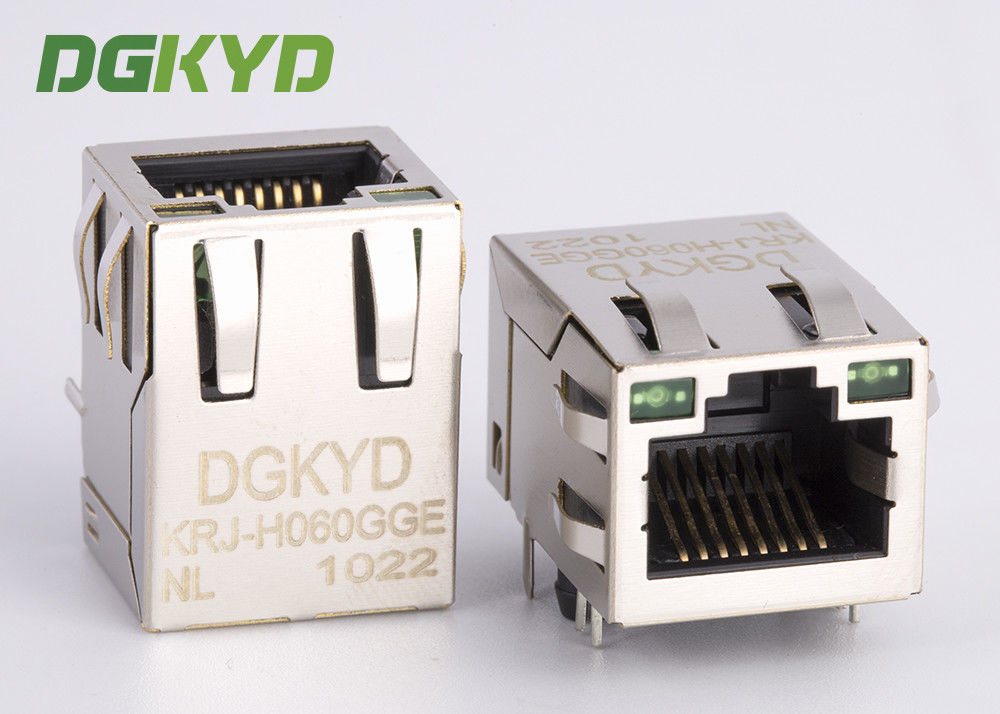

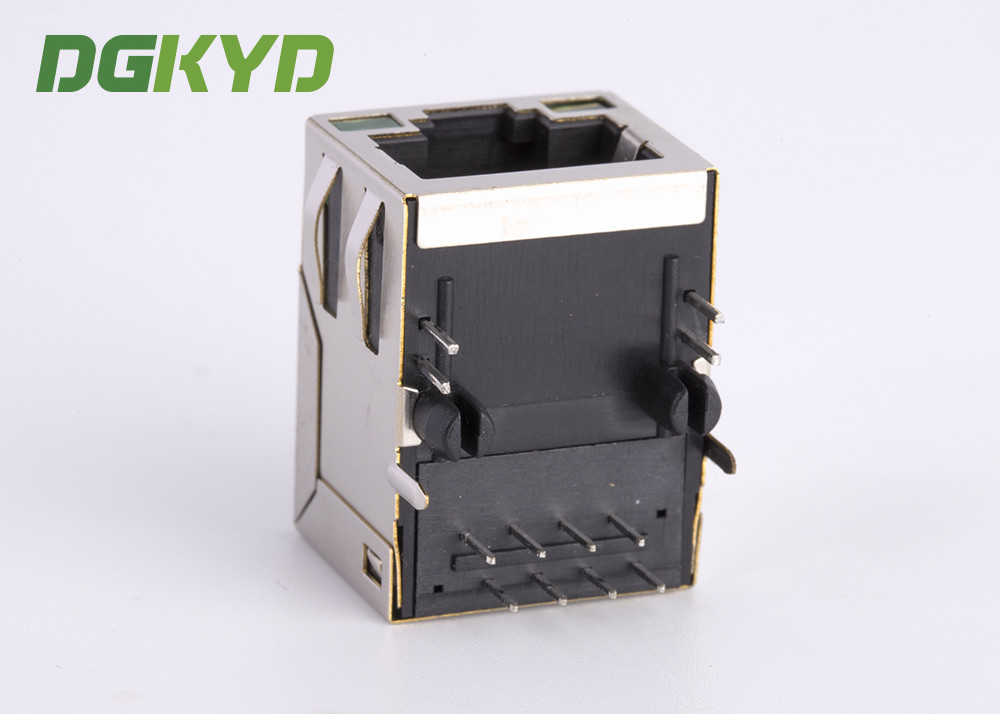

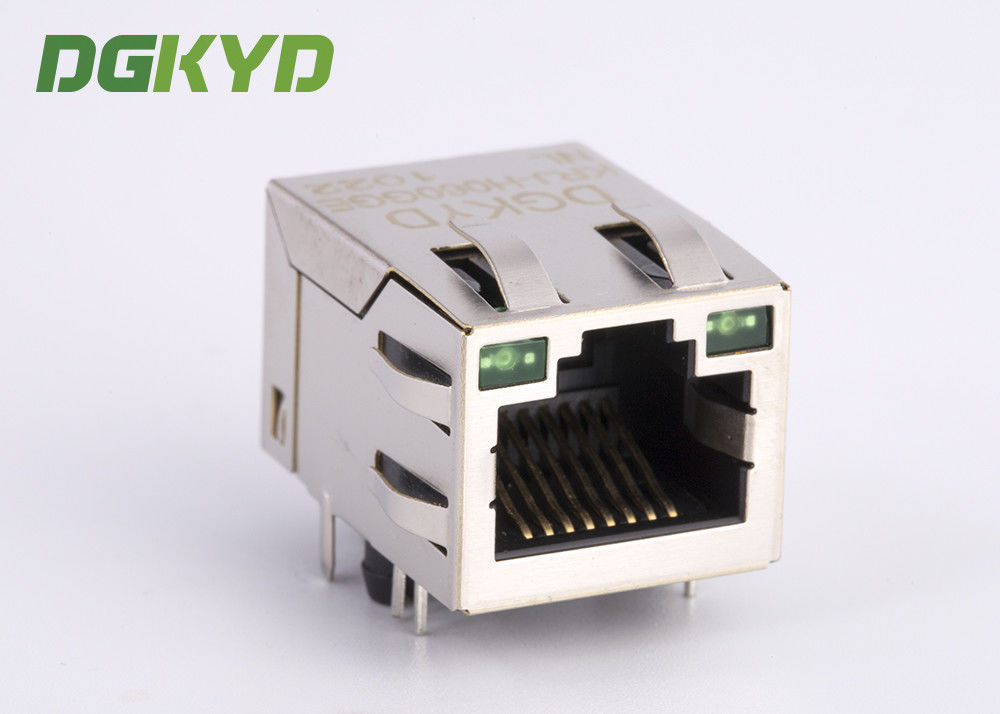

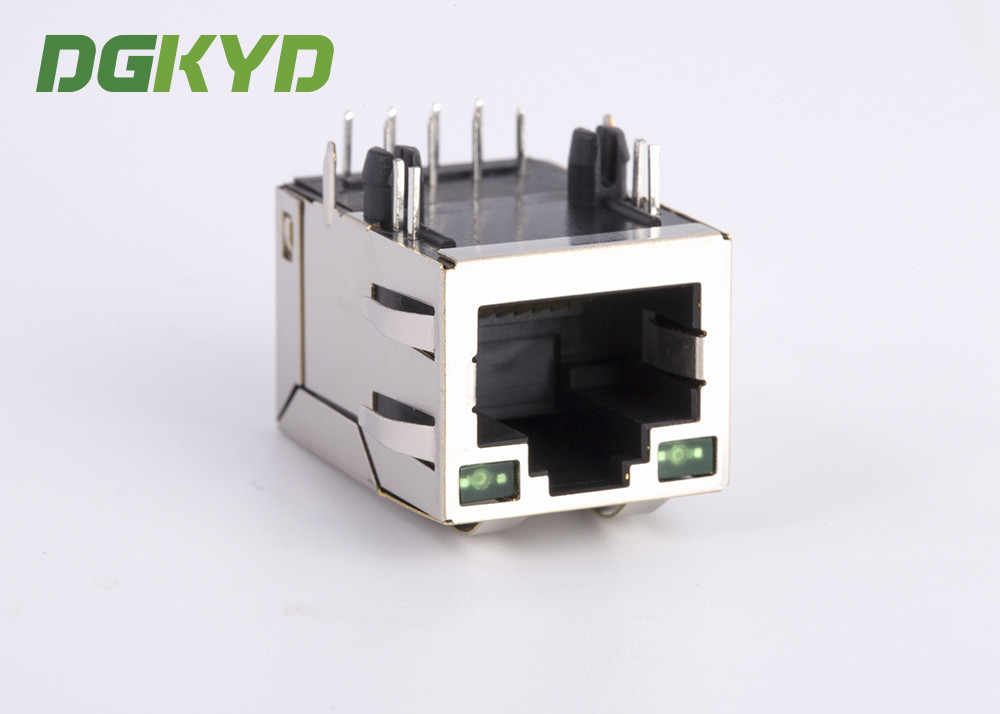

100 Base-t RJ45 jack with discrete transformer PCB Mount for Net Bridge

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-1012NL

Detail Information

Product Name: RJ45 With Transformer No.Port: Single Port
Type: RJ45 Housing: Phenolic, PBT Black (UL94V-0)
Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS Shielded: Yes

Product Description

Net Bridge 100Base-t RJ45 with Transformer , Surface Mount

Material specifications:





  • Plastic core:Glass fiber filler PBT Black(UL94V-0)



  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold



  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl



  • Housing:Phenolic, PBT Black (UL94V-0)

  • Metal shell:Copper Alloy ,Tin and Nickel plated



  • 10/100Base-Tx RJ45 single port 1X1 with LED Side Entry (Right Angle)
  • Single port 1X1 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant

100 Base-t RJ45 jack with discrete transformer PCB Mount for Net Bridge

For example:



100 Base-t RJ45 jack with discrete transformer PCB Mount for Net Bridge
