Yellow Color Unshielded Rj45 Modular Jack With Transformer , 100 Base - T

China Yellow Color Unshielded Rj45 Modular Jack With Transformer , 100 Base - T supplier
Yellow Color Unshielded Rj45 Modular Jack With Transformer , 100 Base - T supplier Yellow Color Unshielded Rj45 Modular Jack With Transformer , 100 Base - T supplier Yellow Color Unshielded Rj45 Modular Jack With Transformer , 100 Base - T supplier Yellow Color Unshielded Rj45 Modular Jack With Transformer , 100 Base - T supplier Yellow Color Unshielded Rj45 Modular Jack With Transformer , 100 Base - T supplier Yellow Color Unshielded Rj45 Modular Jack With Transformer , 100 Base - T supplier

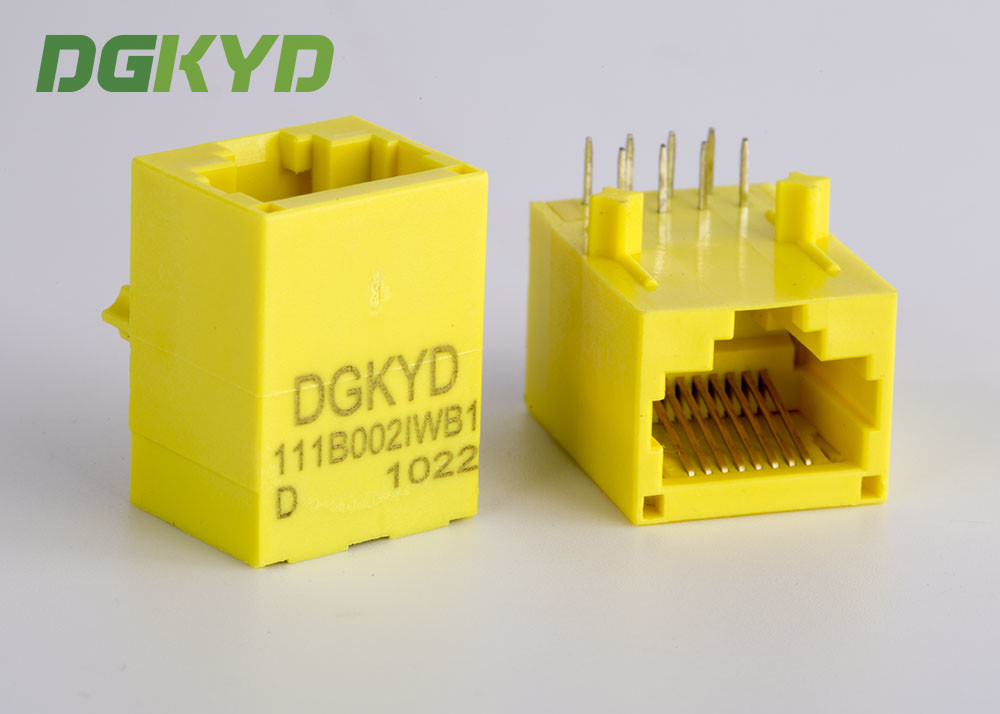

Large Image :  Yellow Color Unshielded Rj45 Modular Jack With Transformer , 100 Base - T

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: DGKYD111B002IWB1D

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Contact Plating: 6U Gold Gender: Female
Product Name: RJ45 Ethernet Connector Insertion Loss: 1-100MHz
Turns Ratio: 100kHz / 100mV TR: 1:1



Yellow Color Unshielded Rj45 Modular Jack With Transformer , 100 Base - T




Part Number DGKYD111B002IWB1D Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch down
Filter With internal filter LED Option Without LED
Performance Speed 100 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  1 port Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit



Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Yellow



Eigenschaften / general specifications :



Betriebstemp. / Operating temperature: -40°C - +85°C
Hochspannungsprüfung / Hipot test: 1500Vrms 1min. Geeignet für 10/100Base-TX gemäß IEEE 802.3u /Compliant with IEEE 802.3u for 10/100Base-TX-Applications
Auto MDIX fähig / Auto MDIX capable



This electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety and reliability is especially required or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be informed before the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.



► Product Drawing

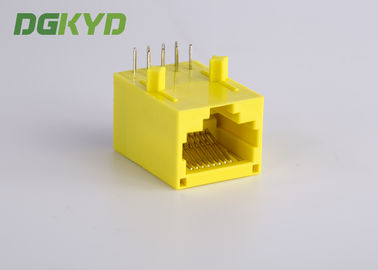

Yellow Color Unshielded Rj45 Modular Jack With Transformer , 100 Base - T
