Shielded Magnetics Rj45 Pcb Connector with Integrated transformer customizable

China Shielded Magnetics Rj45 Pcb Connector with Integrated transformer customizable supplier
Shielded Magnetics Rj45 Pcb Connector with Integrated transformer customizable supplier Shielded Magnetics Rj45 Pcb Connector with Integrated transformer customizable supplier Shielded Magnetics Rj45 Pcb Connector with Integrated transformer customizable supplier Shielded Magnetics Rj45 Pcb Connector with Integrated transformer customizable supplier Shielded Magnetics Rj45 Pcb Connector with Integrated transformer customizable supplier Shielded Magnetics Rj45 Pcb Connector with Integrated transformer customizable supplier

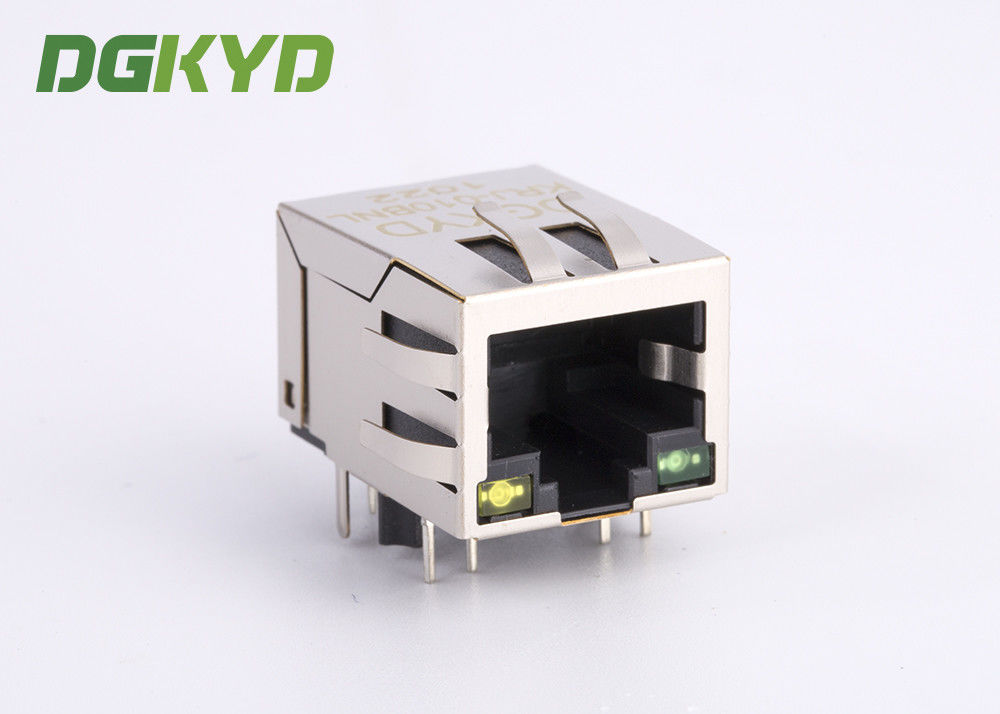

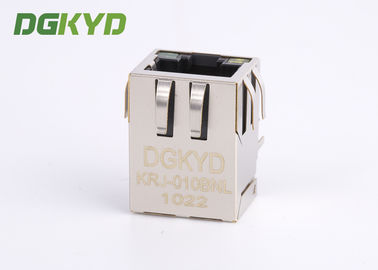

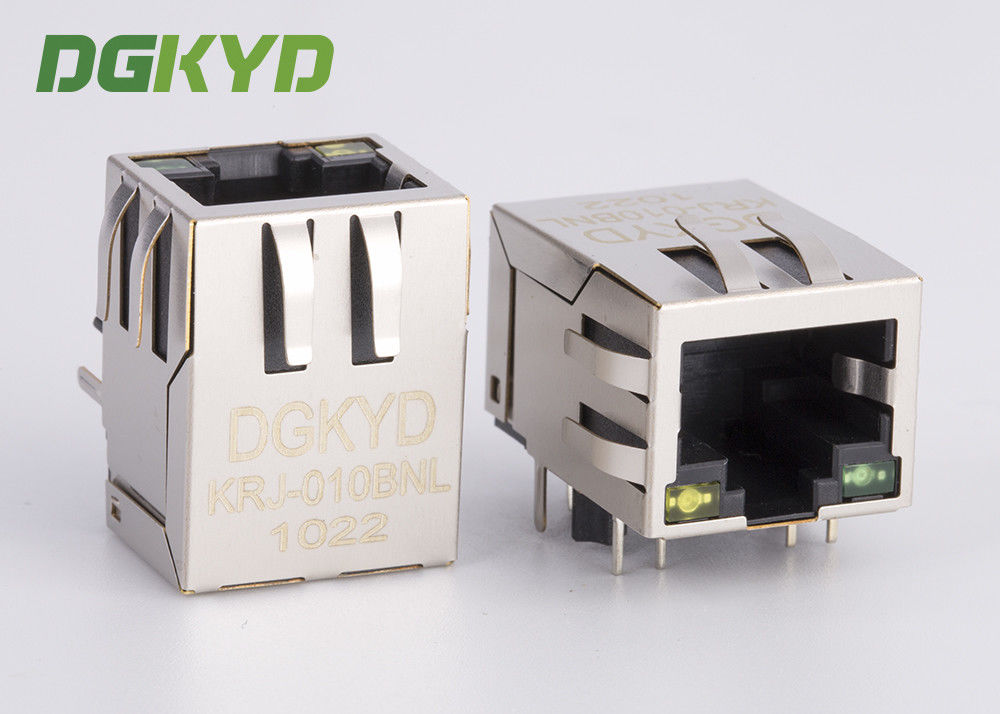

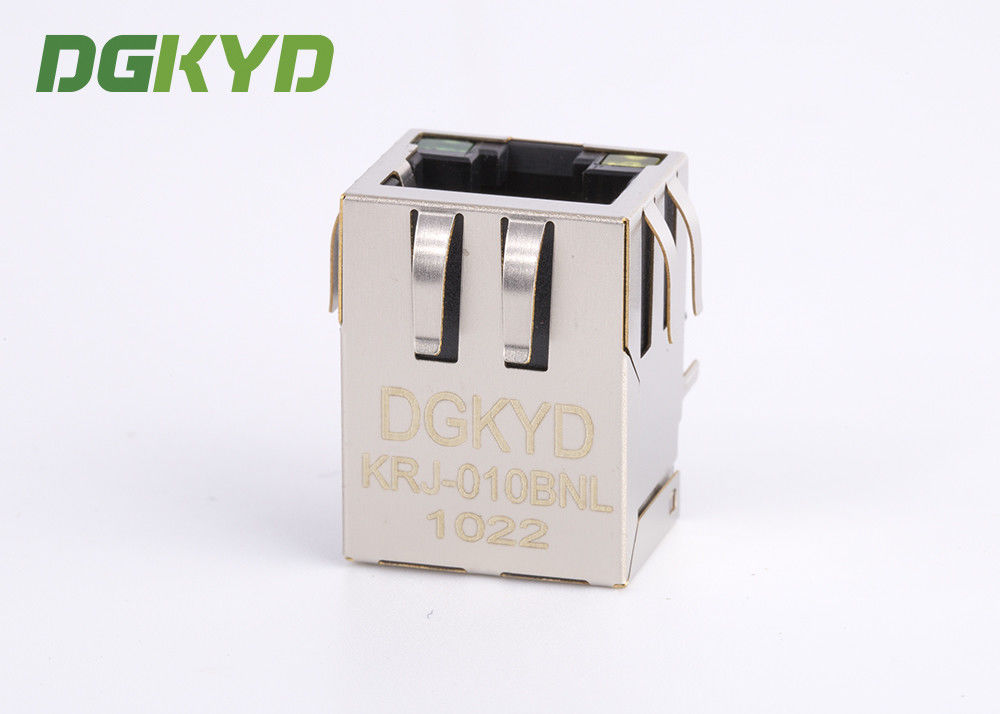

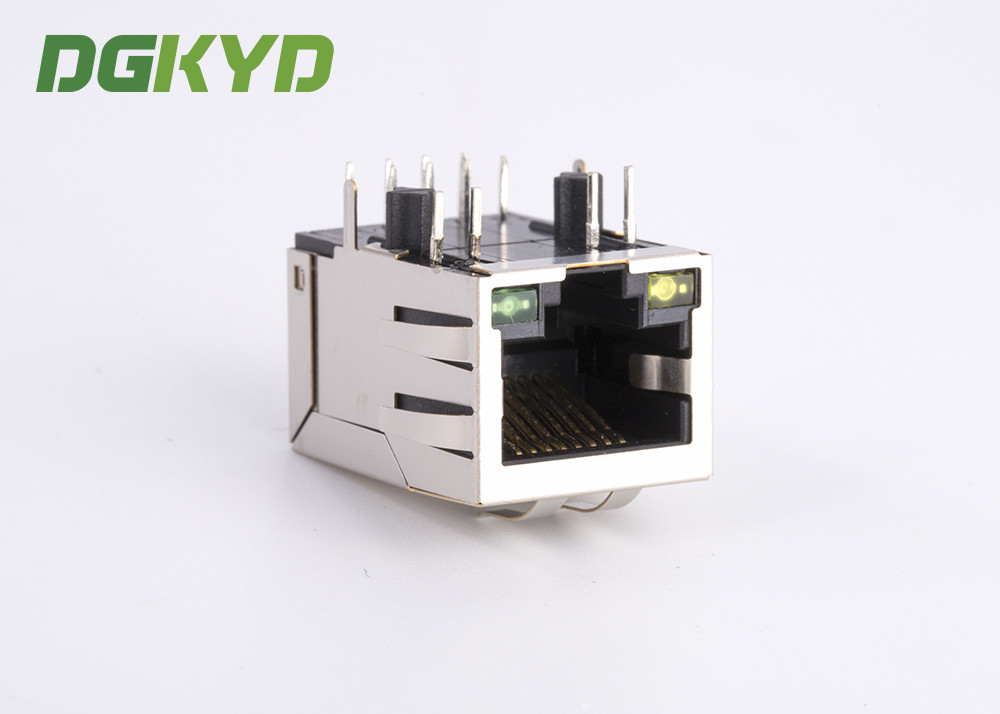

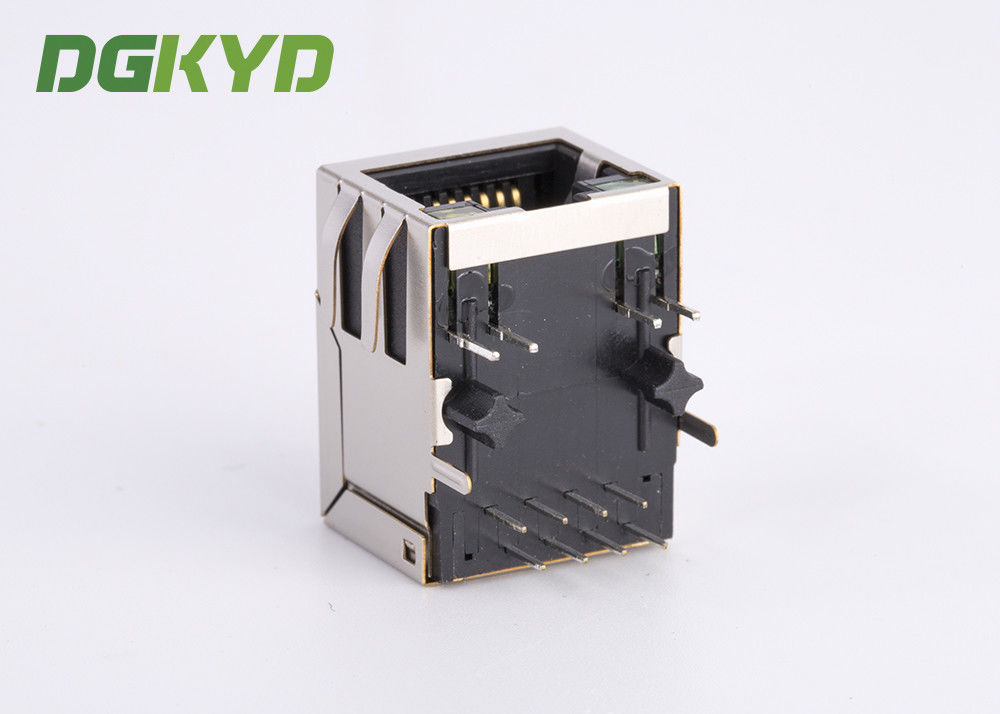

Large Image :  Shielded Magnetics Rj45 Pcb Connector with Integrated transformer customizable

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-010BNL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Gender: Female Aplication: PCB
Type: RJ45 Housing Material: PBT Polyester
Integrated Transformer: Yes Performance: 100 BASE-TX

Magnetics Shielded Rj45 Pcb Connector With Integrated Transformer

Part Number
KRJ-010BNL
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
Down
Magnetics
Yes
LED Option
Y/G
Shielded
Yes
Applies To 
Printed Circuit Board
Performance Speed
10/100 BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
Single
Number of Positions 
8
Jack Configuration
1 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Housing Material 
PBT Polyester
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0

Shielded Magnetics Rj45 Pcb Connector with Integrated transformer customizable
