Single Rj45 Ethernet Jack Integrated Transformer / Common Mode Choke , Og/Y Led

China Single Rj45 Ethernet Jack Integrated Transformer / Common Mode Choke , Og/Y Led supplier
Single Rj45 Ethernet Jack Integrated Transformer / Common Mode Choke , Og/Y Led supplier Single Rj45 Ethernet Jack Integrated Transformer / Common Mode Choke , Og/Y Led supplier Single Rj45 Ethernet Jack Integrated Transformer / Common Mode Choke , Og/Y Led supplier Single Rj45 Ethernet Jack Integrated Transformer / Common Mode Choke , Og/Y Led supplier Single Rj45 Ethernet Jack Integrated Transformer / Common Mode Choke , Og/Y Led supplier Single Rj45 Ethernet Jack Integrated Transformer / Common Mode Choke , Og/Y Led supplier

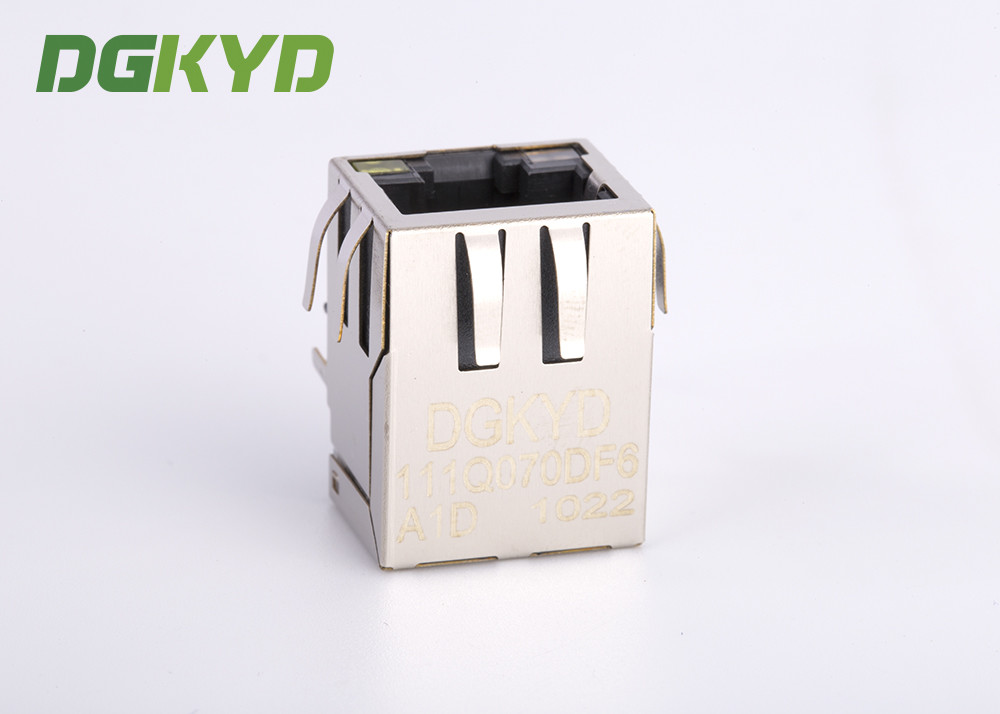

Large Image :  Single Rj45 Ethernet Jack Integrated Transformer / Common Mode Choke , Og/Y Led

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: DGKYD111Q070DF6A1D

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Modular Jack & Plug Interface Type: RJ45 Connector With Integrated Transformer Port Configuration: Single
Connector Style: Modular Jack Shielded: Yes
Performance Category: 1000BASE-T Latch Orientation: STANDARD(BOTTOM)
Status Indicator: OG/Y LED Number Of Positions: 10

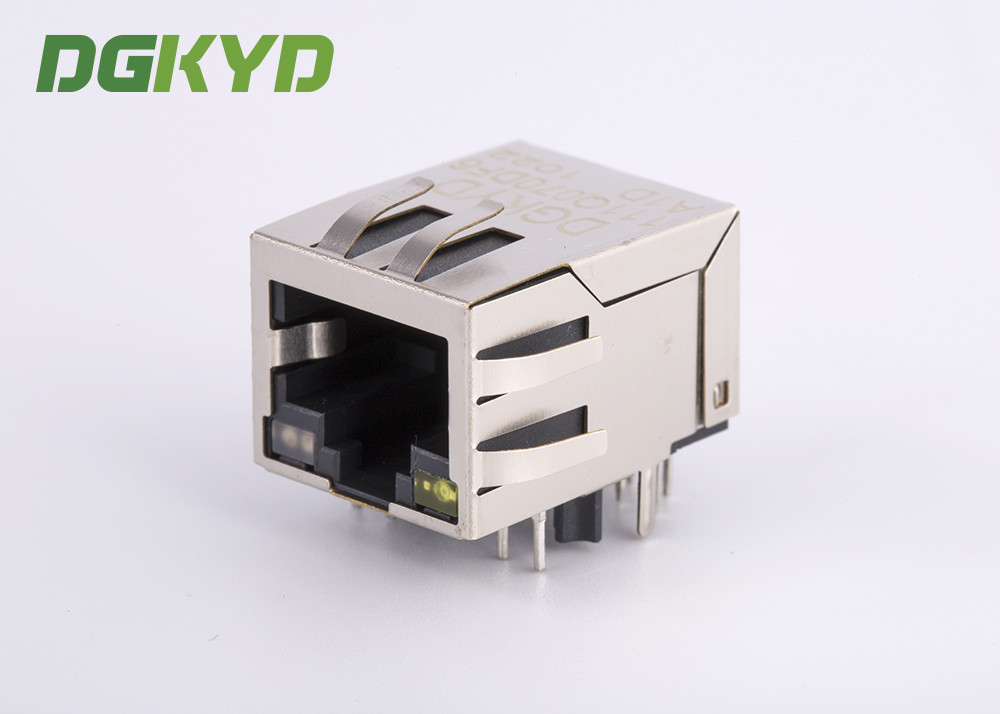

Single Rj45 Ethernet Jack Integrated Transformer / Common Mode Choke , Og/Y Led

ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40 to +85℃
GROUNDING OPTIONS Panel Ground and PCB Ground
SHIELD PLATING MATERIAL NICKEL
SHIELD EMI TABS YES
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PANEL STOP YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION OG/Y
LATCH ORIENTATION LATCH UP
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK





















































► Product Features




Characteristics

  • RJ45 Connector with integrated transformer/
    common mode choke
  • Available in SMD, THT and THT with USB
  • 350µH min. OCL with 8mA bias
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
  • Extended temperature range -40°C to +85°C available
  • PoE/ PoE+



► Product Drawing


Single Rj45 Ethernet Jack Integrated Transformer / Common Mode Choke , Og/Y Led
