1 Port Shielded PoE RJ45 with Transformer ethernet jack 100 base-TX for router

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin : DongGuan of China Brand Name : DGKYD
Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number : KRJ-300POEYGNL

Detail Information

Housing: Phenolic, PBT Black (UL94V-0) Type: RJ45 Female Connector
Plastic Core: Glass Fiber Filler PBT Black(UL94V-0),ROHS Product Name: RJ45 With Transformer
Shield: Yes No.Port: RJ45 Single Port

Product Description

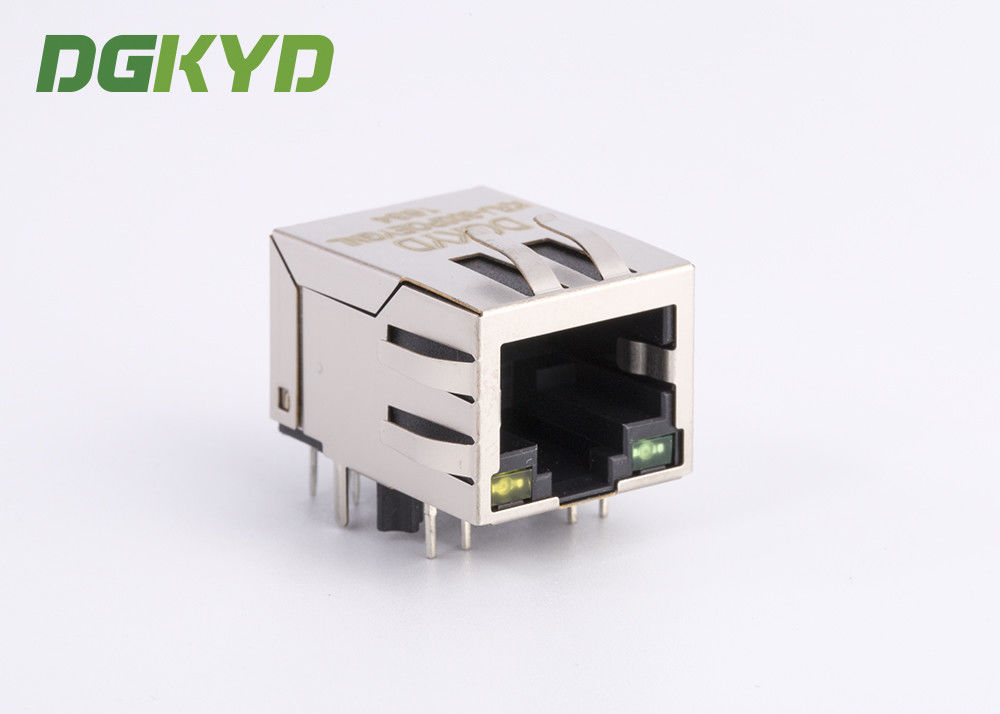

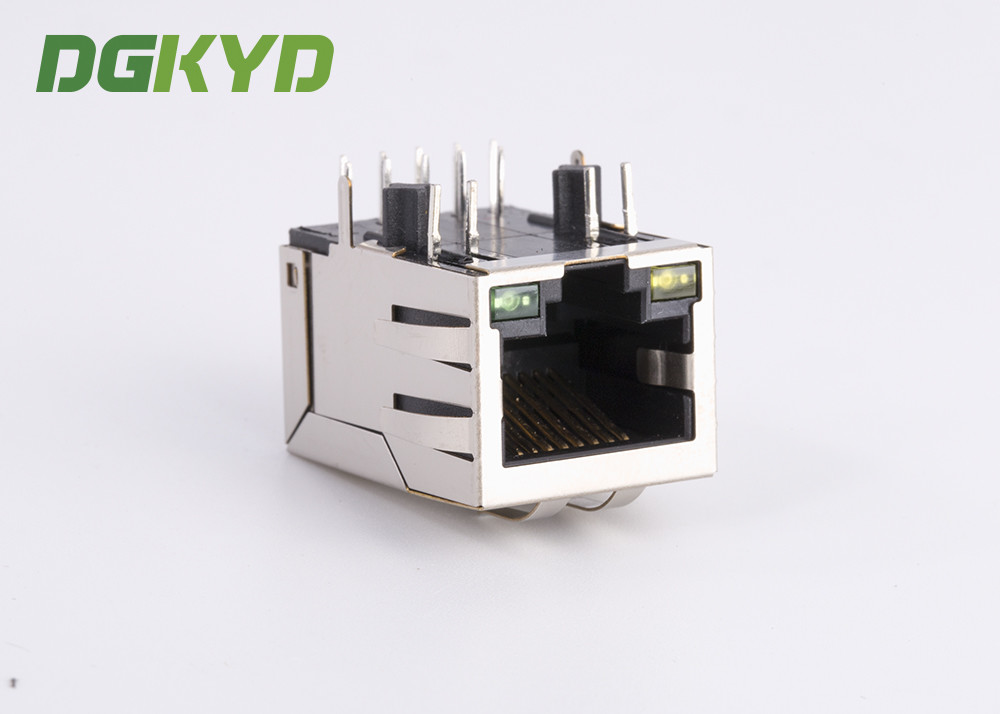

1 Port Shielded PoE RJ45 with Transformer ethernet jack 100 base-TX for router

1 Port Shielded PoE RJ45 with Transformer ethernet jack 100 base-TX  for router

ELECTRICAL SPECIFICATIONS :at 25℃

2.1 OCL :P(1-2)=P(3-6)=350 uH Min. @ 100 KHz, 100mV,with 8 mA DC Bias .

2.2 L.L:P(1-2)=P(3-6)= 0.5uH   Max. @ 100 KHz, 100mV

2.3 Cw/w: 35PF Max. @ 100 KHz, 100mV

2.4 Turn Ratio : P(1-2):J(1-2)=1CT:1CT±3%

                           P(3-6):J(3-6)=1CT:1CT±3%

2.5 DCR : 1.2Ω  MAX.

                 J(1-3):J(2-6)=J(4-7)=J(8-6)=150Ω

2.6 Polarity:  P1&J1;P3&J3   In-Phase.

2.7 Insertion Loss :-1.1dB Max @0.3~100MHz

2.8 Return Loss : -16 dB MIN  @1-30 MHz

                -14.4  dB MIN @40MHz

                -13.1  dB MIN @50MHz

                -12  dB MIN @60-80MHz

2.9 Cross Talk  : -35 dB MIN. @1~100 MHz

2.10 DCMR  : -25 dB MIN. @1~100 MHz

2.11Isolation HI-POT:  P(1-2-3-4-5-6-7-8) TO J(1-2-3-6-4-5-7-8)@1500Vrms/

    1mA Max/ 2SEC.





LED Specifications:



Emitting
color

Dominant wavelength(nm)
(min/max)

Forward voltage
(v)

Forward current
(A)

Type

Green

570-575

1.8-2.4

20mA

Squareness

Yellow

585-590

1.8-2.4

20mA

Squareness





















Applications:





• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL/ADSL and so on.
