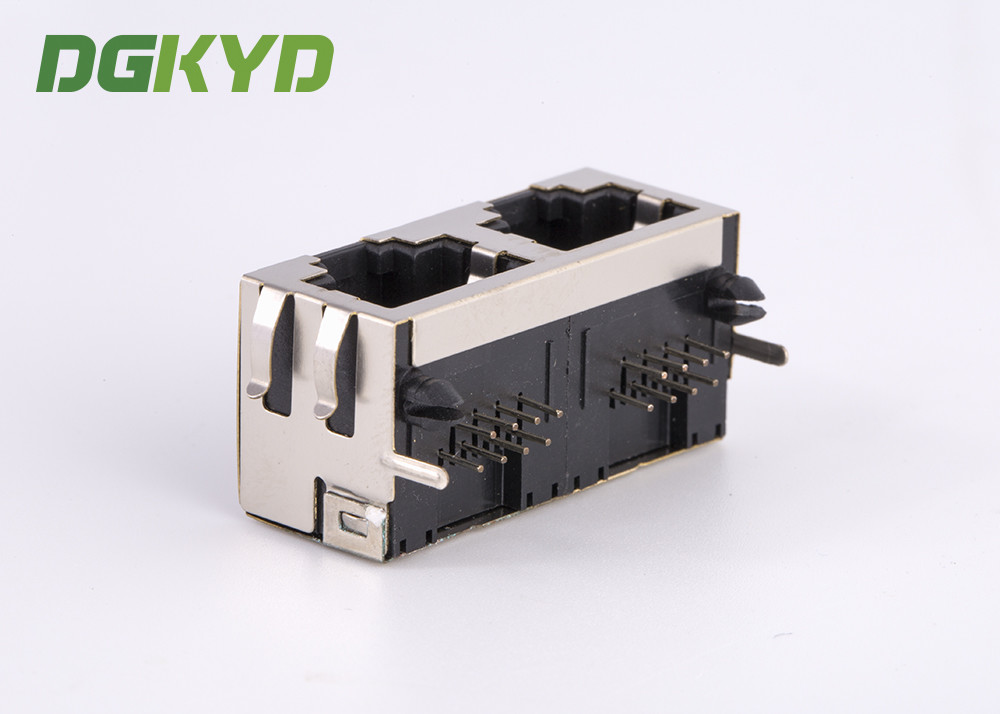

KRJ - 56S8P8C1X2ENL Metal shielded 2 port rj45 female jack No LEDS tab up

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-56S8P8C1X2ENL

Detail Information

LEDS: No Feature: Without Magnetics
RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP Application: Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices
Gender: Female Jack Product Name: RJ45 Connector

Product Description

Metal shielded 2 port rj45 female jack KRJ - 56S8P8C1X2ENL No LEDS

Part Number KRJ-56S8P8C1X2ENL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch up
Filter Without internal filter LED Option Without LED
LED Color N/A Panel Stops Without Panel Stops
Shielded shielded Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  2 port Number of Positions  8
Jack Configuration 1 x 2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 0.6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit



Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0




Descriptions:

  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Length: 25.1 mm



KRJ - 56S8P8C1X2ENL Metal shielded 2 port rj45 female jack No LEDS tab up
