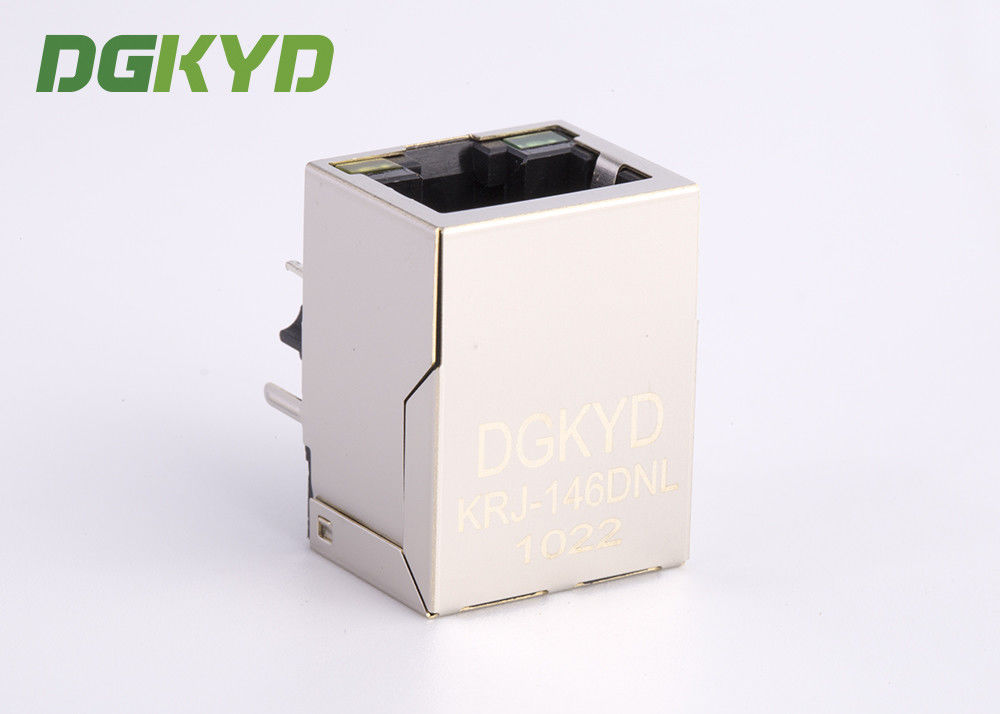

China Supplier cat5 megabit integrated magnetic RJ45 Connector female jack

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-146DNL

Detail Information

Housing Material: PBT Black Contact Mating Area Plating: GOLD 30u"/ 50u" For Optional
Metal Shield: TIN PLATED PHOSPHOR BROZNE LED Option: Green & Yellow
Latch: Tab-Down Mount Stlye: Though Hole

Product Description

Manufacturer Supplier 8P8C modular jacks with Transformer LED Metal shielded Cat5 RJ45 LAN network Connectors





Part Number
KRJ-146DNL
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
Down
Filter
With Filter
LED Option
With LED
LED Color
Green & Yellow
Panel Stops
With Panel Stops
Shielded
Yes
Applies To 
Printed Circuit Board
Performance Speed
10/100/1000/10G BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
Single
Number of Positions 
8
Jack Configuration
1 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u/15u/30u/50u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
PBT Polyester
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0

China Supplier cat5 megabit integrated magnetic RJ45 Connector female jack

Applications

• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,

internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL/ADSL and so on.

For example:

China Supplier cat5 megabit integrated magnetic RJ45 Connector female jack

Our Service

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…

Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements

DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction


Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
