Yellow Color Unshielded Rj45 Modular Jack With Transformer , 100 Base - T
Contact Person : Nicole Zhuo
Phone Number : +86 18925835585
WhatsApp : +8613538542087
| Minimum Order Quantity : | 1 piece | Price : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Supply Ability : | 100K pcs/day |
| Place of Origin: | DongGuan of China | Brand Name: | DGKYD |
|---|---|---|---|
| Certification: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Model Number: | KRJ-300POEYGNL |
|
Detail Information |
|||
| Housing: | Phenolic, PBT Black (UL94V-0) | Type: | RJ45 Female Connector |
|---|---|---|---|
| Plastic Core: | Glass Fiber Filler PBT Black(UL94V-0),ROHS | Product Name: | RJ45 With Transformer |
| Shield: | Yes | No.Port: | RJ45 Single Port |
| High Light: | RJ45 Network Connector 100Mbps,KRJ-300POEYGNL RJ45 Network Connector,POE RJ45 With Transformer |
||
Product Description

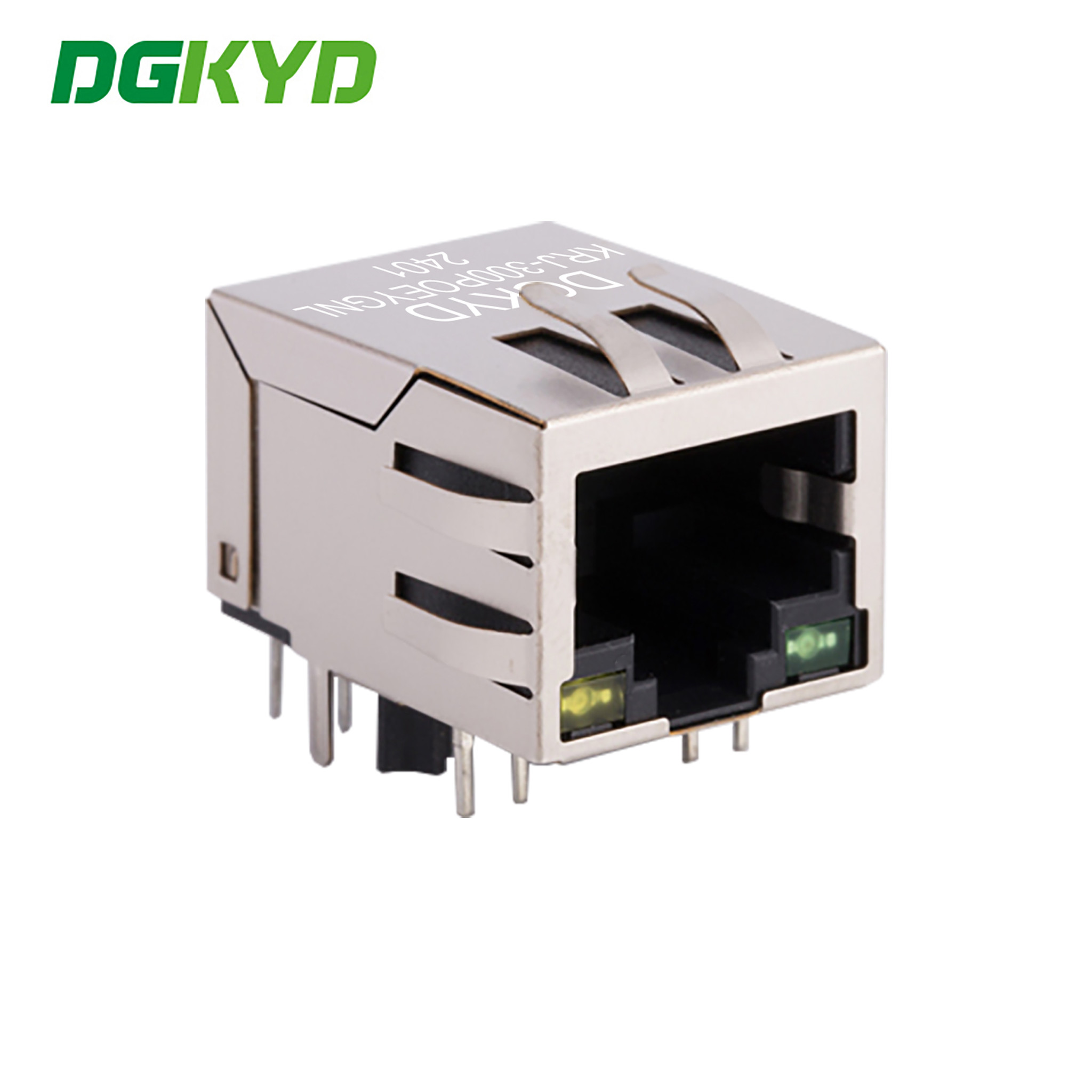

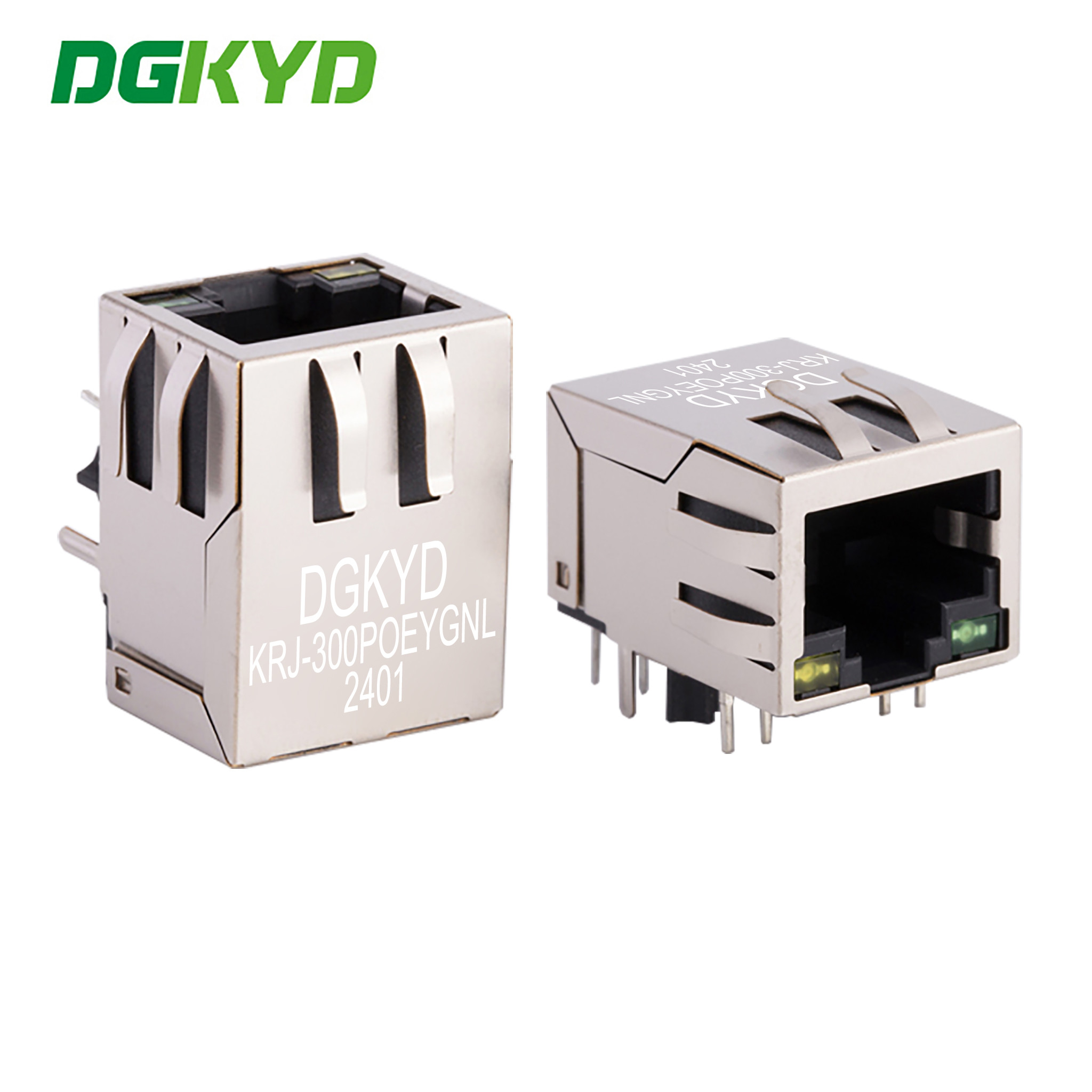

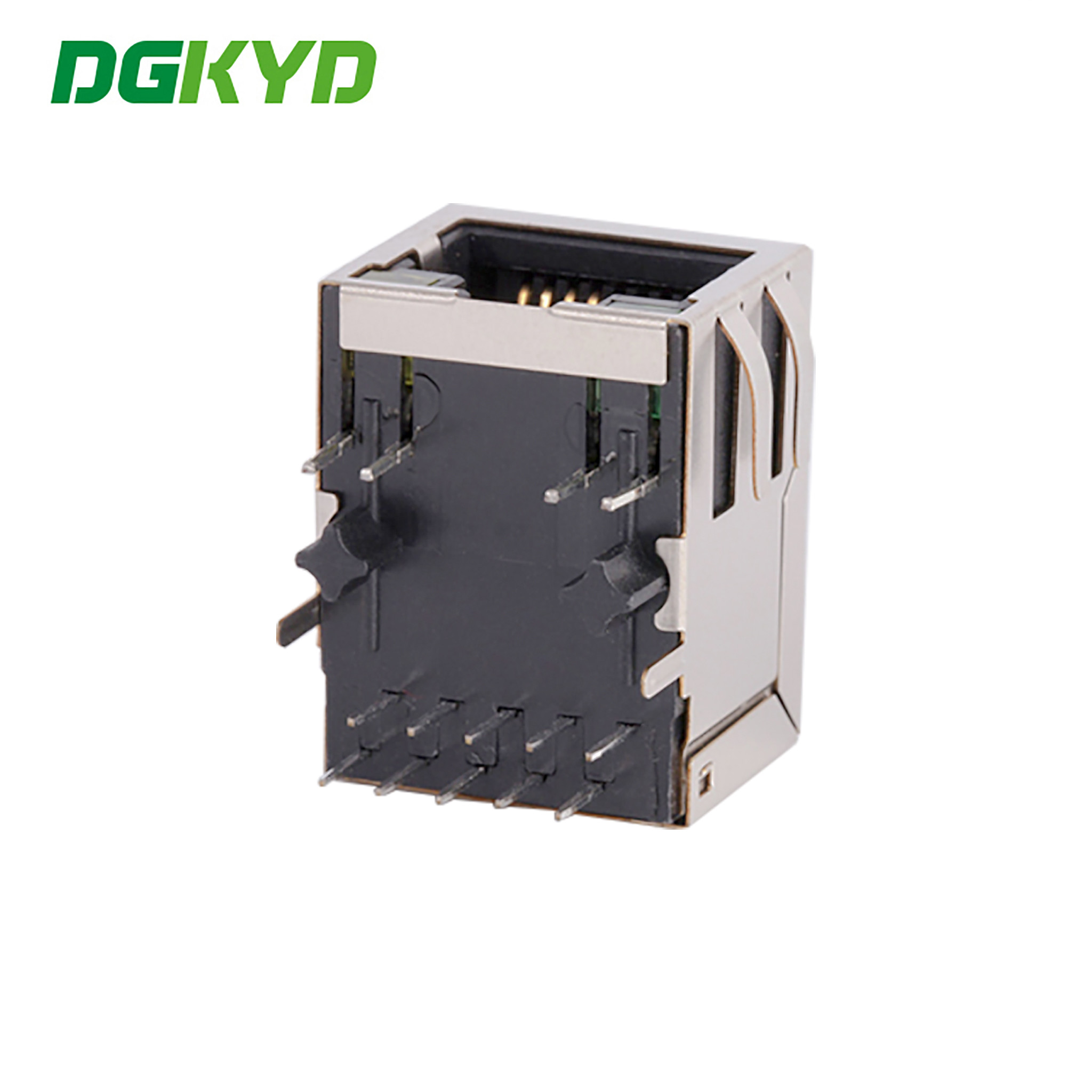

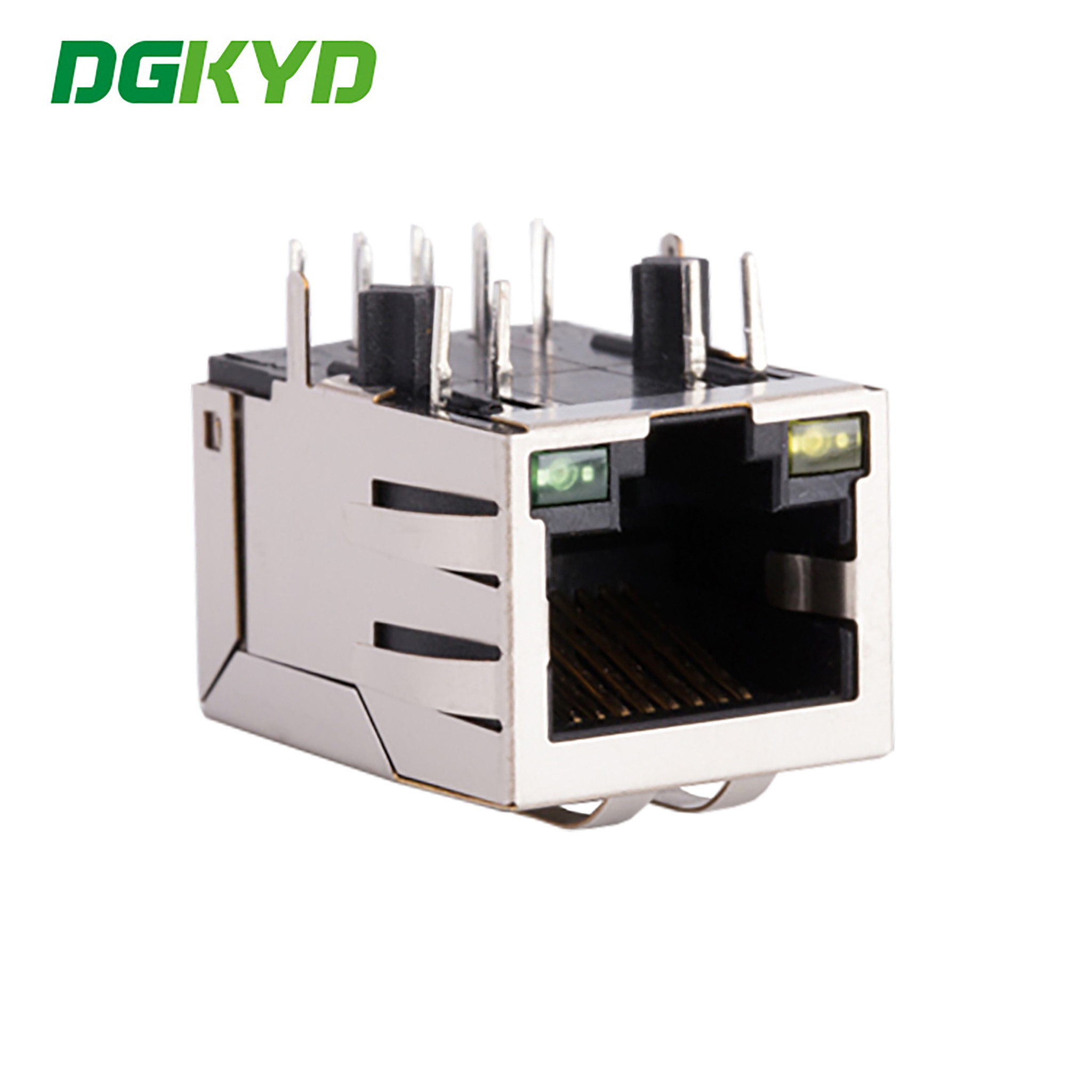

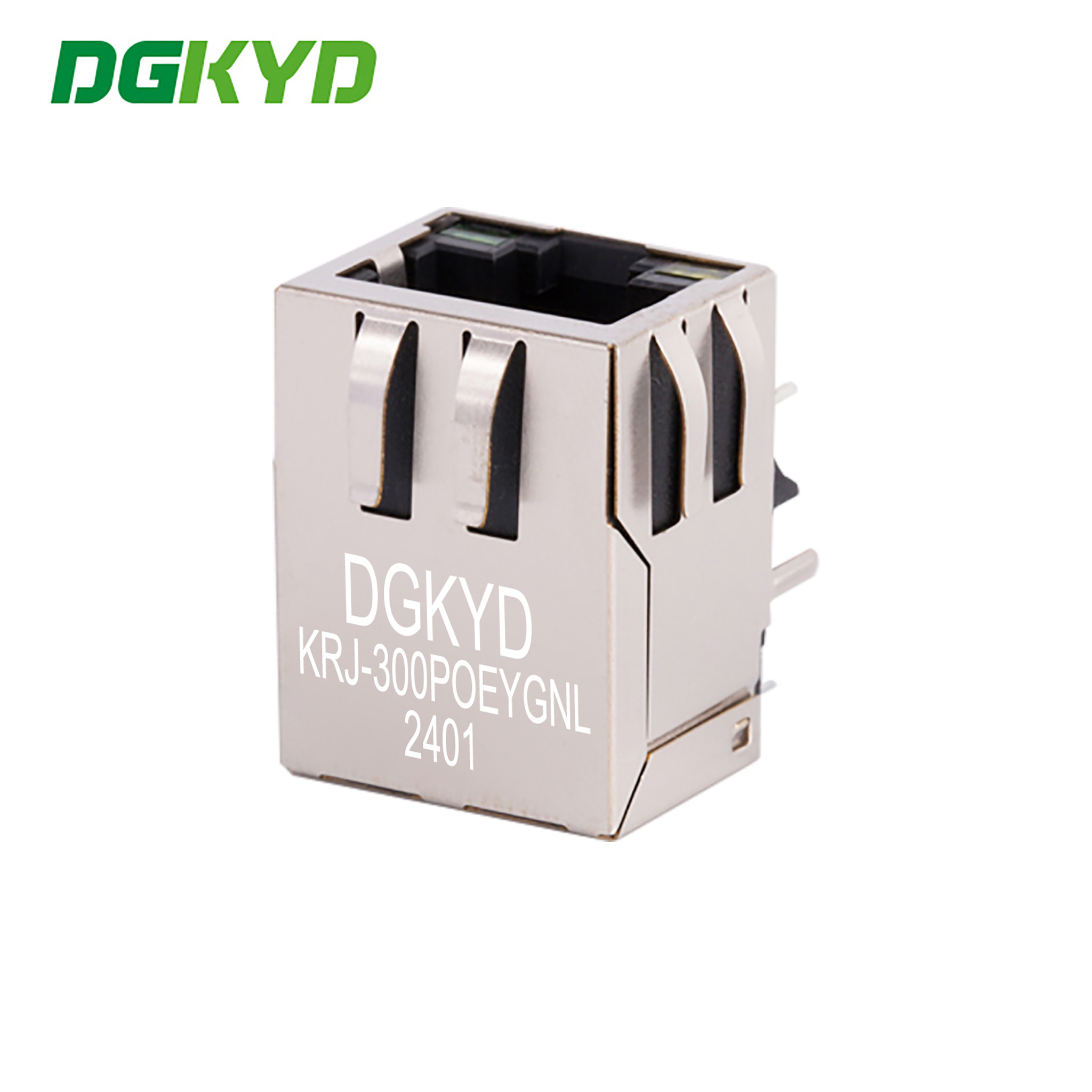

KRJ-300POEYGNL single port RJ45 network connector 100Mbps with POE RJ45 With Transformer Ethernet Jack 100 Base
Product Specification Document
Parameters
| Part Number | KRJ-300POEYGNL | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | Yes L-Yellow/R-Green | Panel Stops | With Panel Stops |
| Shielded | Yes | Applies To | Printed Circuit Board |
| Performance Speed | 10/100 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 10 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
ELECTRICAL SPECIFICATIONS :at 25℃
|
2.1 OCL :P(1-2)=P(3-6)=350 uH Min. @ 100 KHz, 100mV,with 8 mA DC Bias . |
|
2.2 L.L:P(1-2)=P(3-6)= 0.5uH Max. @ 100 KHz, 100mV |
|
2.3 Cw/w: 35PF Max. @ 100 KHz, 100mV |
|
2.4 Turn Ratio : P(1-2):J(1-2)=1CT:1CT±3% |
|
P(3-6):J(3-6)=1CT:1CT±3% |
|
2.5 DCR : 1.2Ω MAX. |
|
J(1-3):J(2-6)=J(4-7)=J(8-6)=150Ω |
|
2.6 Polarity: P1&J1;P3&J3 In-Phase. |
|
2.7 Insertion Loss :-1.1dB Max @0.3~100MHz |
|
2.8 Return Loss : -16 dB MIN @1-30 MHz |
|
-14.4 dB MIN @40MHz |
|
-13.1 dB MIN @50MHz |
|
-12 dB MIN @60-80MHz |
|
2.9 Cross Talk : -35 dB MIN. @1~100 MHz |
|
2.10 DCMR : -25 dB MIN. @1~100 MHz |
|
2.11Isolation HI-POT: P(1-2-3-4-5-6-7-8) TO J(1-2-3-6-4-5-7-8)@1500Vrms/ |
|
1mA Max/ 2SEC. |
LED Specifications:
|
Emitting |
Dominant wavelength(nm) |
Forward voltage |
Forward current |
Type |
|
Green |
570-575 |
1.8-2.4 |
20mA |
Squareness |
|
Yellow |
585-590 |
1.8-2.4 |
20mA |
Squareness |
Applications:
• Integrated RJ45 connector main used to :
• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,
telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
