1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-56S8P8C11NL

Detail Information

Port: Single Port Latch: Tab Up
Length: 15.85mm Shield: Yes
Port Angle: Right Angle Transformer: Without Transformer
High Light:

1 port rj45

,

network port

,

Right Angle RJ45 shielded Connector

Product Description

Right Angle Cat 5 RJ45 Connector , RJ45 Modular Jack without transformer

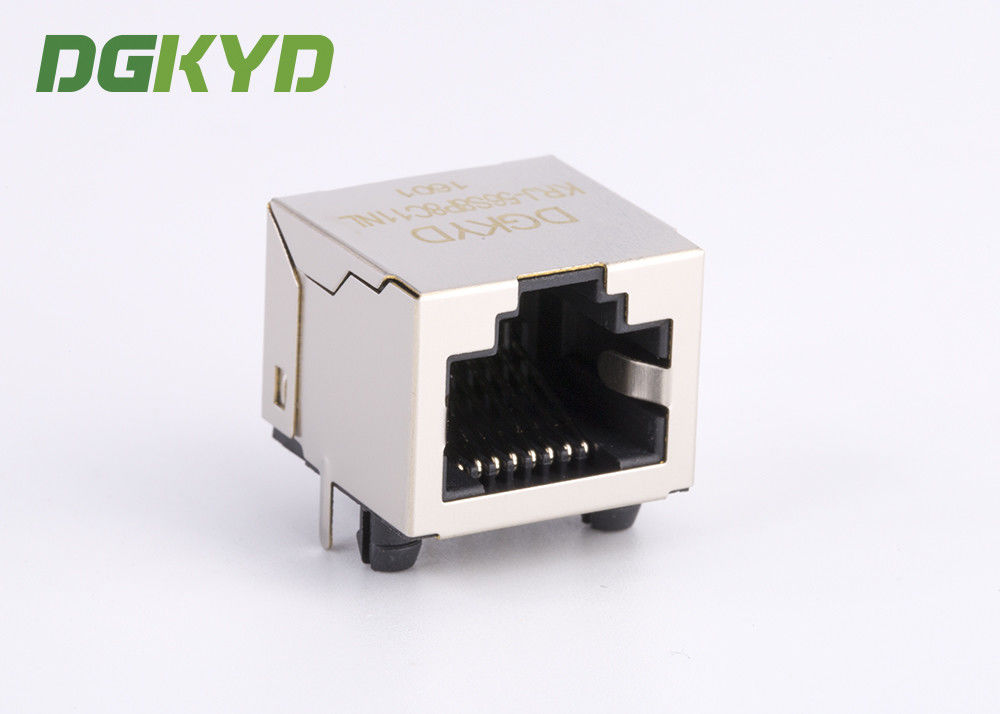

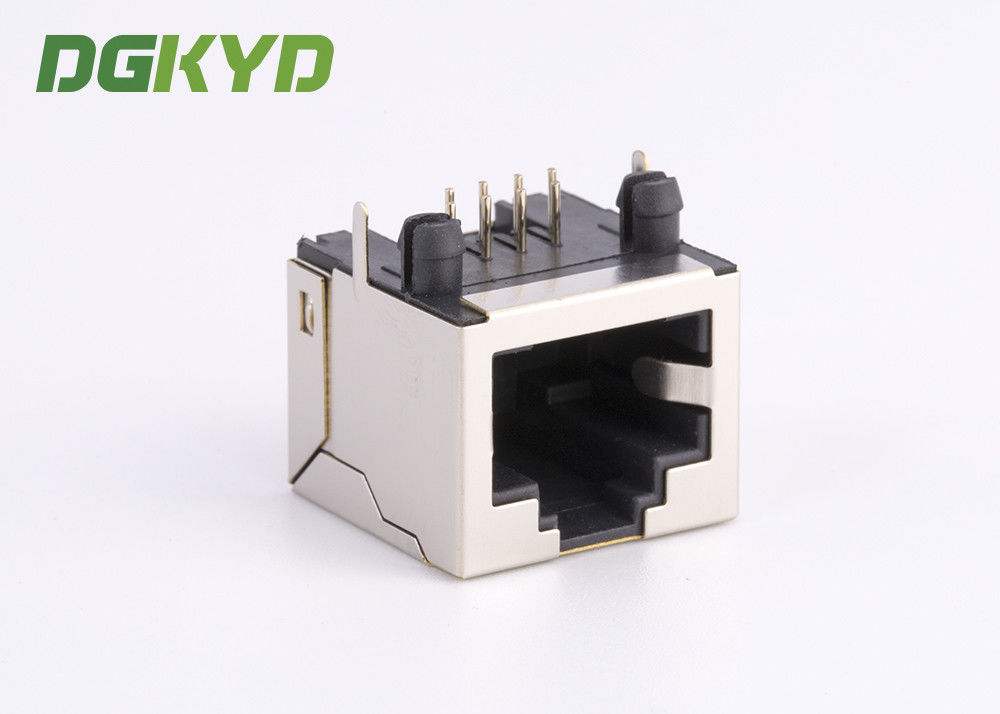

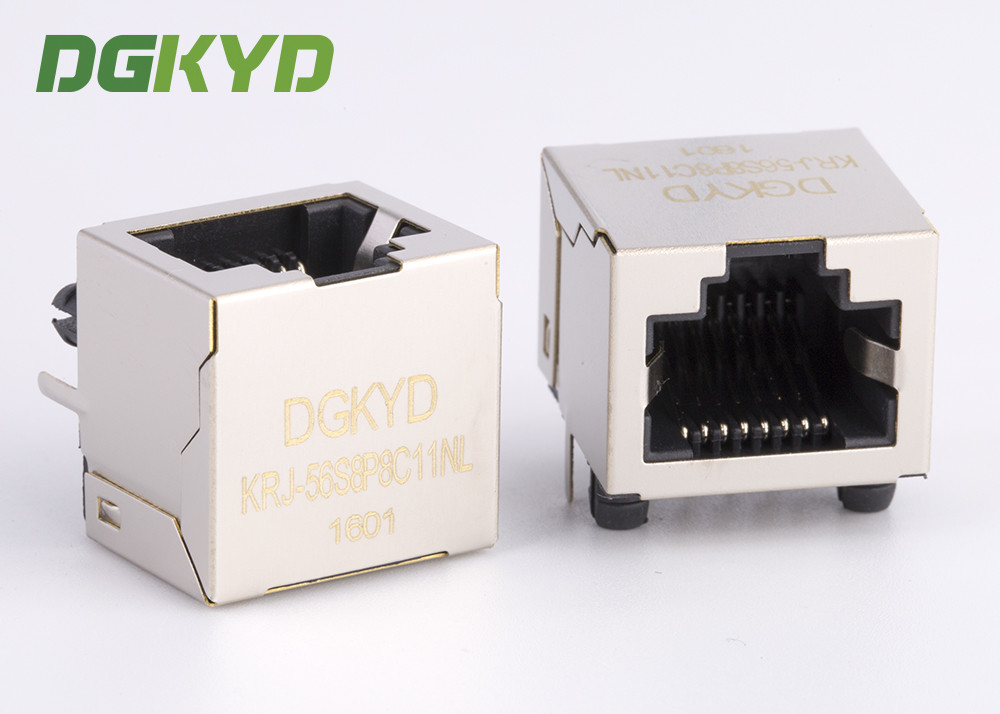

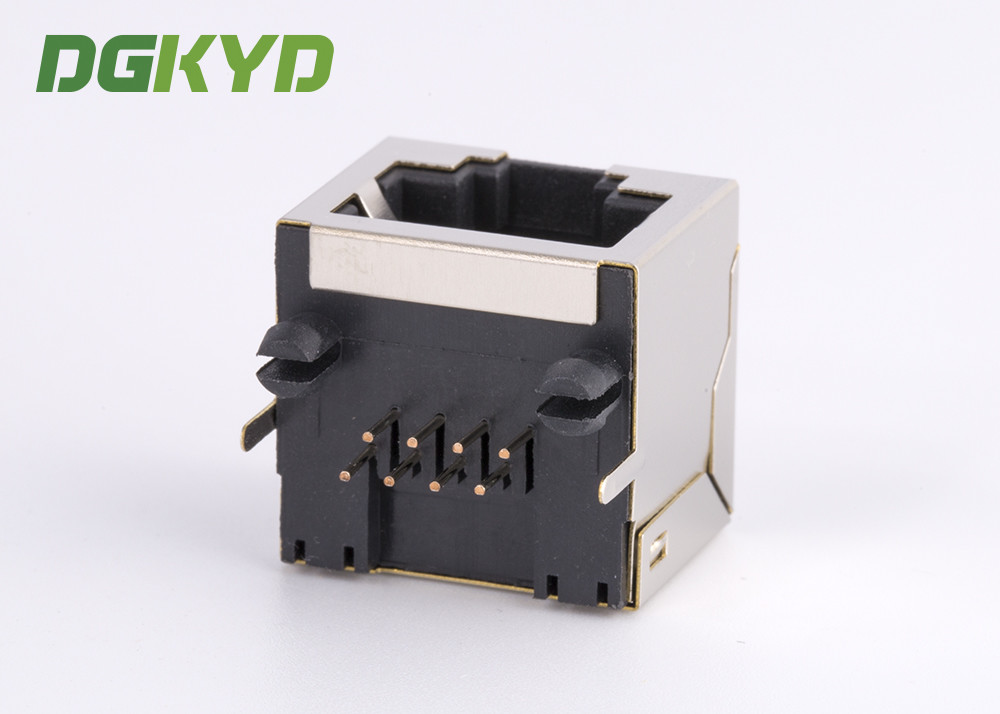

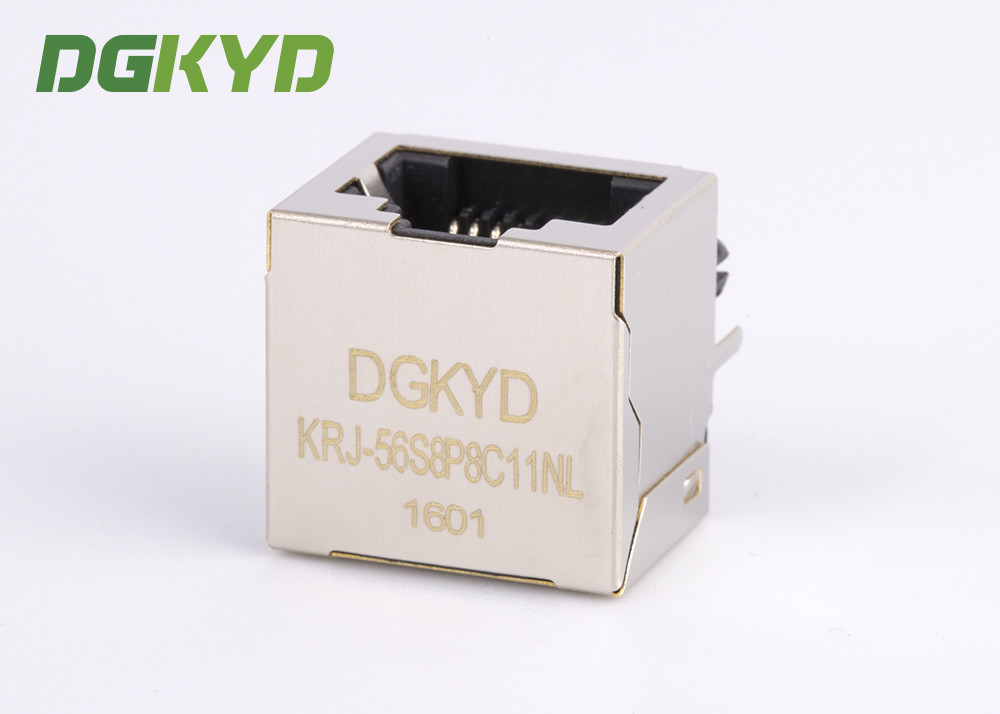

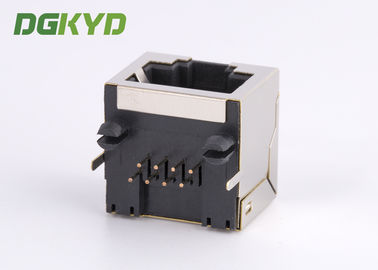

1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer 0

  • 1X1 Single port RJ45 Modular jack without transformer
  • tap-up rj45 connector without led, right angle
  • Insertion Force:2.2KG.F.max
  • Retention Strength;7.7KG.Fmin between jack and plug
  • Durabbilith:600mating cycles min
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant(GP)
  • Length:15.75mm
  • LEDS:NO
  • EMI fingers:YES
  • Usage:KRJ-56S8P8C11NL

Applications:

• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL/ADSL and so on.
