KRJ - 56S8P8C1X1YGENL Metal Shielded Rj45 Jack Connector Without Transformer

China KRJ - 56S8P8C1X1YGENL Metal Shielded Rj45 Jack Connector Without Transformer supplier
KRJ - 56S8P8C1X1YGENL Metal Shielded Rj45 Jack Connector Without Transformer supplier KRJ - 56S8P8C1X1YGENL Metal Shielded Rj45 Jack Connector Without Transformer supplier KRJ - 56S8P8C1X1YGENL Metal Shielded Rj45 Jack Connector Without Transformer supplier KRJ - 56S8P8C1X1YGENL Metal Shielded Rj45 Jack Connector Without Transformer supplier KRJ - 56S8P8C1X1YGENL Metal Shielded Rj45 Jack Connector Without Transformer supplier KRJ - 56S8P8C1X1YGENL Metal Shielded Rj45 Jack Connector Without Transformer supplier

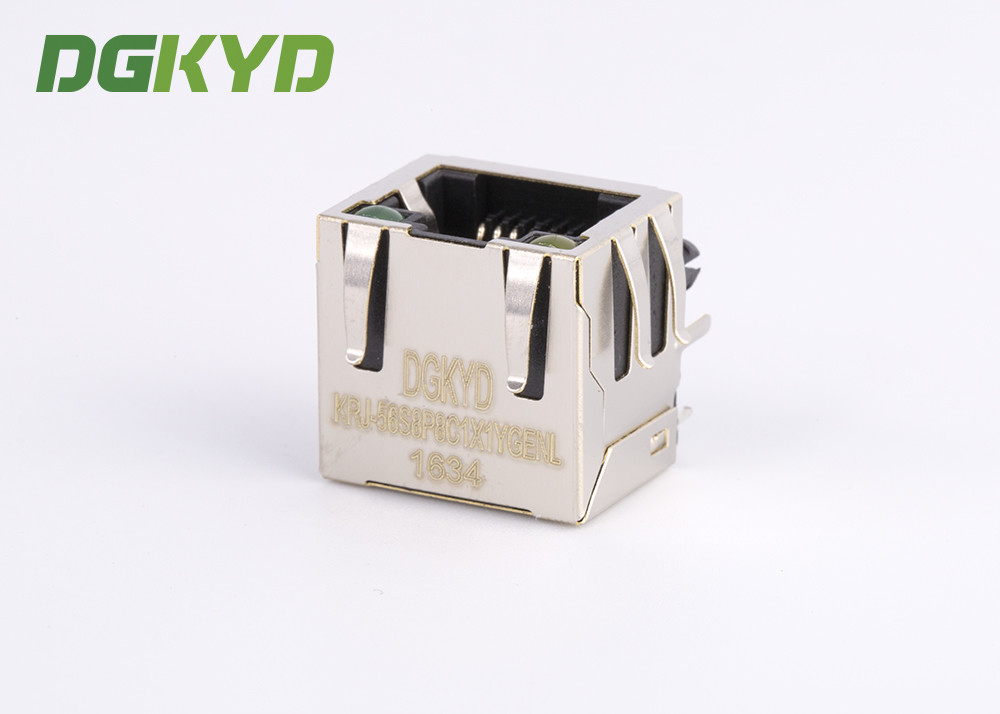

Large Image :  KRJ - 56S8P8C1X1YGENL Metal Shielded Rj45 Jack Connector Without Transformer

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-56S8P8C1X1YGENL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
EMI Fingers: For Optional Feature: High Performance
RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP Application: Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices
Gender: Female Product Name: RJ45 Jack
Transformer: Without Transformer LED Color: Yellow / Green

KRJ - 56S8P8C1X1YGENL Metal Shielded Rj45 Jack Connector Without Transformer



Part Number KRJ-56S8P8C1X1YGENL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch up
Filter Without filter LED Option With LED
LED Color Green / Yellow Panel Stops With Panel Stops
Shielded Metal shielded Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Single port Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 0.6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit



Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0




Descriptions:

  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Length:15.7mm

Applications:



Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL/ADSL and so on.



► Product Drawing


KRJ - 56S8P8C1X1YGENL Metal Shielded Rj45 Jack Connector Without Transformer



► Our Service


World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•DGKYD Is OEM Of FOXCONN For 6 Years
•Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE…
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
•Delivery Time:1-2 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
DGKYD Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• DGKYD Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
