Metal Shielded Female Rj45 Ethernet Jack Connector Without Transformer , 11.5mm

China Metal Shielded Female Rj45 Ethernet Jack Connector Without Transformer , 11.5mm supplier
Metal Shielded Female Rj45 Ethernet Jack Connector Without Transformer , 11.5mm supplier Metal Shielded Female Rj45 Ethernet Jack Connector Without Transformer , 11.5mm supplier Metal Shielded Female Rj45 Ethernet Jack Connector Without Transformer , 11.5mm supplier Metal Shielded Female Rj45 Ethernet Jack Connector Without Transformer , 11.5mm supplier Metal Shielded Female Rj45 Ethernet Jack Connector Without Transformer , 11.5mm supplier Metal Shielded Female Rj45 Ethernet Jack Connector Without Transformer , 11.5mm supplier

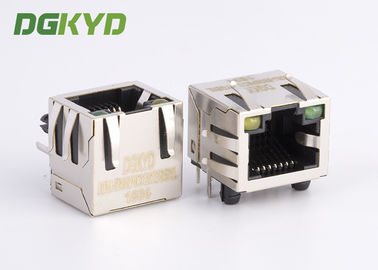

Large Image :  Metal Shielded Female Rj45 Ethernet Jack Connector Without Transformer , 11.5mm

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-60S8P8C1X1NL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Feature: 3,5 RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP
Application: Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices Gender: Female
Product Name: RJ45 Jack Transformer: Without Transformer



Metal Shielded Female Rj45 Ethernet Jack Connector Without Transformer , 11.5mm





► Product Datasheet



Part Number KRJ-60S8P8C1X1NL Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch up
Filter Without filter LED Option NONE
Shielded Metal shielded Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Single port Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 0.6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0






► Product Drawing


Metal Shielded Female Rj45 Ethernet Jack Connector Without Transformer , 11.5mm
