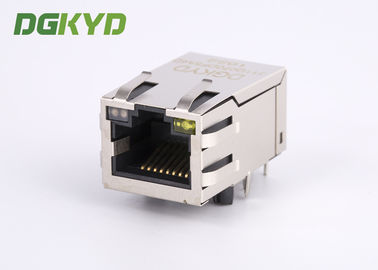

25.4mm Integrated Ethernet RJ45 Connector 1000Mb Transformer Rj45 Jack Cat6 W Led

Name: 25.4mm Integrated Ethernet RJ45 Connector 1000Mb Transformer Rj45 Jack Cat6 W Led
Brand: DGKYD
SKU: DGKYD311Q070DF5A4D
Rating: 4.5 (149 reviews)

Minimum Order Quantity :	1 piece	Price :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Brand Name:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD311Q070DF5A4D

Detail Information
Turn Ratio:	1ct:1ct	Mount Orientation:	Right Angle
Performance:	Cat6	LED:	Y / GO
High Light:	rj45 10 pin connector , rj45 10 pin , Integrated Ethernet rj45 10 pin

Product Description

25.4Mm Integrated Ethernet RJ45 Connector / 1000M Transformer rj45 jack cat6 w led

25.4mm Integrated Ethernet RJ45 Connector / Tab-up 10 Pin Rj45 Connector with 1000M Transformer and w/o led DGKYD311Q070DF5A4D

Descriptions:

10/100/1000Base-Tx RJ45 single port 1X1 Vertical with LED with side entry
Single port 1X1 Tab-UP RJ45 with internal magnetics
Number of positions:10
Number of contacts loaded:8
Shieded:YES
Rohs compliant
Length:25.4mm
LEDS:YES
EMI finger:YES
Usage:DGKYD311Q070DF5A4D
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

25.4mm Integrated Ethernet RJ45 Connector 1000Mb Transformer Rj45 Jack Cat6 W Led 0
