10 PIN RJ45 with integrated magnetics Gigabit Cat 6 RJ45 connector

China 10 PIN RJ45 with integrated magnetics Gigabit Cat 6 RJ45 connector supplier
10 PIN RJ45 with integrated magnetics Gigabit Cat 6 RJ45 connector supplier 10 PIN RJ45 with integrated magnetics Gigabit Cat 6 RJ45 connector supplier 10 PIN RJ45 with integrated magnetics Gigabit Cat 6 RJ45 connector supplier 10 PIN RJ45 with integrated magnetics Gigabit Cat 6 RJ45 connector supplier 10 PIN RJ45 with integrated magnetics Gigabit Cat 6 RJ45 connector supplier 10 PIN RJ45 with integrated magnetics Gigabit Cat 6 RJ45 connector supplier

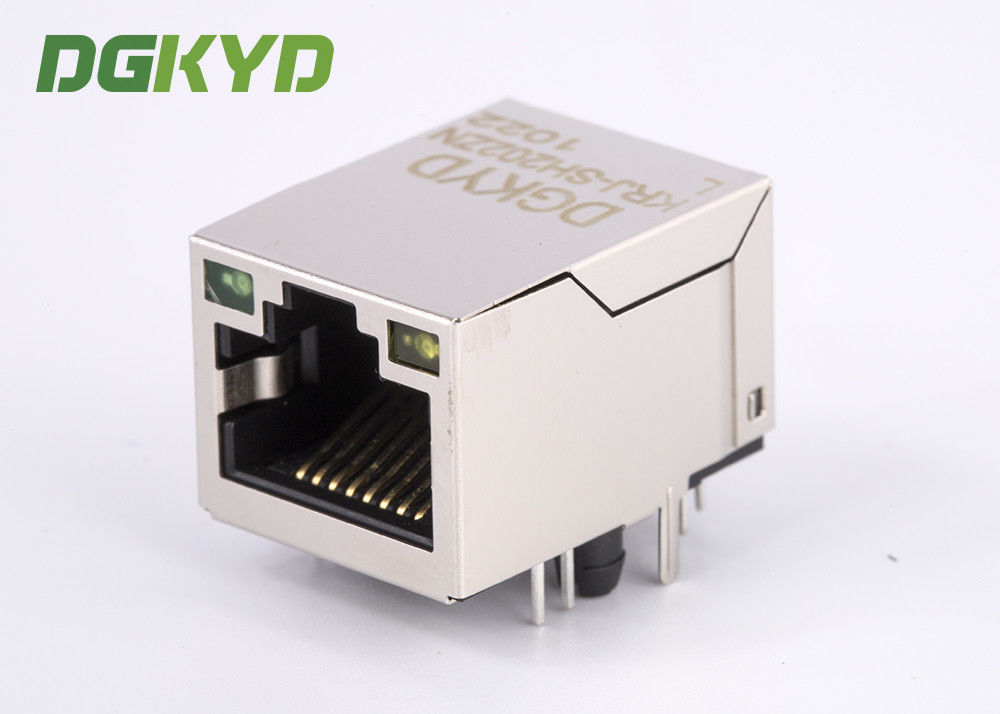

Large Image :  10 PIN RJ45 with integrated magnetics Gigabit Cat 6 RJ45 connector

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-SH202ZNL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
Housing Material: PBT Black Contact Mating Area Plating: GOLD Plating 6u"
Metal Shield: TIN PLATED PHOSPHOR BROZNE LED Option: Green & Yellow
Latch: Tab-Up Number Of Ports: 1
Number Of Contacts: 8 PCB Mount Angle: SIDE ENTRY
Mount Stlye: Though Hole Transformer: With Transformer

Metal shielded 10 PIN RJ45 Magnetics , 1000 Megabit Cat 6 RJ45 female connector

Part Number
KRJ-SH202ZNL
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
Up
Filter
With Filter
LED Option
With LED
LED Color
Green & Yellow
Panel Stops
With Panel Stops
Shielded
Yes
Applies To 


1000 BASE-T
Grounding Options
Panel Ground and PCB Ground
Jack Configuration
1 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u/15u/30u/50u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
PBT Polyester
Housing Color
Black




  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-400℃ to +85℃
  • Storage temperature range :-40℃ to +85℃

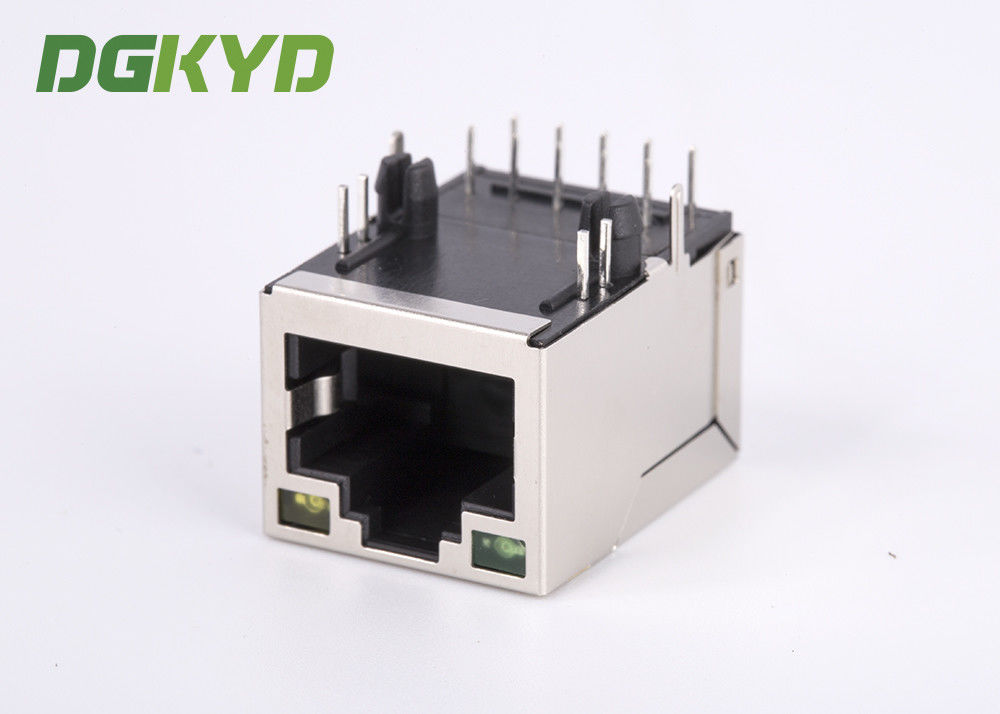

10 PIN RJ45 with integrated magnetics Gigabit Cat 6 RJ45 connector

Application

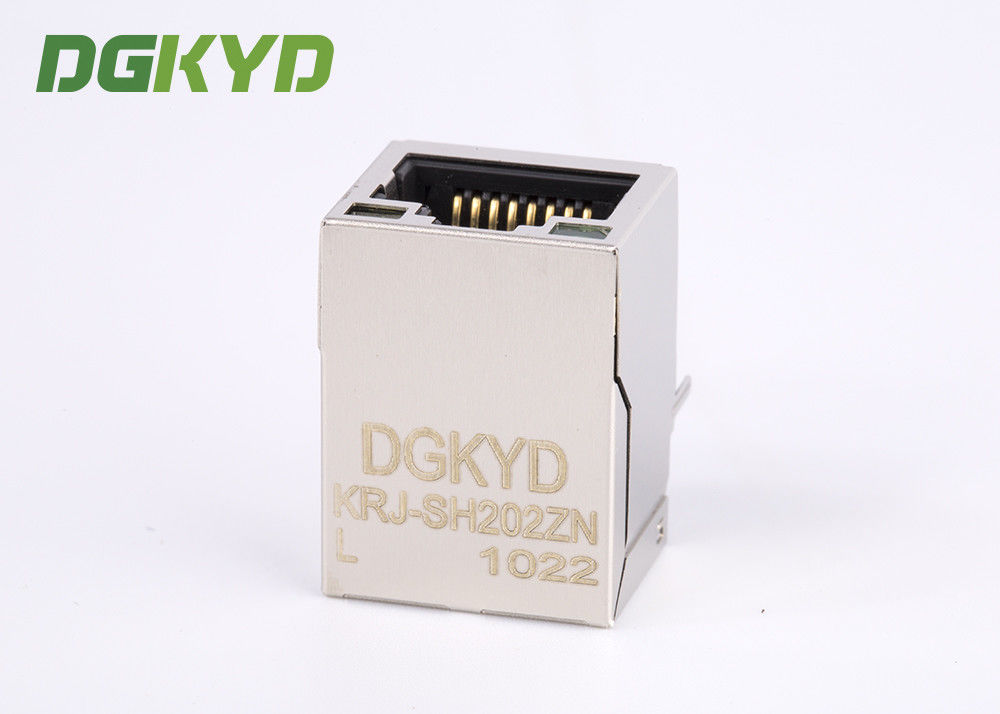

10 PIN RJ45 with integrated magnetics Gigabit Cat 6 RJ45 connector
