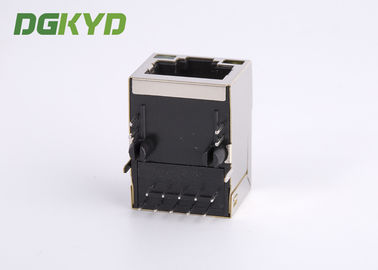

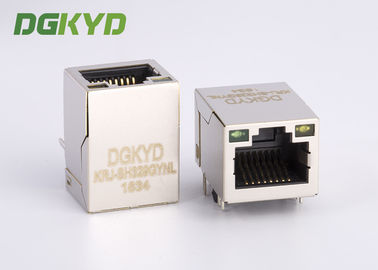

Shielded 1000BASE RJ45 Modular Jack female Single Port W/Led Tab up

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-SH329GYNL

Detail Information

Product Name: RJ45 Modular Jack Gender: Rj45 Receptacle
Application: Fiber Optic,ip Camera ,dvr,dsl,modem,wifi Etc Feature: Shielded RJ45 Network Port
OEM/ODM: Yes Type: Multi Pin Rj45 Magjack

Product Description

Shielded 1000BASE RJ45 Modular Jack , RJ45 Single Port W/Led Tab up

 Shielded 1000BASE RJ45 Modular Jack female Single Port W/Led Tab up





Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

MECHANICAL

Durability: 750 Cycle



ENVIRONMENTAL

Operating Temperature Range: -40℃~+85℃

Storage Temperature Range: -40℃~+85℃



SOLDER ABILITY

Recommended Wave Soldering Temperature: 260℃

Recommended PCB Thickness: 1.6mm



Applications:



Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA, DSL/ADSL and so on.
