Metal shielded CAT6 10 Pin Rj45 Connector KRJ -300CNL High performance

China Metal shielded CAT6 10 Pin Rj45 Connector KRJ -300CNL High performance supplier
Metal shielded CAT6 10 Pin Rj45 Connector KRJ -300CNL High performance supplier Metal shielded CAT6 10 Pin Rj45 Connector KRJ -300CNL High performance supplier Metal shielded CAT6 10 Pin Rj45 Connector KRJ -300CNL High performance supplier Metal shielded CAT6 10 Pin Rj45 Connector KRJ -300CNL High performance supplier Metal shielded CAT6 10 Pin Rj45 Connector KRJ -300CNL High performance supplier Metal shielded CAT6 10 Pin Rj45 Connector KRJ -300CNL High performance supplier

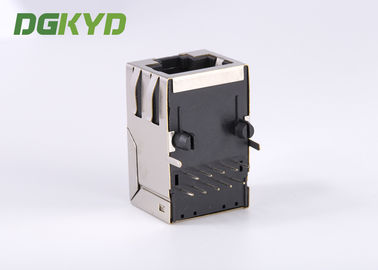

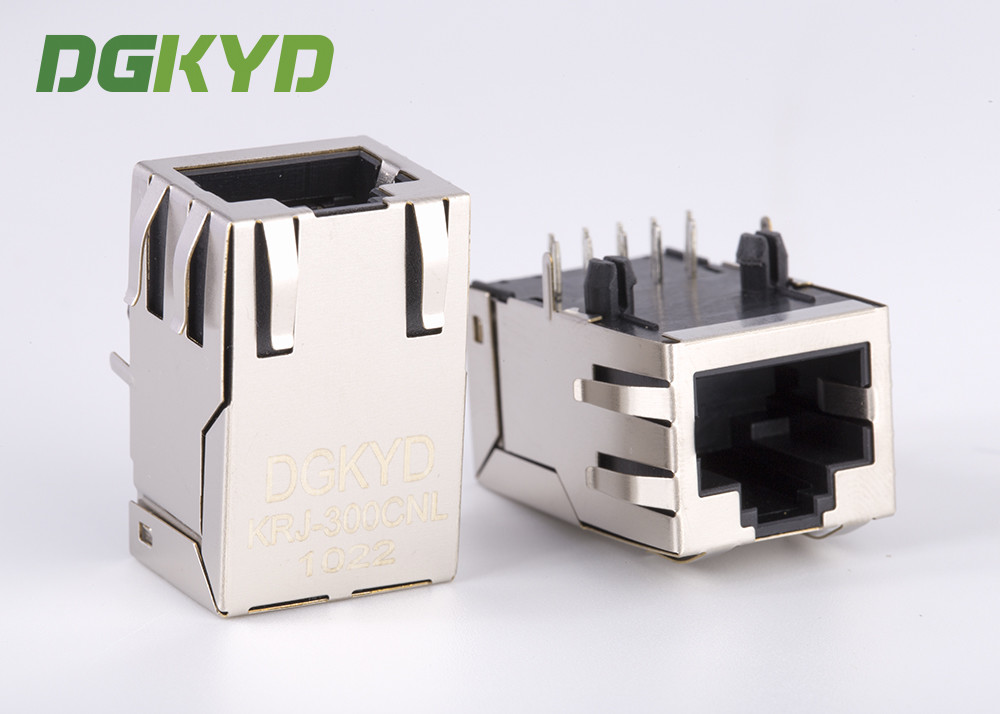

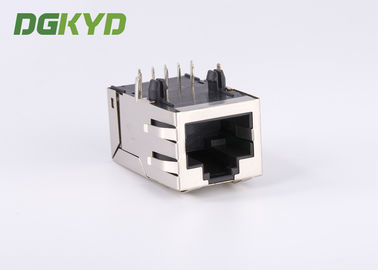

Large Image :  Metal shielded CAT6 10 Pin Rj45 Connector KRJ -300CNL High performance

Product Details:

Place of Origin: DongGuan of China
Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number: KRJ-300CNL

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Please contact us to get the latest price.
Packaging Details: Tray in Carton
Delivery Time: 10 days
Payment Terms: T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability: 100K pcs/day
Contact Now
Detailed Product Description
RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP Gender: Female RJ45
Product Name: RJ45 Connector Magnetics: With Magnetics

Metal shielded CAT6 10 Pin Rj45 Connector KRJ -300CNL High performance

Part Number KRJ-300CNL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch up
Filter With filter LED Option Without LED
LED Color N/A Panel Stops With Panel Stops
Shielded Metal shielded Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Single port Number of Positions  10
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit



Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0




Descriptions:

  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Length:25.4mm

Electrical Specifications at 25℃

.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH  @100KHZ 100Mv 8mA  DC
