1000BASE-T Single Port Industrial RJ45 Connector Dip CAT6 Ethernet Jack with led

Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-329NL

Detail Information

LEDS/EMI Fingers: For Optional Feature: High Performance With Magnetics And LED
RJ45 Suitable: For CAT5&6 Ethernet Cable Or UTP Application: Lan,bridge,PC,router,usb Hub Network Rj45 And All Ethernet Devices
Gender: Female RJ45 Product Name: RJ45 Ethernet Connector

Product Description

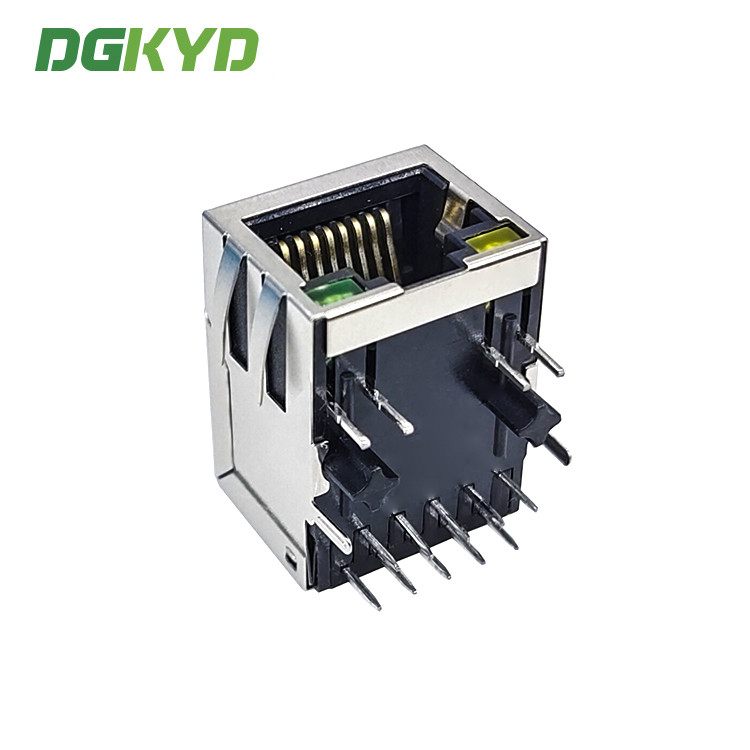

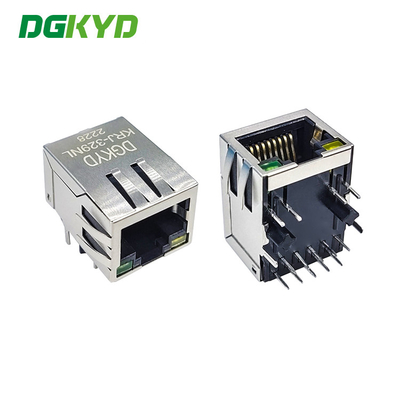

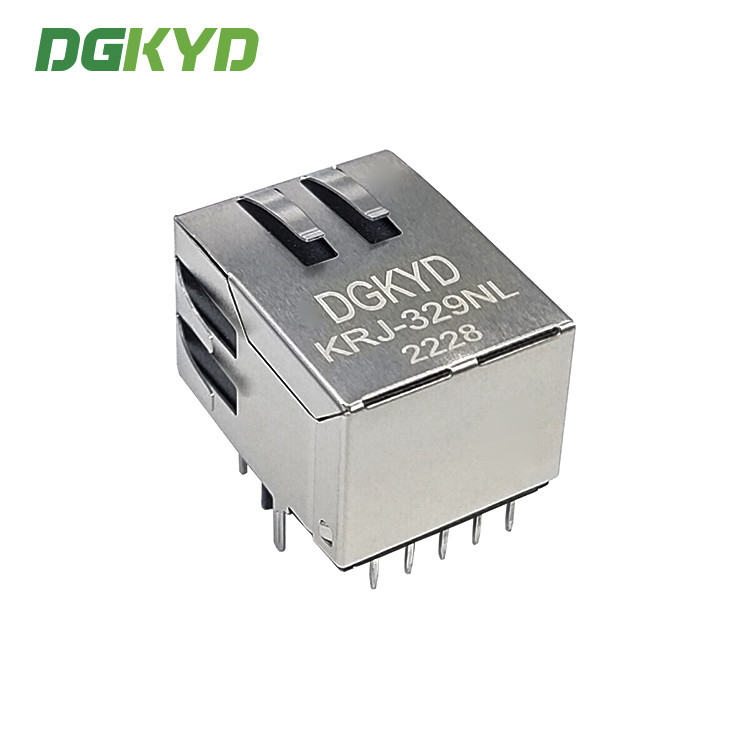

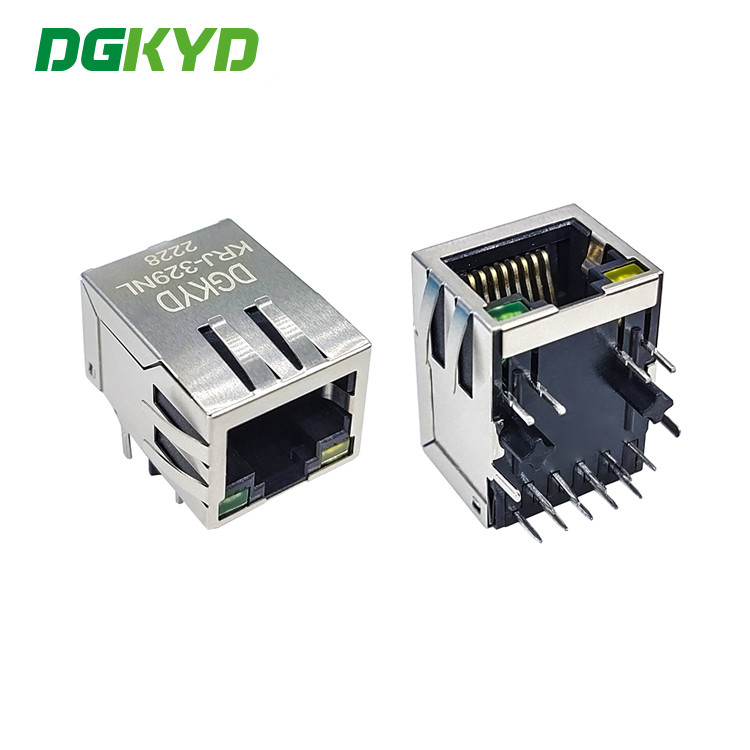

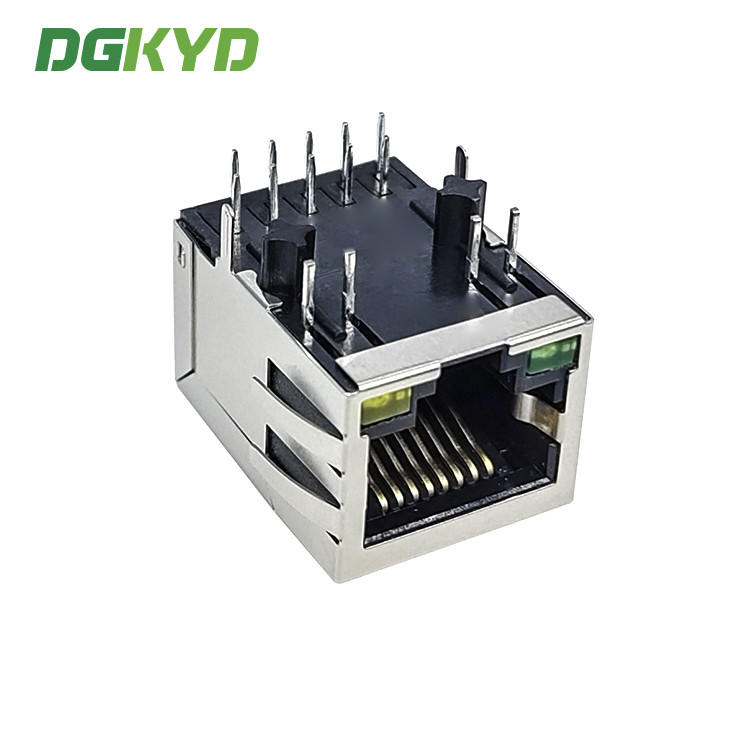

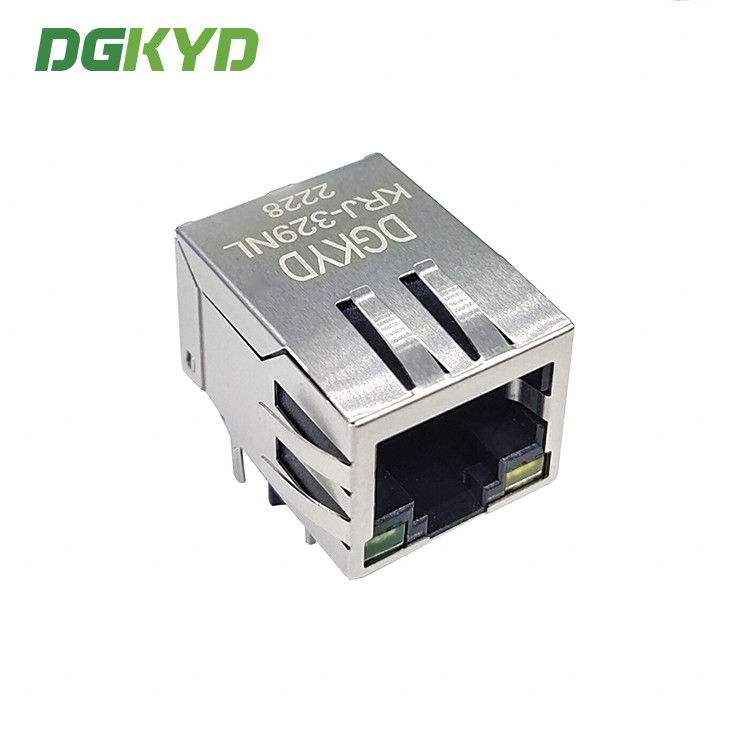

KRJ-329NL 1000BASE-T Single Port Industrial RJ45 Connector Dip CAT6 Ethernet Jack with led





Part Number KRJ-329NL Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Down
Filter Integrated Filter LED Option With LED
LED Color Yellow & Green Panel Stops With Panel Stops
Shielded Metal Shielded Applies To  Printed Circuit Board
Performance Speed 10/100/1000 BASE-T Grounding Options Panel Ground and PCB Ground
Port Configuration  Single port Number of Positions  10
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit



Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0






1000BASE-T Single Port Industrial RJ45 Connector Dip CAT6 Ethernet Jack with led
