Shieded Cat6 RJ45 jack 8 pin network connector Integrated magnetics for Router

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-098ENL

Detail Information

Speed: Megabit Type: RJ45
Latch: Tab Up Mount Style: DIP
High Light:

cat6 rj45 jack

,

cat6 connector rj45

,

8 pin network connector Integrated

Product Description

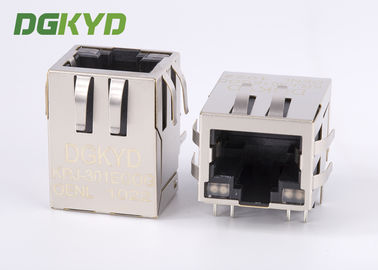

Shieded Cat6 RJ45 jack 8 pin network connector Integrated magnetics for Router

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated
  • Single port 1X1 Tab-Up RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement
  •  ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shielded:YES
  • Rohs compliant
  • Length:25.4mm
  • LEDS:YES

Shieded Cat6 RJ45 jack 8 pin network connector Integrated magnetics for Router 0Shieded Cat6 RJ45 jack 8 pin network connector Integrated magnetics for Router 1Shieded Cat6 RJ45 jack 8 pin network connector Integrated magnetics for Router 2

Applications:



Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

 transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,

DSL/ADSL and so on.



Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
