Surface mount shielded right angle ethernet rj45 connector 100 BASE - TX Y/G LED

Minimum Order Quantity : 1 piece Price : Please contact us to get the latest price.
Packaging Details : Tray in Carton Delivery Time : 10 days
Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram Supply Ability : 100K pcs/day
Place of Origin: DongGuan of China Brand Name: DGKYD
Certification: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Model Number: KRJ-060YGZEFKNL

Detail Information

Category: Modular Jacks/Plugs Component Type: PCB Jack
Magnetic: Yes Performance Category: 5 5E
High Light:

cat6 rj45 jack

,

cat6 connector rj45

,

Surface mount shielded rj45 connector

Product Description

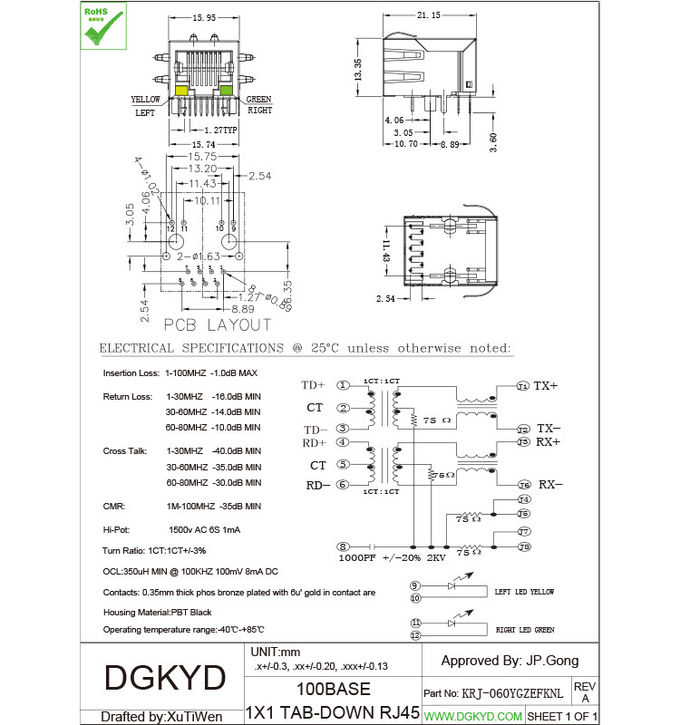

Surface Mount Ethernet Jack Cat5 RJ45 Connector With Right Angle

Part Number KRJ-060YGZEFKNL Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch Down
Filter With Filter LED Option Yellow / Green
Shielded Yes Applies To  Printed Circuit Board
Performance Speed 10/100 BASE-TX Grounding Options Panel Ground and PCB Ground
Port Configuration  Single Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 6u/15u/30u/50u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Housing Material  PBT Polyester Housing Color Black
Operation Temperature -40℃ to +85℃ UL Flammability Rating  UL 94V-0



Surface mount shielded right angle ethernet rj45 connector 100 BASE - TX Y/G LED 0Surface mount shielded right angle ethernet rj45 connector 100 BASE - TX Y/G LED 1Surface mount shielded right angle ethernet rj45 connector 100 BASE - TX Y/G LED 2
